Ducted Exhaust Ventilation Fan with Off-White Plastic Grille

VD-10Z4T5

Centrifugal fan with ball bearing motor. Off-white plastic grille. Air extraction: 29 l/s (105m3/h). Power consumption 10 watts. Noise level of 32dBA. Weight 2.2kg. Requires 100mm ducting and external grille (not supplied).

Discontinued Product

Features

Quiet Operation with low vibration for a better environment

Introducing the Mitsubishi Electric VD-10Z ducted exhaust fan with a ball bearing motor that is hard working for commercial applications yet quiet and stylish for domestic use. With a plastic grille the VD-10Z is ideal for bathrooms, laundries, washrooms and toilets.

All fans are continually rated with easy installation and low vibration.

Features:

  • Quiet operation with low vibration for a better living and working environment.
  • Centrifugal fan with ball bearing motor.
  • Energy efficient for increased savings.
  • Stylish design that blends well with surroundings.
  • Dual airtight shutters block external noise and air.
  • Ideal for domestic and commercial applications.

Designed for ease of installation:

  • Suitable for both lightweight steel frame ceilings and traditional roof cavities.
  • Less than 185mm in height for placement between floors.
  • Stepped pipe guide for simplified duct connection.
  • High static pressure for longer duct runs.

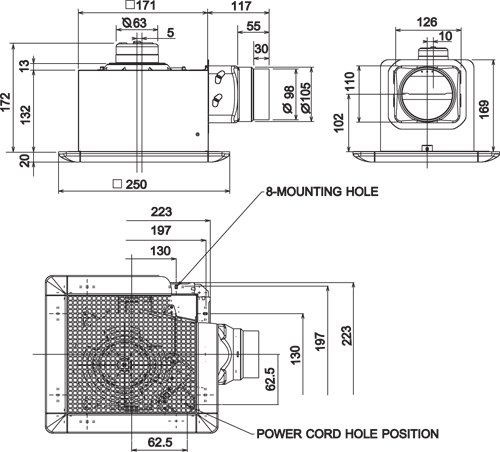

Dimensions

Note: Dimension unit (mm).
