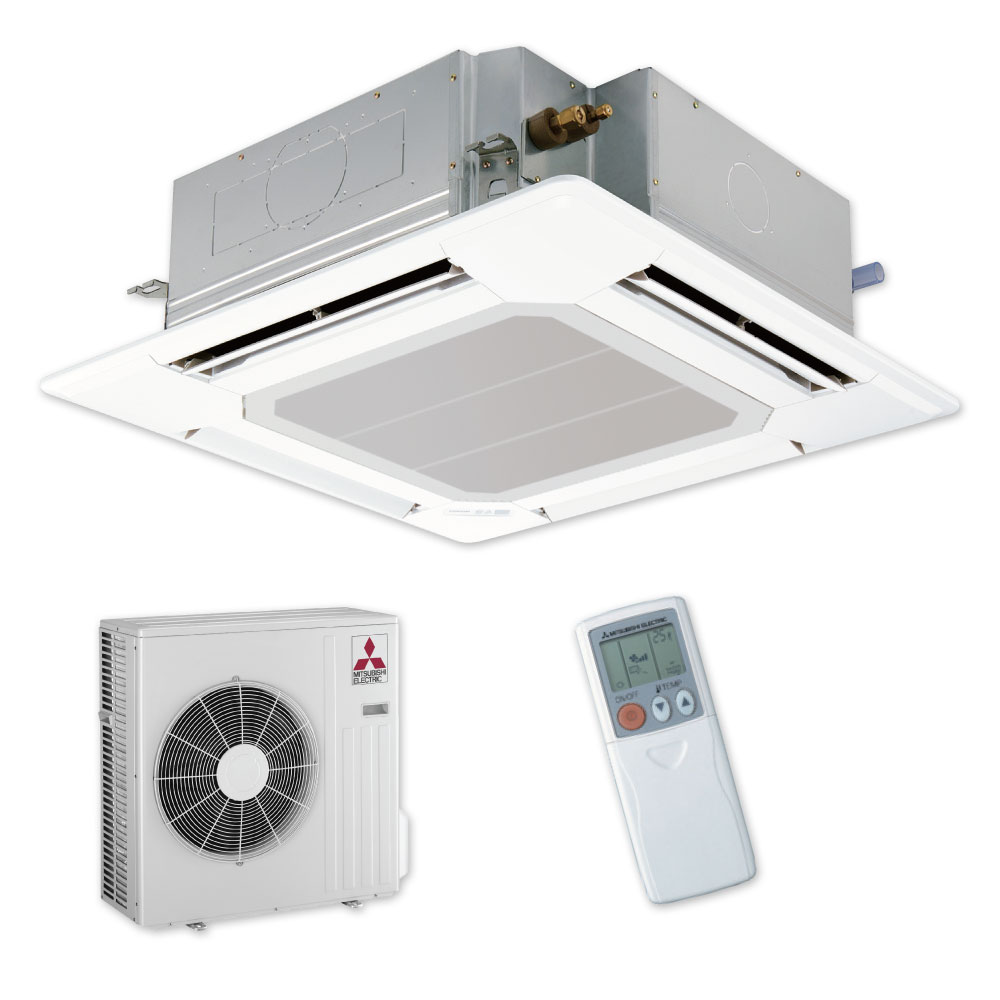

Deluxe PLA60 Cassette Heat Pump

PLA-RP60BA

Our Deluxe PLA60 cassette, has wide airflow, independent vane direction setting and wave airflow to provide consistent temperatures throughout the space you need to heat or cool. Perfect for larger residential rooms or office spaces. This model comes standard with an infrared remote controller.

Discontinued Product

Features

Optimum Airflow

With the ability to independently control each wide vane’s airflow, these units are perfect for both residential and office environments, providing controlled airflow to all corners of the space you need to heat or cool. Advanced control of the vanes called “swing airflow” provides even greater heat distribution, periodically moving vanes up and down.

Automatic Air Speed Adjustment

This setting automatically adjusts the air-speed to match the conditions of the room. At the start of heating/cooling, the airflow is set to high-speed to quickly heat or cool the room and once the desired temperature is reached, it decreases for efficient operation.

High and Low Ceiling Modes

Our PLA cassettes are equipped to adjust the airflow volume to match the room height. This ensures that you get comfortable temperature control throughout the room no matter how high your ceiling.

Specifications

PLA-RP60BAR2 - Power Inverter Ceiling Cassette

· Function: Cooling/Heating · Type: Single Split, Inverter
· Capacity - Cooling: 6.1 kW · Capacity - Heating: 6.9 kW
· Capacity - Cooling (min. - max.): 1.1 - 6.3 kW · Capacity - Heating (min. - max.): 0.9 - 8.0 kW
· Power input - Cooling: 1.87 kW · Power input - Heating: 1.97 kW
· EER / COP: 3.26 / 3.5
· Operation Range - Cooling: -15 / +43°C · Operation Range - Heating: -15 / +24°C
· Airflow (Lo-Mi1-Mi2-Hi, Litre/sec): 200 - 233 - 267 - 300 · Sound Level (Lo-Mi1-Mi2-Hi, dB(A)): 28 - 29 - 31 - 32
· Current Indoor - Cooling (Running): 0.36 A · Current Indoor - Heating (Running ): 0.29 A
· Power supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid pipe size (OD, mm): 6.35 · Gas pipe size (OD, mm): 15.88
· Max. pipe length (m): 30 · Max. pipe height (m): 30
· Panel Dimensions (WxDxH, mm): 950 x 950 x 35 · Panel Weight: 6kg
· Dimensions (WxDxH, mm): 840 x 840 x 258 · Weight: 23 kg

SUZ-KA60VAD2.TH-A - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -10 / +52°C · Operation Range - Heating: -15 / +24°C
· Sound Level - Cooling (dB(A)): 55 · Sound Level - Heating (dB(A)): 55
· Air volume - Cooling (Litre/sec): 970 · Air volume - Heating (Litre/sec): 820
· Power supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid pipe size (OD, mm): 6.35 · Gas pipe size (OD, mm): 15.88
· Max. pipe length (m): 30 · Max. pipe height (m): 30
· Dimensions (WxDxH, mm): 840 x 330 x 880 · Weight: 51 kg
