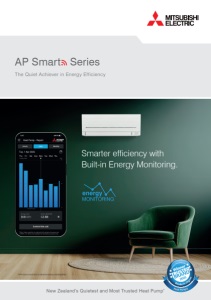

AP Smart Series The Quiet Achiever in Energy Efficiency New Zealand’s Quietest and Most Trusted Heat Pump* * AP25 indoor sound level on lowest fan setting in Heating Mode. Smarter efficiency with Built‑in Energy Monitoring.
AP Smart Series Built-in Wi-Fi Control Energy Monitoring Did you know a 1 degree change in temperature can reduce energy use by up to 10%? Mitsubishi Electric Wi-Fi Control with Energy Monitoring truly puts the power in your hands. Now you have the visibility to make more energy efficient choices when heating and cooling your home – no matter where you are. Smart Monitoring for Efficient Heating and Cooling All Year Round Using the Mitsubishi Electric Wi-Fi Control App, you can see at a glance on a monthly, daily and even hourly basis what the indicative energy consumption (kWh) and the indicative energy costs of running your heat pump looks like in dollars ($). View Energy Usage by Month, Day or Hour New Zealand’s quietest heat pump is now also NZ’s smartest! The AP Smart Series sets the new benchmark for energy efficient heating and cooling featuring Built-in Wi‑Fi Control Energy Monitoring for total control over your power use. Starting at just 18dBA*, the AP Smart Series is ideal for living rooms and bedrooms. * AP25 indoor sound level on lowest fan setting in Heating Mode. Keep track of energy use – even when the kids take over! Never Return to a Cold Home Again with Wi-Fi Control Pre-heat or cool a room no matter where you are. With Wi-Fi Control you’ll always arrive home to total comfort. New Zealand's Quietest Heat Pump!* Starting at an incredibly quiet 18dBA on its lowest fan speed, the AP25 indoor unit is New Zealand’s quietest high wall heat pump ever. It is ideal where quietness matters most, in bedrooms for even the coldest of winter nights. Furthermore, the addition of Night Mode means the outdoor operating noise level drops by a further 3dBA – for the perfect night’s sleep. View by Month View by Day View by Hour from 18dBA*
Dual Barrier Coating Maximises Efficient Performance The patented and world’s first Dual Barrier Coating from Mitsubishi Electric prevents dust and dirt from accumulating on the inner surface of the indoor unit; keeping your heat pump clean year-round. Dimensions (WxDxH): 798 x 219 x 299mm MSZ-AP25VGKD2 Heating Capacity: 3.2 kW | Cooling Capacity: 2.5 kW MSZ-AP35VGKD2 Heating Capacity: 3.7 kW | Cooling Capacity: 3.5 kW MSZ-AP42VGKD2 Heating Capacity: 5.4 kW | Cooling Capacity: 4.2 kW MSZ-AP50VGKD2 Heating Capacity: 6.0 kW | Cooling Capacity: 5.0 kW Dimensions (WxDxH): 1100 x 257 x 325mm MSZ-AP60VGKD2 Heating Capacity: 6.8 kW | Cooling Capacity: 6.0 kW MSZ-AP71VGKD2 Heating Capacity: 8.0 kW | Cooling Capacity: 7.1 kW MSZ-AP80VGKD2 Heating Capacity: 9.0 kW | Cooling Capacity: 7.8 kW * AP60/71/80 models only. Energy Efficient EcoCore Inverter Technology Superior energy efficiency is achieved by incorporating a large, high density heat exchanger, an advanced high efficiency fan motor and a nextgeneration inverter compressor that uses more efficient R32 refrigerant. Blue Fin Coating – Built to Withstand the Elements The heat exchanger of the outdoor unit has been treated with Blue Fin AntiCorrosion Treatment, slowing the corrosion process caused by salt and sulphur in the air especially in coastal and high sulphur areas. Horizontal Airflow The AP Smart Series eliminates uncomfortable draughts with Horizontal Airflow in Cooling Mode, by first spreading airflow evenly across the ceiling. Wide and Long Airflow* The Wide Airflow Mode enables the airflow direction to be adjusted from left to right and is ideal for open plan environments – ensuring every corner of the room is comfortable. The Long Airflow Mode extends airflow distance. Washable Air Purifying Filter The AP Smart Series is equipped with an Air Purifying Filter. This washable filter traps particles such as dust, pollen and other airborne contaminants, generating stable antibacterial and deodorising effects. The size of the threedimensional surface has been increased from previous models, enlarging the filter capture area. These features give the Air Purifying Filter better dust collection performance than conventional filters. Close-up of Air Purifying Filter Keeping key internal components like the heat exchanger, fan and internal duct clean is important for both home comfort and efficiency. Not only does dust and dirt buildup typically create unpleasant odours, it also forces a heat pump to work harder, which can result in significantly impaired energy efficiency. Dual Barrier Coating prevents dust and oil build-up on the interior of the heat pump for the ultimate in peace of mind, ease and comfort. With Dual Barrier Coating (after 10 years) Heat Exchanger Fan Air Duct No Dual Barrier Coating (after 10 years) Comparison of dirt on heat exchanger, fan and air duct. (Factory simulated in-house comparison.)
AP Smart Series Specifications QUICK GLANCE TYPE High Wall System SERIES AP Smart Series MODEL MSZ-AP25 MSZ-AP35 MSZ-AP42 MSZ-AP50 MSZ-AP60 MSZ-AP71 MSZ-AP80 REFRIGERANT R32 INDOOR UNIT MSZ-AP25VGKD2 MSZ-AP35VGKD2 MSZ-AP42VGKD2 MSZ-AP50VGKD2 MSZ-AP60VGKD2 MSZ-AP71VGKD2 MSZ-AP80VGKD2 OUTDOOR UNIT MUZ-AP25VG2 MUZ-AP35VG2 MUZ-AP42VG2 MUZ-AP50VG2 MUZ-AP60VG2 MUZ-AP71VG2 MUZ-AP80VG2 COOL 2.5kW 5.00 EER 19 dBA* 3.5kW 4.02 EER 19 dBA* 4.2kW 3.53 EER 26 dBA* 5.0kW 3.79 EER 28 dBA* 6.0kW 3.77 EER 29 dBA* 7.1kW 3.53 EER 30 dBA* 7.8kW 3.31 EER 30 dBA* HEAT 3.2kW 4.78 COP 18 dBA* 3.7kW 4.51 COP 19 dBA* 5.4kW 3.78 COP 26 dBA* 6.0kW 3.70 COP 28 dBA* 6.8kW 4.12 COP 29 dBA* 8.0kW 3.83 COP 30 dBA* 9.0kW 3.53 COP 30 dBA* ZERL STAR RATINGS (NZ) Cold Area 6.0 3.0 5.0 3 4.0 2.0 4.5 2.0 4.5 2.5 3.5 2.0 3.5 2.0 Avge Area‡ 5.5 3.0 4.5 3.5 4.0 2.5 4.0 2.5 4.0 2.5 3.0 2.5 3.0 2.5 Hot Area‡ 6.0 3.5 5.0 4.0 4.0 3.5 4.5 3.5 4.5 3.0 3.5 3.0 3.5 3.0 COOL Capacity Rated [kW] 2.5 3.5 4.2 5.0 6.0 7.1 7.8 Min-Max [kW] 1.1-3.6 1.1-4.1 0.9-4.8 1.4-6.2 1.4-7.3 2.0-8.7 2.0-9.2 Input Rated [kW] 0.50 0.87 1.19 1.32 1.59 2.01 2.36 EER/AEER 5.00 / 4.97 4.02 / 4.01 3.53 / 3.52 3.79 / 3.78 3.77 / 3.77 3.53 / 3.53 3.31 / 3.30 Indoor Sound Level Quiet [dBA] 19 19 26 28 29 30 30 Low-SHi2 [dBA] 24-31-38-44 24-31-38-45 29-35-40-46 33-39-44-49 37-41-45-48 37-41-45-49 37-41-45-53 Running Current (Rated) [A] 2.6 4.1 5.3 5.9 7.1 8.8 10.8 Air Volume In (SHi1) [L/s] 205 223 223 258 315 310 343 HEAT Capacity Rated [kW] 3.2 3.7 5.4 6.0 6.8 8.0 9.0 Min-Max [kW] 1.3-5.0 1.3-5.1 1.3-6.0 1.4-8.0 2.0-8.6 2.2-9.9 2.2-11.0 Input Rated [kW] 0.67 0.82 1.43 1.62 1.65 2.09 2.55 COP / ACOP 4.78 / 4.75 4.51 / 4.49 3.78 / 3.77 3.70 / 3.70 4.12 / 4.11 3.83 / 3.82 3.53 / 3.53 Indoor Sound Level Quiet [dBA] 18 19 26 28 29 30 30 Low-SHi2 [dBA] 25-31-38-42 25-31-38-45 29-35-40-46 33-38-43-48 37-41-45-48 37-41-45-51 37-41-45-51 Running Current (Rated) [A] 3.3 3.8 6.3 7.1 7.3 9.1 11.3 Air Volume In (SHi1) [L/s] 190 215 233 268 338 320 320 Controller Standard 7-Day Programmable Controller Optional Wired 7-Day Timer Optional: PAR Controller (Interface Required) Wi-Fi Built-in with Energy Monitoring Power Supply (Powered From Outdoor Unit) 230 V / Single Phase / 50 Hz Maximum Current [A] 7.0 7.1 9.9 14.0 14.0 16.4 16.5 Indoor Dimensions (WxDxH) [mm] 798 x 219 x 299 1,100 x 257 x 325 Weight [kg] 10.5 16 17 Outdoor Dimensions (WxDxH) [mm] 800 x 285 x 550 800 x 285 x 714 840 x 330 x 880 Weight [kg] 35 35 36 41 41 55 55 Sound Level - SPL³/Power (Cooling-Heating) [dBA] 46-49 / 59-59 50-50 / 64-64 51-52 / 65-65 54-56 / 69-69 55-57 / 69-69 56-55 / 69-69 56-55 / 69-69 Piping Diameter (Liquid/Gas) [mm] 6.35 / 9.52 6.35 / 9.52 6.35 / 9.52 6.35 / 12.7 6.35 / 12.7 6.35 / 12.7 6.35 / 12.7 Max. Length/Height† [m] 20 / 12 20 / 12 20 / 12 20 / 12 30 / 15 30 / 15 30 / 15 Chargeless Piping Length [m] 10 10 10 15 15 15 15 Operation Range Outdoor Cooling [˚C] -10 / 46 -10 / 46 -10 / 46 -10 / 46 -10 / 46 -10 / 46 -10 / 46 Heating [˚C] -15 / 24 -15 / 24 -15 / 24 -15 / 24 -15 / 24 -15 / 24 -15 / 24 Indoor Unit Colour White Learn more about the AP Smart Series ZERL = Zoned Energy Rating Label EER = Energy Efficiency Ratio COP = Coefficient of Performance AEER = Annual Energy Efficiency Ratio ACOP = Annual Coefficient of Performance SPL = Sound Pressure Level ¹ SHi = Super High ² Low–SHi = Low–Medium–High–Super High ³ SPL measured under rated operating frequency * Indoor Sound Levels rated at lowest fan speed. † Maximum length is inclusive of height differential i.e. (20/12) means the pipe can be 12m high and 8m across for a total length of 20m. ‡ Avge/Hot are Australia only. Rating Conditions (AS / NZS 3823). Cooling: Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB Heating: Indoor: 20°C DB Outdoor: 7°C DB, 6°C WB. PUBLISHED May 2025 For more information please visit our website or call our Customer Service Team. www.mitsubishi-electric.co.nz | 0800 784 382
