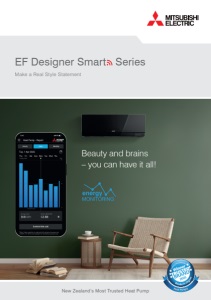

EF Designer Smart Series Make a Real Style Statement New Zealand’s Most Trusted Heat Pump Beauty and brains – you can have it all!
2 The EF Designer Smart Series features exceptional energy efficiency and Built-in Wi-Fi Control Energy Monitoring for total control over your power use. Elegant and slimline in design, these heat pumps are available in a choice of colours including Rich Black Diamond, Matte Silver or Pure White – so you can truly reflect your interior design style. EF Designer Smart Series Built-in Wi-Fi Control Energy Monitoring Did you know a 1 degree change in temperature can reduce energy use by up to 10%? Mitsubishi Electric Wi-Fi Control with Energy Monitoring truly puts the power in your hands. Now you have the visibility to make more energy efficient choices when heating and cooling your home – no matter where you are. Smart Monitoring for Efficient Heating and Cooling All Year Round Using the Mitsubishi Electric Wi-Fi Control App, you can see at a glance on a monthly, daily and even hourly basis what the indicative energy consumption (kWh) and the indicative energy costs of running your heat pump looks like in dollars ($). View Energy Usage by Month, Day or Hour View by Month View by Day View by Hour Never Return to a Cold Home Again with Wi-Fi Control Pre-heat or cool a room no matter where you are. With Wi-Fi Control you’ll always arrive home to total comfort. 7-Day Programmable Controller The built-in weekly timer allows you to program up to four time and temperature settings for each day of the week. The heat pump that knows best. No more wasted energy … just perfect comfort!
3 Dimensions (WxDxH): 885 x 195 x 299mm MSZ-EF25VGKDW/B/S Heating Capacity: 3.2 kW | Cooling Capacity: 2.5 kW MSZ-EF35VGKDW/B/S Heating Capacity: 4.0 kW | Cooling Capacity: 3.5 kW MSZ-EF42VGKDW/B/S Heating Capacity: 5.4 kW | Cooling Capacity: 4.2 kW MSZ-EF50VGKDW/B/S Heating Capacity: 5.8 kW | Cooling Capacity: 5.0 kW Why Limit Yourself to One Colour When You Can Choose from Three? One of the most rewarding aspects of interior design is being able to inject your own design personality through colour selection and accessorising. The Designer Smart Series takes this to the next level. Available in a range of contemporary colours including Pure White, Matte Silver and Rich Black Diamond – now you can blend in or stand out so you can truly reflect your interior design style. * EF25 indoor sound level on lowest fan setting in Cooling Mode. from 19dBA* Energy Efficient EcoCore Inverter Technology Superior energy efficiency is achieved by incorporating a large, high density heat exchanger, an advanced high efficiency fan motor and a nextgeneration inverter compressor that uses more efficient R32 refrigerant. Blue Fin Coating – Built to Withstand the Elements The heat exchanger of the outdoor unit has been treated with Blue Fin AntiCorrosion Treatment, slowing the corrosion process caused by salt and sulphur in the air especially in coastal and high sulphur areas. Quiet Operation The Designer Smart Series indoor units feature Silent Mode. When selected, this fan speed setting provides very quiet operation from as low as 19dBA* making the range ideal for bedrooms. Advanced Nano Platinum Filter The extra-large, washable 3D filter surface incorporates nanometre-sized platinum-ceramic particles designed to effectively collect fine dust particles, deodorise the air and eliminate bacteria at the same time. This level of advanced filtration is better at the collection of dust in comparison to conventional filters. NP Close-up of Advanced Nano Platinum Filter The Designer Smart Range with its distinctive contemporary, slim-line profile has been awarded the Prestigious Reddot Design Award 2015 in recognition for outstanding design quality. The international jury only confers this sought-after seal of quality to products that set themselves apart significantly from comparable products thanks to their excellent design.
EF Designer Smart Series Specifications PUBLISHED May 2025 For more information please visit our website or call our Customer Service Team. www.mitsubishi-electric.co.nz | 0800 784 382 Learn more about the Designer Smart Series QUICK GLANCE TYPE High Wall System SERIES EF Designer Smart Series MODEL MSZ-EF25 MSZ-EF35 MSZ-EF42 MSZ-EF50 REFRIGERANT R32 INDOOR UNIT MSZ-EF25VGKD MSZ-EF35VGKD MSZ-EF42VGKD MSZ-EF50VGKD OUTDOOR UNIT MUZ-EF25VGD MUZ-EF35VGD MUZ-EF42VGD MUZ-EF50VGD COOL 2.5kW 4.63 EER 19 dBA* 3.5kW 3.85 EER 21 dBA* 4.2kW 3.50 EER 28 dBA* 5.0kW 3.23 EER 30 dBA* HEAT 3.2kW 4.57 COP 21 dBA* 4.0kW 4.21 COP 21 dBA* 5.4kW 3.71 COP 28 dBA* 5.8kW 3.72 COP 30 dBA* ZERL STAR RATINGS (NZ) Cold Area 4.0 2.5 3.5 2.0 3.0 2.0 3.0 2.0 Avge Area‡ 4.0 2.5 3.5 2.5 3.0 2.5 3.0 2.5 Hot Area‡ 4.5 3.0 3.5 3.0 3.0 3.0 3.0 2.5 COOL Capacity Rated [kW] 2.5 3.5 4.2 5.0 Min-Max [kW] 0.9 - 3.4 1.1 - 4.0 0.9 - 4.6 1.4 - 5.4 Total Input Rated [kW] 0.54 0.91 1.20 1.55 EER/AEER 4.63 / 4.60 3.85 / 3.83 3.50 / 3.49 3.23 / 3.22 Indoor Sound Level Quiet [dBA] 19 21 28 30 Low-SHi2 [dBA] 23–29–36–42 24–30–36–42 31–35–39–43 33-36-40-43 Running Current (Rated) [A] 3.0 4.2 5.4 6.9 Air Volume In (SHi1) [L/s] 175 175 187 188 HEAT Capacity Rated [kW] 3.2 4.0 5.4 5.8 Min-Max [kW] 1.0–4.2 1.3–5.1 1.3–6.3 1.4–7.5 @-15°C [kW] - - - - Total Input Rated [kW] 0.70 0.95 1.46 1.56 COP / ACOP 4.57 / 4.55 4.21 / 4.20 3.71 / 3.70 3.72 / 3.71 Indoor Sound Level Quiet [dBA] 21 21 28 30 Low-SHi2 [dBA] 24-29-37-45 24-30-38-46 30-35-41-48 33-37-43-49 Running Current (Rated) [A] 3.5 4.4 6.5 7.1 Air Volume In (SHi1) [L/s] 198 212 220 243 Controller Standard 7-Day Programmable Controller Optional Wired 7-Day Timer Optional: PAR Controller (Interface Required) Wi-Fi Built-in with Energy Monitoring Power Supply (Powered From Outdoor Unit) 230 V / Single Phase / 50 Hz Maximum Current [A] 7.1 7.1 10.0 14.0 Indoor Dimensions (WxDxH) [mm] 885 x 195 x 299 Weight [kg] 11.5 Outdoor Dimensions (WxDxH) [mm] 800 x 285 x 550 800 x 285 x 714 Weight [kg] 31 34 35 40 Sound Level - SPL³/Power (Cooling-Heating) [dBA] 47-48 / 58-61 49-50 / 62-63 50-51 / 62-64 52-52 / 65-65 Piping Diameter (Liquid/Gas) [mm] 6.35 / 9.52 6.35 / 9.52 6.35 / 9.52 6.35 / 9.52 Max. Length/Height† [m] 20 / 12 20 / 12 20 / 12 30 / 15 Chargeless Piping Length [m] 7 7 7 7 Operation Range Outdoor Cooling [˚C] -10 / 46 -10 / 46 -10 / 46 -10 / 46 Heating [˚C] -15 / 24 -15 / 24 -15 / 24 -15 / 24 Indoor Unit Colour Black Diamond / Matte Silver / Pure White ZERL = Zoned Energy Rating Label EER = Energy Efficiency Ratio COP = Coefficient of Performance AEER = Annual Energy Efficiency Ratio ACOP = Annual Coefficient of Performance SPL = Sound Pressure Level ¹ SHi = Super High ² Low–SHi = Low–Medium–High–Super High ³ SPL measured under rated operating frequency * Indoor Sound Levels rated at lowest fan speed. † Maximum length is inclusive of height differential i.e. (20/12) means the pipe can be 12m high and 8m across for a total length of 20m. ‡ Avge/Hot are Australia only. Rating Conditions (AS / NZS 3823). Cooling: Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB. Heating: Indoor: 20°C DB Outdoor: 7°C DB, 6°C WB.
