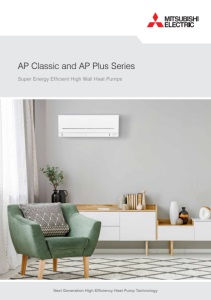

EcoCore AP Series Heat Pumps

Super Energy Efficient High Wall Heat Pumps AP Classic and AP Plus Series Next Generation High Efficiency Heat Pump Technology

EcoCore Series – AP Classic and AP Plus New Zealand's Quietest Heat Pump!* Starting at an incredibly quiet 18dBA on its lowest fan speed, the EcoCore Series AP25 indoor unit is New Zealand’s quietest high wall heat pump ever. It is ideal where quietness matters most, in bedrooms even on the coldest of winter nights. Furthermore, the addition of Night Mode means the outdoor operating noise level drops by a further 3dBA – for the perfect night’s sleep. The Secret to Quietness By making the heat exchanger 32% thinner† and designing the fan coil to be 22% larger† in comparison to previous models, pressure loss across the heat exchanger is minimised and air can now be moved across a larger fan surface. Add to this a new aerodynamically designed fan coil, and a new level of quietness has been achieved! Dual Barrier Coating Maximises Efficient Performance The patented and world’s first Dual Barrier Coating from Mitsubishi Electric prevents dust and dirt from accumulating on the inner surface of the indoor unit; keeping your heat pump clean year-round. Keeping key internal components like the heat exchanger, fan and internal duct clean is important for both home comfort and efficiency. Not only does dust and dirt buildup typically create unpleasant odours, it also forces a heat pump to work harder, which can result in significantly impaired energy efficiency. Dual Barrier Coating prevents dust and oil build-up on the interior of the heat pump for the ultimate in peace of mind, ease and comfort. The EcoCore Series AP Classic (with optional Wi-Fi) and AP Plus (with built-in Wi-Fi) High Wall Heat Pumps set a new standard in super energy efficient heating. Next-generation EcoCore Technology is designed to use less power than ever before. And starting at just 18dBA*, it's NZ's quietest – ideal for living rooms and bedrooms! * The EcoCore Series AP25 indoor sound level on lowest fan setting in Heating Mode. † Compared to MSZ-GL Series. Comparison of dirt on heat exchanger, fan and air duct. (Factory simulated in-house comparison.) No Dual Barrier Coating (after 10 years) With Dual Barrier Coating Heat Exchanger Fan Air Duct Heat Exchanger 32% THINNER† Fan Coil 22% LARGER† from 18dBA*

Dimensions (WxDxH): 798 x 219 x 299mm MSZ-AP25VG(K)D Heating Capacity: 3.2 kW | Cooling Capacity: 2.5 kW MSZ-AP35VG(K)D Heating Capacity: 3.7 kW | Cooling Capacity: 3.5 kW MSZ-AP42VG(K)D Heating Capacity: 5.4 kW | Cooling Capacity: 4.2 kW MSZ-AP50VG(K)D Heating Capacity: 6.0 kW | Cooling Capacity: 5.0 kW Dimensions (WxDxH): 1100 x 257 x 325mm MSZ-AP60VG(K)D Heating Capacity: 6.8 kW | Cooling Capacity: 6.0 kW MSZ-AP71VG(K)D Heating Capacity: 8.0 kW | Cooling Capacity: 7.1 kW MSZ-AP80VG(K)D Heating Capacity: 9.0 kW | Cooling Capacity: 7.8 kW Energy Efficient EcoCore Inverter Technology Superior energy efficiency is achieved by incorporating a large, high density heat exchanger, an advanced high efficiency fan motor and a next-generation inverter compressor that uses more efficient R32 refrigerant. More Environmentally Friendly R32 Refrigerant With a global warming potential that is 30% lower compared to older refrigerants such as R410A, next-generation R32 refrigerant has a much lower environmental impact. Furthermore, zero ozone depleting R32 is easier to reuse and recycle. Blue Fin Coating – Built to Withstand the Elements The heat exchanger of the outdoor unit has been treated with Blue Fin AntiCorrosion Treatment, slowing the corrosion process caused by salt and sulphur in the air especially in coastal and high sulphur areas. Horizontal Airflow The EcoCore AP Series eliminates uncomfortable draughts with Horizontal Airflow in Cooling Mode, by first spreading airflow evenly across the ceiling. Wide and Long Airflow* The Wide Airflow Mode enables the airflow direction to be adjusted from left to right and is ideal for open plan environments – ensuring every corner of the room is comfortable. The Long Airflow Mode extends airflow distance. * AP60/71/80 models only. Washable Air Purifying Filter The EcoCore AP Series is equipped with an Air Purifying Filter. This washable filter traps particles such as dust, pollen and other airborne contaminants, generating stable antibacterial and deodorising effects. The size of the three-dimensional surface has been increased from previous models, enlarging the filter capture area. These features give the Air Purifying Filter better dust collection performance than conventional filters. Optional Plasma Quad Connect for Cleaner, Healthier Air Designed to integrate with your existing EcoCore AP Series Heat Pump, this high-performance two-stage advanced air filtration module, cleans and minimises dust and other allergens for better indoor air quality, all year round. Never Return to a Cold Home Again with Wi-Fi Control Pre-heat or cool a room no matter where you are. With Wi-Fi Control you'll always arrive home to total comfort. Wi-Fi Control is built-in to the AP Plus Series and available as an optional upgrade with the AP Classic Series. Close-up of Air Purifying Filter Advanced Air Filtration Optional AP Classic AP Plus AP Classic | AP Plus

AP Classic and AP Plus Series Specifications EER = Energy Efficiency Ratio COP = Coefficient of Performance AEER = Annual Energy Efficiency Ratio ACOP = Annual Coefficient of Performance SPL = Sound Pressure Level ¹ SHi = Super High ² Low–SHi = Low–Medium–High–Super High ³ SPL measured under rated operating frequency * Sound Levels rated at lowest fan speed. † Maximum length is inclusive of height differential i.e. (20/12) means the pipe can be 12m high and 8m across for a total length of 20m. ‡ Avge/Hot are Australia only. Rating Conditions (AS / NZS 3823). Cooling: Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB Heating: Indoor: 20°C DB Outdoor: 7°C DB, 6°C WB. QUICK GLANCE TYPE High Wall System SERIES AP Classic Series and AP Plus Series MODEL MSZ-AP25 MSZ-AP35 MSZ-AP42 MSZ-AP50 MSZ-AP60 MSZ-AP71 MSZ-AP80 REFRIGERANT R32 INDOOR UNIT MSZ-AP25VG(K)D MSZ-AP35VG(K)D MSZ-AP42VG(K)D MSZ-AP50VG(K)D MSZ-AP60VG(K)D MSZ-AP71VG(K)D MSZ-AP80VG(K)D OUTDOOR UNIT MUZ-AP25VG MUZ-AP35VG MUZ-AP42VG MUZ-AP50VG MUZ-AP60VG MUZ-AP71VG MUZ-AP80VG COOL 2.5kW 5.00 EER 19 dBA* 3.5kW 4.02 EER 19 dBA* 4.2kW 3.53 EER 26 dBA* 5.0kW 3.79 EER 28 dBA* 6.0kW 3.77 EER 29 dBA* 7.1kW 3.53 EER 30 dBA* 7.8kW 3.31 EER 30 dBA* HEAT 3.2kW 4.78 COP 18 dBA* 3.7kW 4.57 COP 19 dBA* 5.4kW 3.78 COP 26 dBA* 6.0kW 3.70 COP 28 dBA* 6.8kW 4.07 COP 29 dBA* 8.0kW 3.83 COP 30 dBA* 9.0kW 3.53 COP 30 dBA* ZERL STAR RATINGS (NZ) Cold Area 5.5 3.0 5.0 2.5 4.0 2.0 4.0 2.0 4.0 2.0 3.5 2.0 3.5 2.0 Avge Area‡ 5.0 3.0 4.5 3.0 3.5 2.5 4.0 2.5 3.5 2.5 3.0 2.5 3.0 2.5 Hot Area‡ 5.5 3.5 5.0 3.5 4.0 3.0 4.0 3.5 4.0 3.0 3.5 3.0 3.5 3.0 COOL Capacity Rated [kW] 2.5 3.5 4.2 5.0 6.0 7.1 7.8 Min-Max [kW] 1.1-3.6 1.1-4.1 0.9-4.8 1.4-6.2 1.4-7.3 2.0-8.7 2.0-9.2 Input Rated [kW] 0.50 0.87 1.19 1.32 1.59 2.01 2.36 EER/AEER 5.00 / 4.97 4.02 / 4.01 3.53 / 3.52 3.79 / 3.78 3.77 / 3.77 3.53 / 3.53 3.31 / 3.30 Indoor Sound Level Quiet [dBA] 19 19 26 28 29 30 30 Low-SHi2 [dBA] 24-31-38-44 24-31-38-45 29-35-40-46 33-39-44-49 37-41-45-48 37-41-45-49 37-41-45-53 Running Current (Rated) [A] 2.6 4.1 5.3 5.9 7.1 8.8 10.8 Air Volume In (SHi1) [L/s] 205 223 223 258 315 310 343 HEAT Capacity Rated [kW] 3.2 3.7 5.4 6.0 6.8 8.0 9.0 Min-Max [kW] 1.3-5.0 1.3-5.1 1.3-6.0 1.4-8.0 2.0-8.6 2.2-9.9 2.2-11.0 Input Rated [kW] 0.67 0.81 1.43 1.62 1.67 2.09 2.55 COP / ACOP 4.78 / 4.75 4.57 / 4.55 3.78 / 3.77 3.70 / 3.70 4.07 / 4.06 3.83 / 3.82 3.53 / 3.53 Indoor Sound Level Quiet [dBA] 18 19 26 28 29 30 30 Low-SHi2 [dBA] 25-31-38-42 25-31-38-45 29-35-40-46 33-38-43-48 37-41-45-48 37-41-45-51 37-41-45-51 Running Current (Rated) [A] 3.3 3.8 6.3 7.1 7.4 9.1 11.3 Air Volume In (SHi1) [L/s] 190 215 233 268 338 320 320 Controller Standard 7-Day Programmable Controller Optional Wired 7-Day Timer Optional: PAR Controller (Interface Required) Wi-Fi Optional upgrade for AP Classic Series / Built-In to AP Plus Series Power Supply (Powered From Outdoor Unit) 230 V / Single Phase / 50 Hz Maximum Current [A] 7.0 7.1 9.9 14.0 14.0 16.4 16.5 Indoor Dimensions (WxDxH) [mm] 798 x 219 x 299 1100 x 257 x 325 Weight [kg] 10.5 16 17 Outdoor Dimensions (WxDxH) [mm] 800 x 285 x 550 800 x 285 x 714 840 x 330 x 880 Weight [kg] 35 35 36 41 41 55 55 Sound Level - SPL³/Power (Cooling-Heating) [dBA] 46-49 / 59-59 50-50 / 64-64 51-52 / 65-65 54-56 / 69-69 55-57 / 69-69 56-55 / 69-69 56-55 / 69-69 Piping Diameter (Liquid/Gas) [mm] 6.35 / 9.52 6.35 / 9.52 6.35 / 9.52 6.35 / 12.7 6.35 / 12.7 6.35 / 12.7 6.35 / 12.7 Max. Length/Height† [m] 20 / 12 20 / 12 20 / 12 20 / 12 30 / 15 30 / 15 30 / 15 Chargeless Piping Length [m] 10 10 10 15 15 15 15 Operation Range Outdoor Cooling [˚C] -10 / 46 -10 / 46 -10 / 46 -10 / 46 -10 / 46 -10 / 46 -10 / 46 Heating [˚C] -15 / 24 -15 / 24 -15 / 24 -15 / 24 -15 / 24 -15 / 24 -15 / 24 Indoor Unit Colour White For more information please visit our website or call our Customer Service Team. www.mitsubishi-electric.co.nz | 0800 784 382 PRINTED Apr 2022
