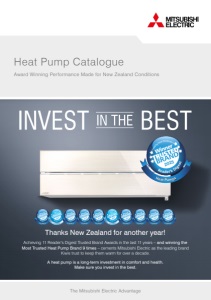

Quietly Superior Heat Pumps Heat Pump Catalogue Superior Performance Made for New Zealand Conditions
Superior Heat Pump Technology – Designed in Japan for New Zealand Conditions Since releasing our first wall mounted split system room heat pump featuring a line flow fan in 1968, Mitsubishi Electric is an established world leader in heat pump technology ever since. Staying at the forefront of technology is of utmost importance to Mitsubishi Electric. Our commitment to rigorous factory testing and continuous investment in R&D ensures products are of the highest quality and feature superior technology. Designed for Heating While most heat pumps are designed to cool, ours start with heating in mind. Mitsubishi Electric Heat Pumps will keep you cool in the summer, but with a focus on heating, they excel at what New Zealanders expect them to do; keep you warm throughout the winter. Buying Quality Saves Money in the Long Run While buying a budget friendly product may seem cost-effective upfront, those items often end up wearing out or breaking long before their time. Investing in a higher quality product however, is likely to last and save you money in the long run. As a heat pump is likely to be used often, it makes sense to purchase a quality brand. This will give you the peace of mind that over time, it will not require as much maintenance or earlier than anticipated replacement. Helping Create Warmer, Drier and Healthier Homes Extensive research has shown a link between cold, damp and mouldy homes and negative health outcomes, particularly for illnesses such as asthma and cardiovascular conditions. A heat pump is one of the most energy efficient appliances to combat this. Furthermore, specific models in our range feature some of the most advanced filtration systems available, making them ideal for those suffering from asthma or allergies. Nationwide Trained Specialist Installation Network Mitsubishi Electric Heat Pumps are installed through an extensive network of trained specialist dealers. This ensures you are supported with a superior level of product and installation quality. Comprehensive 5 Year Warranty Peace of mind is assured with your choice of Mitsubishi Electric Heat Pumps – supported by a comprehensive 5 year parts and labour warranty. Invest in the Best Mitsubishi Electric is a market leader in energy efficient home comfort solutions. Our commitment to rigorous factory testing and continuous investment in R&D ensures our heat pumps have become more durable, less costly to operate, quieter and easier to install and maintain. For New Zealand specifically, it has led to industry-leading products being introduced that perform exceptionally well in our harsh and varied climate throughout the seasons. No wonder so many New Zealanders trust and rely on Mitsubishi Electric engineering to keep them warm when it matters most. Quality you can rely on: • All units line tested • Performance tested • 800 hour heat stress test • 2000 hour endurance test
The Mitsubishi Electric Advantage .............................................................. 2 Since releasing our first wall mounted split system room heat pump featuring a line flow fan in 1968, Mitsubishi Electric has been a world leader in heat pump technology ever since. Our commitment to rigorous factory testing and continuous investment in R&D ensures products are of the highest quality and feature superior technology. New Zealand's Quietest Heat Pumps .......................................................... 3 HyperCore Guaranteed Heating ............................................................. 4–5 Wi-Fi Control – Now Voice Control Compatible ....................................... 6–7 Standard GS Series ............................................ 8–9 High Wall System EcoCore AP Series .......................................... 10–13 High Wall System Large Capacity AS90 ....................................... 14–15 High Wall System EcoCore Designer EF Series ........................... 16–17 High Wall System Black Diamond LN Series ................................ 18–21 High Wall System RapidHeat KW Series ..................................... 22–23 Floor Console System MLZ Series ...................................................... 24–25 Ceiling Cassette System SLZ Series ....................................................... 26–27 Ceiling Cassette System Whole Home Solutions ....................................................................... 28–31 If you're wanting total home comfort to heat or cool multiple rooms, then these heat pump systems will cater to your needs. Options range from OmniCore Multi Room Systems (one outdoor heat pump running multiple indoor units) to discreet Ducted Systems. Plasma Quad Connect ........................................................................ 32–33 Lossnay Fresh Air Heat Recovery Ventilation ..................................... 34–35 Controllers............................................................................................. 36–37 Specifications ....................................................................................... 38–44 Heat Pump Selection Guide ...................................................................... 45 Contents 1
Our Commitment to Sustainability and Energy Efficiency Since 1988, under its environmental Vision 2050 framework, Mitsubishi Electric strives for the best and the most environmentally friendly use of energy in buildings by developing zero or low-carbon technologies that consume the least amount of energy with minimal environmental impact. More Environmentally Friendly R32 Refrigerant Next-generation R32 refrigerant has a global warming potential that is 30% lower compared to older refrigerants such as R410A. Furthermore, zero ozone depleting R32 is easier to reuse and recycle. Energy Efficient EcoCore Inverter Technology Superior energy efficiency is achieved by incorporating a large, high density heat exchanger, an advanced high efficiency fan motor and a next-generation inverter compressor that uses more efficient R32 refrigerant. Dual Barrier Coating Maximises Efficient Operation Patented Dual Barrier Coating prevents dust and dirt from accumulating on key internal components like the heat exchanger, the fan and the internal duct. Not only does dust and dirt build up typically create unpleasant odours, but it also forces a heat pump to work harder, which can result in significantly impaired energy efficiency. Energy Saving i-See Sensor This intelligent sensor continuously takes a thermal scan of the room and splits it into 752 three-dimensional zones, measuring the temperature in each zone to detect exactly where people are in a room and direct heating or cooling only where it is needed, maximising energy efficiency. Better Health and Wellbeing with Advanced Air Filtration We spend up to 80% of our time inside and as such, good indoor air quality is paramount to our well-being. This is why Mitsubishi Electric has developed advanced air filtration technology to help provide homeowners with cleaner, healthier air all year round. Available built-in as standard or as an optional extra, advanced air filtration is available in most models across the range. Low Standby Power Most models across our range feature our cutting-edge power reduction technology and has seen the standby power reduce to only 1W. This is a reduction of around 80% on the allowable 5W standby power maximum. Be Smart and Energy Efficient with Wi-Fi Control Mitsubishi Electric Wi-Fi Control offers more than being able to simply pre-heat or pre-cool rooms before you arrive home. Forgot to turn off your heat pump? Heat pumps mistakenly left running can quickly be identified at a glance and simply turned off no matter where you are, saving you from nasty surprises on your power bill! The Mitsubishi Electric Advantage FILTRATION 2
Quietness on All Fan Speeds Some manufacturers are happy for their heat pumps to operate quietly only on their lowest fan setting. Our heat pumps are designed to work differently, giving you quietly superior comfort on all fan speeds. * MSZ-AP25 and MFZ-KW25/35/42 indoor sound level on lowest fan speed in Heating Mode. New Zealand's Quietest Heat Pumps Mitsubishi Electric consistently produces heat pumps which are not only feature-rich and efficient, but also very, very quiet. We recognise that noise affects comfort, so we constantly work to ensure our heat pumps are as quiet as possible. Starting from just 18dBA*, our high wall and floor console indoor units are unrivalled for quietness – because we want you to feel the warmth, not hear it! How are Mitsubishi Electric Heat Pumps Quieter? Our quest for quietness begins at factory level. Our heat pumps are subjected to rigorous testing at our confidential sound testing facility, with sound ratings then independently certified. The Secret to Quietness Fan Design Our larger fan diameter enables the motor to run at a slower speed while maintaining the same air volume. Smaller fans have to spin faster to move more air, creating more noise as air passes over the fan tips. Coil Design The larger surface area of our coils enables the indoor unit to maintain a higher temperature. As a result, less air needs to be passed across the coil to achieve the same indoor temperature; less air means less noise. Airflow Our larger air inlet duct allows air to flow freely, reducing noise as it leaves the heat pump. Think of whistling; it is pretty hard to whistle when your mouth is open wide – the same principle applies here. Indoor Unit Our indoor unit casing has been designed to be robust, ensuring minimal noise is created when operating, i.e. no rattling or shaking. Increase in Noise Level Even a small decibel increase impacts the level of sound you hear, so noise levels of any appliance are important. Sound exposure, measured in decibels (dBA), reflects pressure on your eardrum and grows exponentially; every 10dBA increase doubles the audible sound level. 0% 1 dBA 3 dBA 6 dBA 10 dBA 40% 80% 120% 7% 23% 52% 100% from 18dBA* Noise Level Comparison 0dBA 20dBA 40dBA 60dBA 80dBA 18dBA – NZ's Quietest Indoor Sound Level* Breathing Rustling leaves Library interior Dishwasher Average street traffic Subway car interior 3
Guaranteed Heating, Even on the Coldest Days Guaranteed Full Rated Heating Capacity Mitsubishi Electric HyperCore Technology is specifically designed to ensure its full rated capacity is produced, on all those cold frosty days. In fact, we guarantee this right down to -15°C! It’s our promise that no matter where you live, if you experience frosty winter days, it will give you peace of mind that you will get all the heat you paid for whilst feeling the warmth when it matters most. As the graph (above) shows, even though both heat pumps are rated to provide 6kW of heat, their performance differs greatly as the temperature drops. While the standard heat pump produces less heat, the HyperCore LN50 model continues to deliver the full 6kW you paid for. The result? Your room heats up fast and stays warm when you need it most. Advanced Defrost Logic When temperatures drop below zero degrees, ice will build up on the outdoor unit of any heat pump. How the heat pump reacts to this determines how effective it will be in providing heat to your home. To remove the ice build-up the heat pump will need to go into Defrost Mode. During this time the heat pump will not be delivering heat into your home. HyperCore’s Defrost Logic has been fine-tuned to extend the period in-between defrost periods and optimise its heating performance. Did you know ordinary heat pumps start to produce less heat below 7°C? The reduction in heat output is especially noticeable when temperature drops below zero. This is because at these low temperature conditions ordinary heat pumps can really struggle to cope. Ambient Temperature °C AMBIENT TEMPERATURE vs HEAT DELIVERY Kilowatt Heat Output MSZ-LN50 HyperCore® 6kW Heating High Wall Heat Pump STANDARD Inverter 6kW Heating High Wall Heat Pump * Please note that the Black Diamond Series MSZ-LN60VGV/B/R does not feature HyperCore Technology. "HyperCore heat pumps guarantee full rated heating capacity right down to -15°C." 4
9 53 82 41 67 86 158 119 95 30 62 10 80 93 51 45 This map shows just how many ground frost days there are right across the country on average during the year. In these low temperature conditions, the performance of a normal heat pump deteriorates. HyperCore Technology however, continues to provide the maximum level of energy efficient heating output. The result? Your room heats up fast and stays warm when you need it most. Mean number of days per year of ground frost according to the NIWA website. Ground frost occurs when the air at ground level is chilled below freezing point. HyperCore Heat Pump Models Our Black Diamond LN High Wall Heat Pump 2.5kW – 5.0kW models come standard with HyperCore Technology. Our RapidHeat KW Floor Console Range includes a 5.0kW and a 6.1kW model with optional HyperCore Technology. NZ Median Annual Average Temperature Map reproduced with permission from NIWA. 5
Not Just for When You’re Away Mitsubishi Electric Wi-Fi Control offers more than being able to simply pre-heat or pre-cool rooms before you arrive home. Wi-Fi Control opens up a new world of truly personalised comfort. Effectively replacing your traditional heat pump remote, Wi-Fi Control gives you the freedom to manage your home environment regardless of where you are. A Perfect Night’s Sleep Now you can continue to monitor and control your heat pump from the comfort of your couch. Off to the bedroom in half an hour but not sure how cold it is? Wi-Fi Control tells you the actual bedroom temperature so you can pre-heat or pre-cool your bedroom remotely for a perfect night’s sleep. Be Smart, Be Efficient Forgot to turn off your heat pump? Heat pumps mistakenly left running can be quickly identified at a glance and simply turned off, no matter where you are. A Warm Wake-Up on Frosty Mornings Wi-Fi Control is also great for pre-heating your living room before you have to get up in the morning. It will make those early frosty morning starts just that little bit easier to face. Intelligent Central Control Mitsubishi Electric Wi-Fi Control is not limited to only managing one heat pump at a time. It truly is an intelligent multitasker. With the purchase of additional interfaces, multiple indoor units can now be seamlessly monitored and controlled. Simple yet effective centralised control at your fingertips. Multiple Locations, One App Mitsubishi Electric Wi-Fi Control gives you the ability to control the heating and cooling needs of multiple units not just in the same home or building, but across a number of different locations. Your home, a holiday home and the office – it can all be controlled and customised through one app. Furthermore, you can now Group Control multiple units all at once for consistent comfort. Mitsubishi Electric Wi-Fi Control Wi-Fi Control gives you the freedom to manage your heat pump(s) through your smart phone, tablet or online account, no matter where you are. On the way home, running late, coming home early, or even when you’re in a different country, Wi-Fi Control offers innovative real time management to suit your lifestyle. Now you’ll always arrive home to total comfort regardless of what New Zealand’s unpredictable weather is doing outside! 6
Advanced Temperature Management with Rule Setting Because Wi-Fi Control reflects the real-time room temperature at any time, the unique rule setting functionality allows you to customise a minimum and maximum temperature range. The result – the perfect temperature is maintained for total comfort all night long. Set Room Temperature Limits Wi-Fi Control is ideal for families with children. Imagine no longer needing to physically walk down to each individual bedroom to check the temperature and turn a heat pump on or off using the handheld remotes, potentially interrupting the sleep of children. Simply apply a min./max. temperature rule and let Wi-Fi Control do the rest. Optimised Energy Saving with Ducted Systems When connected to a compatible Mitsubishi Electric Ducted System complete with optional Mitsubishi Electric Zone Control, Wi-Fi Control unlocks expanded functionality and interaction to deliver the very best in advanced energy optimisation. Now you can control and monitor which areas/ zones your ducted heat pump is controlling in real time from absolutely anywhere. Meanwhile, overall energy savings can be optimised at the touch of a button to ensure heat energy is directed only to where it is needed most. You can edit an existing rule or create a new one. Zone Control integration for Ducted Systems. Whether as an optional upgrade or built-in, Mitsubishi Electric Wi‑Fi Control is now Amazon Alexa and Google Home enabled. Take your comfort to the next level and enjoy hands-free heat pump control. Cooking dinner or playing with the kids? Now you can control your heat pump without the need to lift a finger, allowing you to focus on the more important things. Now Voice Control Compatible* * For voice control you will need a Smart Speaker/Display/Assistant compatible with Amazon Alexa or Google Home. 7
Standard GS Series High Wall System The Standard GS Heat Pump Series offers real value while delivering energy efficient heating and cooling. Superior heat pump technology, designed in Japan for New Zealand conditions. Close-up of Air Purifying Filter Classic Design Meets Superior Quality and Efficiency The Standard GS Series Heat Pump offers real value while delivering exceptional product quality, reliability and energy efficient heating and cooling. Combining a classic neutral design with superior energy saving features, the GS Series is the perfect heat pump for where it matters most – in living rooms and bedrooms. Home Comfort Your Way - Optional Upgrades for Every Lifestyle With a host of optional upgrades, from Wi-Fi Control to Plasma Quad Connect highperformance air filtration, the Standard GS Series can adapt to fit your lifestyle. Next-Generation R32 Technology Superior energy efficiency is achieved by incorporating a large, high-density heat exchanger, an advanced high-efficiency fan motor and a next-generation compressor using the latest super efficient and more environmentally friendly R32 refrigerant. Filtration for Cleaner Air The standard air purifying filter traps dust, pollen and other airborne contaminants while the optional washable Anti-Allergy Enzyme Filter effectively breaks down harmful microbes such as bacteria, mould and dust mites. 8
Econo Cool Function This intelligent temperature control feature adjusts the airflow distributed in the room depending on the air outlet temperature. Temperature settings can be raised by 2°C without any loss of in-room comfort. That's equal to a gain of up to 20% in energy efficiency. Vertical Swing Vane Airflow The Vertical Swing Vane function enables airflow direction to be adjusted up, down or set to Swing Mode – ensuring every corner of the room is comfortable. Blue Fin Coating – Built to Withstand the Elements The heat exchanger of the outdoor unit has been treated with Blue Fin AntiCorrosion Treatment, slowing the corrosion process caused by salt and sulphur in the air especially in coastal and high sulphur areas. 12 Hour Programmable Controller With an easy-to-read display and large buttons, the hand-held 12 Hour Programmable Controller is designed to give you simplified control of your Standard GS Series High Wall. Because the controller removes the complicated and focuses on the operating functions that really matter, whether you are tech savvy or not, you can rest assured comfort will always be at your fingertips. Optional Wall Mounted PAR 7-Day Controller The optional wall mounted controller features a built-in weekly timer, allowing you to program up to four time and temperature settings for each day of the week. You can now return to comfort without having to manually adjust the temperature. Perfect for anyone with a busy lifestyle, the 7-Day Controller is a great way to regulate your energy usage without compromising on comfort. Optional Wi-Fi Control! Never Return to a Cold Home Again Now you can pre-heat or cool a room no matter where you are. On the way home, running late, or in a different country, with optional Wi-Fi Control* you'll always arrive home to total comfort. Wi-Fi Control is Amazon Alexa and Google Home enabled so you can take your comfort to the next level and enjoy hands-free heat pump control. See pages 6–7 for more details on Wi-Fi Control. Optional Plasma Quad Connect for Cleaner, Healthier Air Designed to integrate with your existing Standard GS Series Heat Pump, this high-performance two-stage advanced air filtration module, cleans and minimises dust and other allergens for better indoor air quality, all year round. See pages 32–33 for more details on Plasma Quad Connect. * Wi-Fi adapter must be mounted externally. Advanced Air Filtration Optional Dimensions (WxDxH): 799 x 232 x 290mm MSZ-GS25VFD Heating Capacity: 3.1 kW | Cooling Capacity: 2.5 kW MSZ-GS35VFD Heating Capacity: 3.7 kW | Cooling Capacity: 3.5 kW Dimensions (WxDxH): 923 x 250 x 305mm MSZ-GS50VFD Heating Capacity: 5.5 kW | Cooling Capacity: 5.0 kW MSZ-GS60VFD Heating Capacity: 6.6 kW | Cooling Capacity: 6.0 kW Dimensions (WxDxH): 1100 x 238 x 325mm MSZ-GS71VFD Heating Capacity: 8.0 kW | Cooling Capacity: 7.1 kW MSZ-GS80VFD Heating Capacity: 9.0 kW | Cooling Capacity: 7.8 kW 9
EcoCore Series – AP Mini The AP Mini High Wall Heat Pump brings leading-edge technology and features in New Zealand's smallest† high wall indoor unit. The perfect solution for bedrooms or small rooms where space is at a premium. Pint-sized but big on performance, the AP Mini is packed with features that maximise energy efficiency. New Zealand's Smallest† High Wall Indoor Unit Specifically designed where space is at a premium, the 250mm high by 760mm wide footprint makes it ideal for positioning above doorways in bedrooms and home offices. Now smaller spaces no longer need to miss out on year-round comfort. Small Enough to Fit Above Doorways With a 16.4%* size reduction in height and 5% reduction in width when compared to the bigger EcoCore AP 25-50 models, they can even be installed in very tight places that would traditionally not have been possible such as above doorways. Energy Efficient EcoCore Inverter Technology Superior energy efficiency is achieved by incorporating a large, high density heat exchanger, an advanced high efficiency fan motor and a next-generation inverter compressor that uses more efficient R32 refrigerant. More Environmentally Friendly R32 Refrigerant With a global warming potential that is 30% lower compared to older refrigerants such as R410A, next-generation R32 refrigerant has a much lower environmental impact. Furthermore, zero ozone depleting R32 is easier to reuse and recycle. AP MINI SIZE COMPARISON AP25/35/42/50 AP20 Mini *Indoor unit height compared to the MSZ-AP25/35/42/50 range. †Indoor unit total volume size of 0.034m3. Meet the Mighty Mini High Wall System 10
Dimensions (WxDxH): 760 x 178 x 250mm MSZ-AP20VGD Heating Capacity: 2.5 kW | Cooling Capacity: 2.0 kW Dual Barrier Coating Maximises Efficient Performance The patented and world’s first Dual Barrier Coating from Mitsubishi Electric prevents dust and dirt from accumulating on the inner surface of the indoor unit. By keeping your heat pump clean year-round you can rest assured your heat pump will always perform at its best. Washable Air Purifying Filter The AP Mini is equipped with an Air Purifying Filter. This washable filter traps particles such as dust, pollen and other airborne contaminants, generating stable antibacterial and deodorising effects. The size of the three-dimensional surface has been increased from previous models, enlarging the filter capture area. These features give the Air Purifying Filter better dust collection performance than conventional filters. Horizontal Airflow The AP Mini eliminates uncomfortable draughts with Horizontal Airflow in Cooling Mode, by spreading airflow evenly across the ceiling. Blue Fin Coating – Built to Withstand the Elements The heat exchanger of the outdoor unit has been treated with Blue Fin AntiCorrosion Treatment, slowing the corrosion process caused by salt and sulphur in the air especially in coastal and high sulphur areas. 7-Day Programmable Controller The AP Mini Heat Pump comes standard with a 7-Day Controller, so you can customise your heating and cooling needs to your lifestyle with as much energy efficiency as possible. Optional Wi-Fi Control! Never Return to a Cold Home Again Now you can pre-heat or cool a room no matter where you are. On the way home, running late, or in a different country, with optional Wi-Fi Control* you'll always arrive home to total comfort. Optional Plasma Quad Connect for Cleaner, Healthier Air Designed to integrate with your existing AP Mini Heat Pump, this highperformance two-stage advanced air filtration module, cleans and minimises dust and other allergens for better indoor air quality, all year round. Comparison of dirt on heat exchanger, fan and air duct. (Factory simulated in-house comparison.) No Dual Barrier Coating (after 10 years) With Dual Barrier Coating Heat Exchanger Fan Air Duct Close-up of Air Purifying Filter * Wi-Fi adapter must be mounted externally. Advanced Air Filtration Optional 11
EcoCore Series – AP Classic and AP Plus High Wall System New Zealand's Quietest Heat Pump!* Starting at an incredibly quiet 18dBA on its lowest fan speed, the EcoCore Series AP25 indoor unit is New Zealand’s quietest high wall heat pump ever. It is ideal where quietness matters most, in bedrooms even on the coldest of winter nights. Furthermore, the addition of Night Mode means the outdoor operating noise level drops by a further 3dBA – for the perfect night’s sleep. The Secret to Quietness By making the heat exchanger 32% thinner† and designing the fan coil to be 22% larger† in comparison to previous models, pressure loss across the heat exchanger is minimised and air can now be moved across a larger fan surface. Add to this a new aerodynamically designed fan coil, and a new level of quietness has been achieved! Dual Barrier Coating Maximises Efficient Performance The patented and world’s first Dual Barrier Coating from Mitsubishi Electric prevents dust and dirt from accumulating on the inner surface of the indoor unit; keeping your heat pump clean year-round. Keeping key internal components like the heat exchanger, fan and internal duct clean is important for both home comfort and efficiency. Not only does dust and dirt buildup typically create unpleasant odours, it also forces a heat pump to work harder, which can result in significantly impaired energy efficiency. Dual Barrier Coating prevents dust and oil build-up on the interior of the heat pump for the ultimate in peace of mind, ease and comfort. The EcoCore Series AP Classic (with optional Wi-Fi) and AP Plus (with built-in Wi-Fi) High Wall Heat Pumps set a new standard in super energy efficient heating. Next-generation EcoCore Technology is designed to use less power than ever before. And starting at just 18dBA*, it's NZ's quietest – ideal for living rooms and bedrooms! * The EcoCore Series AP25 indoor sound level on lowest fan setting in Heating Mode. † Compared to MSZ-GL Series. Comparison of dirt on heat exchanger, fan and air duct. (Factory simulated in-house comparison.) No Dual Barrier Coating (after 10 years) With Dual Barrier Coating Heat Exchanger Fan Air Duct Heat Exchanger 32% THINNER† Fan Coil 22% LARGER† from 18dBA* 12
Dimensions (WxDxH): 798 x 219 x 299mm MSZ-AP25VG(K)D Heating Capacity: 3.2 kW | Cooling Capacity: 2.5 kW MSZ-AP35VG(K)D Heating Capacity: 3.7 kW | Cooling Capacity: 3.5 kW MSZ-AP42VG(K)D Heating Capacity: 5.4 kW | Cooling Capacity: 4.2 kW MSZ-AP50VG(K)D Heating Capacity: 6.0 kW | Cooling Capacity: 5.0 kW Dimensions (WxDxH): 1100 x 257 x 325mm MSZ-AP60VG(K)D Heating Capacity: 6.8 kW | Cooling Capacity: 6.0 kW MSZ-AP71VG(K)D Heating Capacity: 8.0 kW | Cooling Capacity: 7.1 kW MSZ-AP80VG(K)D Heating Capacity: 9.0 kW | Cooling Capacity: 7.8 kW * AP60/71/80 models only. Energy Efficient EcoCore Inverter Technology Superior energy efficiency is achieved by incorporating a large, high density heat exchanger, an advanced high efficiency fan motor and a next-generation inverter compressor that uses more efficient R32 refrigerant. More Environmentally Friendly R32 Refrigerant With a global warming potential that is 30% lower compared to older refrigerants such as R410A, next-generation R32 refrigerant has a much lower environmental impact. Furthermore, zero ozone depleting R32 is easier to reuse and recycle. Washable Air Purifying Filter The EcoCore AP Series is equipped with an Air Purifying Filter. This washable filter traps particles such as dust, pollen and other airborne contaminants, generating stable antibacterial and deodorising effects. The size of the three-dimensional surface has been increased from previous models, enlarging the filter capture area. These features give the Air Purifying Filter better dust collection performance than conventional filters. Horizontal Airflow The EcoCore AP Series eliminates uncomfortable draughts with Horizontal Airflow in Cooling Mode, by first spreading airflow evenly across the ceiling. Wide and Long Airflow* The Wide Airflow Mode enables the airflow direction to be adjusted from left to right and is ideal for open plan environments – ensuring every corner of the room is comfortable. The Long Airflow Mode extends airflow distance. Blue Fin Coating – Built to Withstand the Elements The heat exchanger of the outdoor unit has been treated with Blue Fin AntiCorrosion Treatment, slowing the corrosion process caused by salt and sulphur in the air especially in coastal and high sulphur areas. Never Return to a Cold Home Again with Wi-Fi Control Pre-heat or cool a room no matter where you are. With Wi-Fi Control you'll always arrive home to total comfort. Wi-Fi Control is built-in to the AP Plus Series and available as an optional upgrade with the AP Classic Series. Optional Plasma Quad Connect for Cleaner, Healthier Air Designed to integrate with your existing EcoCore AP Series Heat Pump, this high-performance two-stage advanced air filtration module, cleans and minimises dust and other allergens for better indoor air quality, all year round. Close-up of Air Purifying Filter Advanced Air Filtration Optional AP Classic AP Plus AP Classic | AP Plus 13
Large Capacity AS90 High Wall Combining powerful performance in an elegant and compact case, the AS90 offers high airflow, making it ideal for light commercial applications such as schools, halls, and open plan shared spaces. The Ideal Solution for Large Spaces Boasting a capacity of 9.0kW in cooling (10.3kW in heating), this model features nextgeneration R32 high-efficiency compressor technology, developed and engineered to use less power than ever before. The Wide and Long Airflow Mode, in addition to Powerful Mode, ensures far-reaching coverage making the AS90 ideal for larger, open working spaces. Next-Generation R32 Technology Superior energy efficiency is achieved by incorporating a large, high-density heat exchanger, an advanced high-efficiency fan motor and a next-generation compressor using the latest super efficient and more environmentally friendly R32 refrigerant. Powerful Mode The one-touch Powerful Mode automatically adjusts the fan speed and temperature, guaranteeing full power operation within 15 minutes for faster heating or cooling. After 15 minutes, the unit automatically returns to its previous operation settings. Wide and Long Airflow The Wide Airflow Mode enables airflow direction to be adjusted from left to right, ideal for open plan environments ensuring every corner of the room is comfortable. The Long Airflow Mode extends airflow by up to 12m to reach even the furthest point of open plan or larger living spaces. These modes are simply activated at the touch of a button on your remote controller. High Wall System 14
† Dimensions (WxDxH): 1170 x 295 x 365mm MSZ-AS90VGD Heating Capacity: 10.3 kW | Cooling Capacity: 9.0 kW Two Stage Advanced Filtration The AS90 High Wall is equipped with a standard air filter and an Anti-Allergy Enzyme Filter. This washable air cleaning filter traps harmful particles such as dust, pollen and other airborne contaminants that can cause allergic reactions. Furthermore, the filter itself is infused with an artificial Enzyme Catalyst that helps break down harmful microbes such as bacteria, mould and dust mites. Econo Cool Function This intelligent temperature control feature adjusts the airflow distributed in the room depending on the air outlet temperature. Temperature settings can be raised by 2°C without any loss of in-room comfort. That's equal to a gain of up to 20% in energy efficiency. i-Save Mode Saves temperature and fan speed combinations, including a set-back temperature of 10°C in Heating Mode when the room is unoccupied. This means that the system will use less energy to reach the desired temperature once the room is reoccupied. Blue Fin Coating – Built to Withstand the Elements The heat exchanger of the outdoor unit has been treated with Blue Fin AntiCorrosion Treatment, slowing the corrosion process caused by salt and sulphur in the air especially in coastal and high sulphur areas. Night Mode Night Mode will automatically dim the operation indicator light, displaying any beeping from the indoor unit. Furthermore, the outdoor operating noise level is reduced by 3dBA ensuring quiet nights for both you and your neighbours. 7-Day Programmable Controller The Large Capacity AS90 High Wall Heat Pump System features a builtin weekly timer, allowing you to program up to four time and temperature settings for each day of the week. The 7-Day Controller is the perfect way to maximise energy efficiency without compromising on comfort. Optional Wi-Fi Control! Never Return to a Cold Home Again Now you can pre-heat or cool a room no matter where you are. On the way home, running late, or in a different country, with optional Wi-Fi Control† you'll always arrive home to total comfort. Optional Plasma Quad Connect for Cleaner, Healthier Air Designed to integrate with your existing Large Capacity AS90 Heat Pump, this high-performance two-stage advanced air filtration module, cleans and minimises dust and other allergens for better indoor air quality, all year round. AA Advanced Air Filtration Optional † Wi-Fi adapter must be mounted externally. 15
High Wall System The EcoCore Designer EF Series features exceptional energy efficiency and built-in Wi-Fi Control. Elegant and slimline in design, these heat pumps are available in a choice of colours including Rich Black Diamond, Matte Silver or new Pure White – so you can truly reflect your interior design style. Why Limit Yourself to One Colour When You Can Choose from Three? Personalise your home interior with the new EcoCore Designer EF Series High Wall Heat Pump. Available in a Rich Black Diamond, Matte Silver or Pure White finish, now you can mix and match, blend in or stand out – it’s up to you! The Designer EF Series has been developed specifically with both good design and function in mind. The range features advanced filtration, whisper quiet operation and built-in Wi-Fi Control so you’ll always come home to perfect comfort. In addition, more environmentally friendly and energy efficient R32 refrigerant helps minimise the impact on the environment. The slimline Designer EF Series is a true achievement in superior performance and looks. It’s an investment in all-round comfort that will never go out of style. Energy Efficient EcoCore Inverter Technology Superior energy efficiency is achieved by incorporating a large, high density heat exchanger, an advanced high efficiency fan motor and a next-generation inverter compressor that uses more efficient R32 refrigerant. More Environmentally Friendly R32 Refrigerant With a global warming potential that is 30% lower compared to older refrigerants such as R410A, next-generation R32 refrigerant has a much lower environmental impact. Furthermore, zero ozone depleting R32 is easier to reuse and recycle. EcoCore Designer EF Series 16
Dimensions (WxDxH): 885 x 195 x 299mm MSZ-EF25VGKW/B/S Heating Capacity: 3.2 kW | Cooling Capacity: 2.5 kW MSZ-EF35VGKW/B/S Heating Capacity: 4.0 kW | Cooling Capacity: 3.5 kW MSZ-EF42VGKW/B/S Heating Capacity: 5.4 kW | Cooling Capacity: 4.2 kW MSZ-EF50VGKW/B/S Heating Capacity: 5.8 kW | Cooling Capacity: 5.0 kW * EF25 indoor sound level on lowest fan setting in Cooling Mode. from 19dBA* Advanced Nano Platinum Filter The extra large, washable 3D filter surface incorporates nanometre-sized platinum ceramic particles designed to effectively collect fine dust particles, deodorise the air and eliminate bacteria at the same time. This level of advanced filtration is better at the collection of dust in comparison to conventional filters. Quiet Operation Designer EF Series indoor units feature Silent Mode – a fan speed setting that provides quiet operation as low as 19dBA* so you will feel the warmth, not hear it. Blue Fin Coating – Built to Withstand the Elements The heat exchanger of the outdoor unit has been treated with Blue Fin AntiCorrosion Treatment, slowing the corrosion process caused by salt and sulphur in the air especially in coastal and high sulphur areas. 7-Day Programmable Controller All Designer EF Series High Wall Heat Pumps feature a built-in weekly timer, allowing you to program up to four time and temperature settings for each day of the week. The 7-Day Controller is the perfect way to maximise energy efficiency without compromising on comfort. Wi-Fi Control Built-in! Never Return to a Cold Home Again Now you can pre-heat or cool a room no matter where you are. On the way home, running late, or in a different country, with Wi-Fi Control you'll always arrive home to total comfort. Optional Plasma Quad Connect for Cleaner, Healthier Air Designed to integrate with your existing EcoCore Designer EF Heat Pump, this high-performance two-stage advanced air filtration module, cleans and minimises dust and other allergens for better indoor air quality, all year round. NP Award-Winning Timeless Design The Designer EF Series features a distinctive contemporary, slimline profile and has been awarded the prestigious Red Dot Design Award in recognition for outstanding design quality. The international jury only confers this sought-after seal of quality to products that set themselves apart significantly from comparable products thanks to their excellent design. Advanced Air Filtration Optional 17
Reflect Your Design Personality Featuring a striking flat panel design, the Black Diamond LN Series is available in three unique reflective colour finishes – White Diamond, Red Diamond and Black Diamond, that change depending on the light in the room. Now you can make a real interior design style statement with your heat pump colour choice. HyperCore as Standard* The Black Diamond LN Series 2.5–5kW capacities come standard with HyperCore Technology. While ordinary heat pumps produce less heat below 7°C, Mitsubishi Electric HyperCore Technology guarantees to continue to deliver its full rated heating capacity right down to -15°C, so you stay warm when you need it most. See page 4 for more details on our HyperCore Technology. Black Diamond LN Series The Black Diamond LN Series sets the new standard in personalised comfort and style. Available in three reflective colours, the range is packed with advanced features including Plasma Quad Plus Filtration ideal for allergy sufferers, the 3D i-See Sensor for customised heating or cooling and Wi-Fi Control is built-in! High Wall System Ambient Temperature °C MSZ-LN50 HyperCore® 6kW Heating High Wall Heat Pump AMBIENT TEMPERATURE vs HEAT DELIVERY Kilowatt Heat Output STANDARD Inverter 6kW Heating High Wall Heat Pump * The Black Diamond Series LN60 does not feature HyperCore Technology. 18
3D i-See Sensor The 3D i-See Sensor detects the presence and position of people in the room using thermal heat recognition, adjusting the temperature and airflow pattern for optimal comfort. This helps the Black Diamond LN Series do more than simply save energy, it also enables a new level of truly personalised comfort to be achieved. Thermal Scan Technology The 3D i-See Sensor continually takes a thermal scan of the room, dividing it into 752 three-dimensional zones and measuring the temperature in each zone to detect exactly where people are in a room. Independently Controlled Dual Split Vane Airflow Intuitively Adjusts the Airflow Direction to Where it’s Needed The 3D i-See Sensor works in conjunction with the Dual Split Vanes to provide heating or cooling to where it is needed most. As a result, it can save energy by not heating or cooling areas that don’t require it. Whether you prefer direct, indirect or evenly distributed airflow, the 3D i-See Sensor and Dual Split Vanes provide the ultimate in customisable airflow. You'll Never Feel Cold The 3D i-See Sensor can recognise movement of an individual in a room and subsequently direct the airflow with the Dual Split Vanes; so they continue feeling warm no matter where they have moved to in the room. Comfort for All With Multiple Airflow Directions The 3D i-See Sensor can identify multiple people present in the room and adjust the Dual Split Vanes to direct heating or cooling evenly throughout; so everybody feels comfortable in the room. Even Airflow – Airflow Only Where You Need It With Even Airflow Mode, the 3D i-See Sensor memorises people’s movements and furniture positions, efficiently distributing airflow only to where it is needed. You always feel warm and comfortable as the direct heat follows you as you move around the room. Only one occupant feels direct heat. With Split Vane both occupants feel direct heat. 8 sensors measure while moving left to right 752 three-dimensional zones 8 x 94 areas 19
Energy Saving No Occupancy Modes The 3D i-See Sensor detects whether or not there are people in the room, and automatically switches to one of the No Occupancy Modes, as set by the user. In No Occupancy Energy Saving Mode when no one is in the room, the unit automatically reduces power consumption by approximately 10% after 10 minutes, and 20% after 60 minutes. In No Occupancy Auto-Off Mode, when no one is in the room, the unit turns off automatically. Advanced Plasma Quad Plus Filtration The advanced Plasma Quad Plus Filtration System, featuring high-performance two stage plasma technology, filters the air to clean away viruses such as Covid-19* as well as smells, dust, moulds and other common household allergens. The Two Stage Plasma Quad Plus Filter works like an electrical curtain, using an electrical discharge to catch and neutralise even microscopically small particles in the air. In fact, it can even capture PM2.5 particles (that's 20 times smaller than the width of a human hair!). Independent test results confirm that the Plasma Quad Filtration System achieves extremely high reduction results in the removal of allergen, mould, bacteria and airborne contaminants in the room. Providing up to 98.8% effectiveness of removing airborne Covid-19* particles too, it’s the ultimate peace of mind for ensuring a healthier, cleaner living environment. Superior Energy Efficiency Black Diamond LN Series Heat Pumps are some of the most energy efficient heat pumps available in New Zealand. This high energy efficiency is achieved by incorporating a large, high-density heat exchanger, an advanced high-efficiency fan motor and a next-generation compressor using the latest in super efficient R32 refrigerant. High Wall System Black Diamond LN Series Bacteria Airborne Contaminants Moulds Allergens Micro Particles Dust The 3D i-See Sensor continuously scans the room for occupants. In Energy Saving Mode – power is reduced when you leave the room. In Auto-Off Mode – unit switches off when you leave the room. FILTRATION * PQC Electrode Collection Plate, Test Chamber Lab – Test No. 20KB070569, Microbial Testing Laboratory Kobe Testing Center Japan Textile Products Quality and Technology Center. ^ Such as Influenza A virus A/Aichi/2/68 (H3N2) - tested in a 25m2 room by Virus Research Center, Sendai Medical Center, National Hospital Organisation according to JEM 1467. 20
Dual Barrier Coating Maximises Efficient Performance The patented and world’s first Dual Barrier Coating from Mitsubishi Electric prevents dust and dirt from accumulating on the inner surface of the indoor unit; keeping your heat pump clean year-round. Keeping key internal components like the heat exchanger, fan and internal duct clean is important for both home comfort and efficiency. Not only does dust and dirt build-up typically create unpleasant odours, it also forces a heat pump to work harder, which can result in significantly impaired energy efficiency. Dual Barrier Coating prevents dust and oil build-up on the interior of the heat pump for the ultimate in peace of mind, ease and comfort. More Environmentally Friendly R32 Refrigerant With a global warming potential that is 30% lower compared to older refrigerants such as R410A, next-generation R32 refrigerant has a much lower environmental impact. Furthermore, zero ozone depleting R32 is easier to reuse and recycle. Blue Fin Coating – Built to Withstand the Elements The heat exchanger of the outdoor unit has been treated with Blue Fin AntiCorrosion Treatment, slowing the corrosion process caused by salt and sulphur in the air especially in coastal and high sulphur areas. Quiet Operation Black Diamond LN indoor units feature Silent Mode – a fan speed setting that provides quiet operation as low as 19dBA* so you will feel the warmth, not hear it. 7-Day Programmable Controller All Black Diamond LN Series Heat Pumps feature a built-in weekly timer, allowing you to program up to four time and temperature settings for each day of the week. You can now return to comfort without having to manually adjust the temperature. Perfect for anyone with a busy lifestyle, the 7-Day Controller is a great way to regulate your energy usage without compromising on comfort. Wi-Fi Control Built-in! Never Return to a Cold Home Again With built-in Wi-Fi Control you can pre-heat or cool a room no matter where you are. On the way home, running late, coming home early, or even when you're in a different country, with Wi-Fi Control you'll always arrive home to total comfort. Wi-Fi Control is Amazon Alexa and Google Home enabled so you can take your comfort to the next level and enjoy hands-free heat pump control. See pages 6–7 for more details on Wi-Fi Control. Dimensions (WxDxH): 890 x 233 x 307mm MSZ-LN25VG2V/B/R Heating Capacity: 3.2 kW | Cooling Capacity: 2.5 kW MSZ-LN35VG2V/B/R Heating Capacity: 4.0 kW | Cooling Capacity: 3.5 kW MSZ-LN50VG2V/B/R Heating Capacity: 6.0 kW | Cooling Capacity: 5.0 kW MSZ-LN60VG2V/B/R* Heating Capacity: 6.8 kW | Cooling Capacity: 6.1 kW from 19dBA* * The Black Diamond Series LN60 does not feature HyperCore Technology. * LN 25/35 indoor sound level on the lowest fan setting. 21
New Zealand's quietest floor consoles* feature a contemporary slimline design and dramatically reduced depth. RapidHeat KW Floor Consoles are the perfect solution for unobtrusive heating at floor level. New advanced sensors with Intuitive Control Logic Technology offer unparalleled low temperature heating performance in the shortest amount of time, all while maintaining maximum energy efficiency. NZ’s Quietest Floor Consoles Starting at barely a whisper, Mitsubishi Electric RapidHeat KW Floor Consoles are New Zealand’s quietest floor console heat pumps starting from just 18dBA*. This is achieved through the use of a larger fan scroll that not only enables the unit to be quieter, but also increases its efficiency when heating your home. RapidHeat Technology Advanced sensors coupled with Intuitive Control Logic mean optimal running temperatures are reached in the shortest amount of time possible with maximum energy efficiency. Automatically activated at start-up in low temperature conditions when TwoWay Airflow is selected, warm air is blown in a downward direction first before the air is returned back into the indoor unit where it is reheated a second time. As a result, a room can now be heated up to twice as fast compared to our previous model.† Sleek, Sophisticated Design Mitsubishi Electric RapidHeat KW Floor Consoles feature a new contemporary design that can be recessed into your wall to dramatically reduce the depth of the indoor unit from 215mm to 145mm – a decrease of 33%. With the addition of a removable base, it is the perfect solution offering compact, unobtrusive heating for new buildings, renovation projects and fireplace replacements. More Environmentally Friendly R32 Refrigerant With a global warming potential that is 30% lower compared to older refrigerants such as R410A, next-generation R32 refrigerant has a much lower environmental impact. Furthermore, zero ozone depleting R32 is easier to reuse and recycle. Floor Console System *MFZ-KW25/35/42 indoor sound level on lowest fan setting in Heating Mode. †Compared to the previous MFZ-KA Series, RapidHeat KW Series Removable base Recessable – reduces depth by 33% (70mm) 10° 0 5 10 15 20 25 RapidHeat Series vs Previous Floor Console: Time to Reach 20°C 30 35 20°C 30° RapidHeat KW25 15min Time (min) Previous Model 37min Operating at 2°C outdoor temperature 40 from 18dBA* 22
Multi Vane Flow for Even Heat Distribution The Multi Vane Flow function blows warm air in both an upward and downward direction providing fast, even and effective heating whilst also reducing draughts. This is achieved via three uniquely shaped vanes that are designed for better airflow control and also provide the freedom to be customised to your preference. Anti-Allergy Enzyme Filter In addition to a washable Air Purifying Filter, the RapidHeat KW Series features an Anti-Allergy Enzyme Filter which utilises enzyme catalysts to filter allergens and remove harmful bacteria. 7-Day Programmable Controller All RapidHeat KW Series Floor Consoles feature a built-in weekly timer, allowing you to program up to four time and temperature settings for each day of the week. You can now return to comfort without having to manually adjust the temperature. Perfect for anyone with a busy lifestyle, the 7-Day Controller is a great way to regulate your energy usage without compromising on comfort. Optional HyperCore Technology** The RapidHeat KW Series Floor Consoles come with optional HyperCore Technology. While ordinary heat pumps produce less heat below 7°C, Mitsubishi Electric HyperCore Technology continues to deliver its full rated heating capacity right down to -15°C, so you stay warm when you need it most. See page 4 for more details on our HyperCore Technology. Optional Wi-Fi Control! Never Return to a Cold Home Again With optional Wi-Fi Control you can pre-heat or cool a room no matter where you are. On the way home, running late, coming home early, or even when you're in a different country, with Wi-Fi Control you'll always arrive home to total comfort. Wi-Fi Control is Amazon Alexa and Google Home enabled so you can take your comfort to the next level and enjoy hands-free heat pump control. See pages 6–7 for more details on Wi-Fi Control. AA Dimensions (WxDxH): 750 x 215 x 600mm MFZ-KW25VG Heating Capacity: 3.4 kW | Cooling Capacity: 2.5 kW MFZ-KW35VG Heating Capacity: 4.3 kW | Cooling Capacity: 3.5 kW MFZ-KW42VG Heating Capacity: 5.4 kW | Cooling Capacity: 4.2 kW MFZ-KW50VG Heating Capacity: 5.8 kW | Cooling Capacity: 5.0 kW MFZ-KW60VG Heating Capacity: 6.5 kW | Cooling Capacity: 6.1 kW MFZ-KW50VGHZ Heating Capacity: 5.8 kW | Cooling Capacity: 5.0 kW MFZ-KW60VGHZ Heating Capacity: 6.5 kW | Cooling Capacity: 6.1 kW Ambient Temperature °C AMBIENT TEMPERATURE vs HEAT DELIVERY Kilowatt Heat Output MFZ-KW50 HyperCore® 5.8kW Heating Floor Console Heat Pump STANDARD Inverter 5.8kW Heating Floor Console Heat Pump ** 5.0kW and 6.1kW models only. 23
