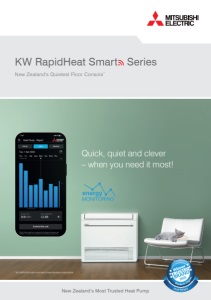

KW RapidHeat Smart Series New Zealand's Quietest Floor Console* New Zealand’s Most Trusted Heat Pump Quick, quiet and clever – when you need it most! * MFZ-KW25/35/42 indoor sound level on lowest fan setting in Heating Mode.
2 KW RapidHeat Smart Series * MFZ-KW25/35/42 indoor sound level on lowest fan setting in Heating Mode. † Compared to the previous MFZ-KA Series, Removable base Recessable – reduces depth by 33% (70mm) 10° 0 5 10 15 20 25 RapidHeat Series vs Previous Floor Console: Time to Reach 20°C 30 35 20°C 30° RapidHeat KW25 15min Time (min) Previous Model 37min Operating at 2°C outdoor temperature 40 from 18dBA* New Zealand's quietest floor consoles* feature a contemporary slimline design and dramatically reduced depth. KW RapidHeat Smart Floor Consoles are the perfect solution for unobtrusive heating at floor level with the benefit of Built-in Wi-Fi Control Energy Monitoring. New advanced sensors with Intuitive Control Logic Technology offer unparalleled low temperature heating performance in the shortest amount of time, all while maintaining maximum energy efficiency. NZ’s Quietest Floor Consoles* Starting at barely a whisper, Mitsubishi Electric RapidHeat Smart Floor Consoles are New Zealand’s quietest floor console heat pumps starting from just 18dBA*. This is achieved through the use of a larger fan scroll that not only enables the unit to be quieter, but also increases its efficiency when heating your home. RapidHeat Technology Advanced sensors coupled with Intuitive Control Logic mean optimal running temperatures are reached in the shortest amount of time possible with maximum energy efficiency. Automatically activated at start-up in low temperature conditions when TwoWay Airflow is selected, warm air is blown in a downward direction first before the air is returned back into the indoor unit where it is reheated a second time. As a result, a room can now be heated up to twice as fast compared to our previous model.† Sleek, Sophisticated Design Mitsubishi Electric RapidHeat Smart Floor Consoles feature a new contemporary design that can be recessed into your wall to dramatically reduce the depth of the indoor unit from 215mm to 145mm – a decrease of 33%. With the addition of a removable base, it is the perfect solution offering compact, unobtrusive heating for new buildings, renovation projects and fireplace replacements. More Environmentally Friendly R32 Refrigerant With a global warming potential that is 30% lower compared to older refrigerants such as R410A, next-generation R32 refrigerant has a much lower environmental impact. Furthermore, zero ozone depleting R32 is easier to reuse and recycle.
3 RapidHeat Multi Vane Flow for Even Heat Distribution The Multi Vane Flow function blows warm air in both an upward and downward direction providing fast, even and effective heating whilst also reducing draughts. This is achieved via three uniquely shaped vanes that are designed for better airflow control and also provide the freedom to be customised to your preference. Anti-Allergy Enzyme Filter In addition to a washable Air Purifying Filter, the RapidHeat Smart Series features an Anti-Allergy Enzyme Filter which utilises enzyme catalysts to filter allergens and remove harmful bacteria. 7-Day Programmable Controller All RapidHeat Smart Series Floor Consoles feature a built-in weekly timer, allowing you to program up to four time and temperature settings for each day of the week. You can now return to comfort without having to manually adjust the temperature. Perfect for anyone with a busy lifestyle, the 7-Day Controller is a great way to regulate your energy usage without compromising on comfort. Optional HyperCore Technology* RapidHeat Smart Series Floor Consoles are available with optional HyperCore Technology. While ordinary heat pumps produce less heat below 7°C, Mitsubishi Electric HyperCore Technology continues to deliver its full rated heating capacity right down to -15°C, so you stay warm when you need it most. Built-in Wi-Fi Control Energy Monitoring With Built-in Wi-Fi Control you can pre-heat or cool a room no matter where you are. On the way home, running late, coming home early, or even when you're in a different country, with Wi-Fi Control you'll always arrive home to total comfort. The intuitive app also features Energy Monitoring, allowing you to track indicative energy use so you can make more energy efficient choices when heating and cooling your space. AA Dimensions (WxDxH): 750 x 215 x 600mm MFZ-KW25VGK Heating Capacity: 3.4 kW | Cooling Capacity: 2.5 kW MFZ-KW35VGK Heating Capacity: 4.3 kW | Cooling Capacity: 3.5 kW MFZ-KW42VGK Heating Capacity: 5.4 kW | Cooling Capacity: 4.2 kW MFZ-KW50VGK Heating Capacity: 5.8 kW | Cooling Capacity: 5.0 kW MFZ-KW60VGK Heating Capacity: 6.5 kW | Cooling Capacity: 6.1 kW MFZ-KW50VGKHZ Heating Capacity: 5.8 kW | Cooling Capacity: 5.0 kW MFZ-KW60VGKHZ Heating Capacity: 6.5 kW | Cooling Capacity: 6.1 kW Ambient Temperature °C Ambient Temperature vs Heat Delivery Kilowatt Heat Output MFZ-KW50 HyperCore® 5.8kW Heating Floor Console Heat Pump STANDARD Inverter 5.8kW Heating Floor Console Heat Pump * 5.0kW and 6.1kW models only.
QUICK GLANCE TYPE Floor Console System SERIES KW RapidHeat Smart Series KW RapidHeat Smart Series with HyperCore MODEL MFZ-KW25 MFZ-KW35 MFZ-KW42 MFZ-KW50 MFZ-KW60 MFZ-KW50HZ MFZ-KW60HZ REFRIGERANT R32 INDOOR UNIT MFZ-KW25VGK MFZ-KW35GK MFZ-KW42VGK MFZ-KW50VGK MFZ-KW60VGK MFZ-KW50VGK MFZ-KW60VGK OUTDOOR UNIT MUFZ-KW25VG2 MUFZ-KW35VG2 MUFZ-KW42VG2 MUFZ-KW50VG2 MUFZ-KW60VG2 MUFZ-KW50VGHZ2 MUFZ-KW60VGHZ2 COOL 2.5kW 4.38 EER 20 dBA* 3.5kW 4.02 EER 20 dBA* 4.2kW 3.78 EER 20 dBA* 5.0kW 3.78 EER 27 dBA* 6.1kW 3.52 EER 27 dBA* 5.0kW 3.78 EER 27 dBA* 6.1kW 3.52 EER 27 dBA* HEAT 3.4kW 4.35 COP 18 dBA* 4.3kW 3.77 COP 18 dBA* 5.4kW 3.77 COP 18 dBA* 5.8kW 3.79 COP 29 dBA* 6.5kW 3.45 COP 29 dBA* 5.8kW 3.79 COP 29 dBA* 6.5kW 3.45 COP 29 dBA* ZERL STAR RATINGS (NZ) Cold Area 3.5 2.5 3.5 2.0 3.0 2.0 2.5 2.0 2.5 2.0 2.5 2.0 2.5 2.0 Avge Area‡ 3.5 2.5 3.0 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 Hot Area‡ 4.0 3.0 3.5 3.0 3.0 3.0 3.0 3.0 2.5 3.0 3.0 3.0 2.5 3.0 COOL Capacity Rated [kW] 2.5 3.5 4.2 5.0 6.1 5.0 6.1 Min-Max [kW] 0.7 - 3.4 0.7 - 3.8 0.7 - 5.0 1.0 - 5.7 1.0 - 6.5 1.0 - 5.7 1.0 - 6.5 Total Input Rated [kW] 0.57 0.87 1.11 1.32 1.73 1.32 1.73 EER/AEER 4.38 / 4.32 4.02 / 3.98 3.78 / 3.75 3.78 / 3.76 3.52 / 3.50 3.78 / 3.76 3.52 / 3.50 Indoor Sound Level Quiet [dBA] 20 20 20 27 27 27 27 Low-SHi2 [dBA] 26-32-38-44 26-32-38-44 28-36-43-51 31-35-39-44 35-39-46-53 31-35-39-44 35-39-46-53 Running Current (Rated) [A] 3.0 4.2 5.1 5.8 7.7 5.8 7.7 Air Volume In (SHi1) [L/s] 172 172 228 177 250 177 250 HEAT Capacity Rated [kW] 3.4 4.3 5.4 5.8 6.5 5.8 6.5 Min-Max [kW] 0.23 - 4.6 0.23 - 6.0 0.23 - 6.7 1.2 - 8.2 1.2 - 8.8 1.2 - 8.4 1.2 - 9.0 @-15°C [kW] - - - - - 5.8 6.5 Total Input Rated [kW] 0.78 1.14 1.43 1.53 1.88 1.53 1.88 COP / ACOP 4.35 / 4.31 3.77 / 3.74 3.77 / 3.75 3.79 / 3.77 3.45 / 3.44 3.79 / 3.77 3.45 / 3.44 Indoor Sound Level Quiet [dBA] 18 18 18 29 29 29 29 Low-SHi2 [dBA] 25-31-38-44 25-31-38-44 27-36-44-51 35-40-45-50 35-41-47-51 35-40-45-50 35-41-47-51 Running Current (Rated) [A] 3.8 5.3 6.4 6.8 8.3 6.8 8.3 Air Volume In (SHi1) [L/s] 173 173 235 233 243 233 243 Controller Standard 7-Day Programmable Controller Optional Wired 7-Day Timer Optional: PAR Controller (Interface Required) Wi-Fi Built-in with Energy Monitoring Power Supply (Powered From Outdoor Unit) 230V / Single Phase / 50 Hz Maximum Current [A] 9.9 9.9 10.1 15.3 15.4 15.3 15.4 Indoor Dimensions (WxDxH) [mm] 750 x 215 x 600 Weight [kg] 15 Outdoor Dimensions (WxDxH) [mm] 800 x 285 x 550 840 x 330 x 880 Weight [kg] 35 54 Sound Level - SPL3/Power (Cooling-Heating) [dBA] 48-46 / 61-59 48-47 / 61-60 48-47 / 62-61 53-56 / 66-69 53-56 / 66-69 53-56 / 66-69 53-56 / 66-69 Piping Diameter (Liquid/Gas) [mm] 6.35 / 9.52 6.35 / 9.52 6.35 / 9.52 6.35 / 12.7 6.35 / 12.7 6.35 / 12.7 6.35 / 12.7 Max. Length/Height† [m] 20 / 12 20 / 12 20 / 12 30 / 15 30 / 15 30 / 15 30 / 15 Chargeless Piping Length [m] 7 7 7 7 7 7 7 Operation Range Outdoor Cooling [˚C] -10 /+46 -10 /+46 -10 /+46 -10 /+46 -10 /+46 -10 /+46 -10 /+46 Heating [˚C] -15 /+24 -15 /+24 -15 /+24 -15 /+24 -15 /+24 -25 /+24 -25 /+24 Indoor Unit Colour White KW RapidHeat Smart Series Specifications EER = Energy Efficiency Ratio COP = Coefficient of Performance AEER = Annual Energy Efficiency Ratio ACOP = Annual Coefficient of Performance SPL = Sound Pressure Level ¹ SHi = Super High ² Low–SHi = Low–Medium–High–Super High ³ SPL measured under rated operating frequency * Indoor Sound Levels rated at lowest fan speed. † Maximum length is inclusive of height differential i.e. (20/12) means the pipe can be 12m high and 8m across for a total length of 20m. Rating Conditions (AS / NZS 3823). Cooling: Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB Heating: Indoor: 20°C DB Outdoor: 7°C DB, 6°C WB. PUBLISHED May 2025 For more information please visit our website or call our Customer Service Team. www.mitsubishi-electric.co.nz | 0800 784 382 Learn more about the RapidHeat Smart Series
