Lossnay LGH-RVX3 Energy Recovery Ventilation

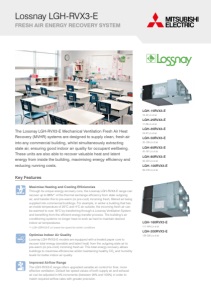

Lossnay LGH-RVX3-E FRESH AIR ENERGY RECOVERY SYSTEM The Lossnay LGH-RVX3-E Mechanical Ventilation Fresh Air Heat Recovery (MVHR) systems are designed to supply clean, fresh air into any commercial building, whilst simultaneously extracting stale air, ensuring good indoor air quality for occupant wellbeing. These units are also able to recover valuable heat and latent energy from inside the building, maximising energy efficiency and reducing running costs. Key Features Maximise Heating and Cooling Efficiencies Through its unique energy recovery core, the Lossnay LGH-RVX3-E range can recover up to 88%*1 of the thermal exchange efficiency from stale outgoing air, and transfer this to pre-warm (or pre-cool) incoming fresh, filtered air being supplied into commercial buildings. For example, in winter a building that has an inside temperature of 20°C and 4°C air outside, the incoming fresh air can be warmed to over 18°C by transferring through a Lossnay Ventilation System and benefiting from the efficient energy transfer process. The building’s air conditioning systems no longer have to work as hard to maintain desired indoor air temperatures. * 1 LGH-25RVX3-E on lowest fan speed for winter conditions Optimise Indoor Air Quality Lossnay LGH-RVX3-E models are equipped with a treated paper core to recover total energy (sensible and latent heat) from the outgoing stale air to pre-warm (or pre-cool) incoming fresh air. This total energy recovery allows buildings to maximise efficiencies whilst maintaining healthy CO2 and humidity levels for better indoor air quality. Improved Airflow Range The LGH-RVX3-E range offers upgraded variable air control for finer, more effective ventilation. Default fan speed values of both supply air and exhaust air can be adjusted in 5% increments (between 25% and 100%) in order to match required airflow rates with greater precision. LGH-15RVX3-E 10-42 L/s of air LGH-25RVX3-E 17-69 L/s of air LGH-35RVX3-E 24-97 L/s of air LGH-50RVX3-E 35-139 L/s of air LGH-65RVX3-E 45-181 L/s of air LGH-80RVX3-E 56-222 L/s of air LGH-100RVX3-E 69-278 L/s of air LGH-160RVX3-E 111-444 L/s of air LGH-200RVX3-E 139-556 L/s of air

Low Noise Design Offering whisper quiet operation across all fan speeds (starting from 17dBA*2), the LGH-RVX3-E range is the ideal solution for meeting stringent sound level requirements. *2 LGH-15/25/35/50RVX3-E on lowest fan speed. Improved External Static Pressure External static pressure has been improved by up to 35Pa / 41%*3 compared to previous models, increasing both the flexibility of duct work design as well as the number of applications that can be catered for. *3 LGH-25RVX3-E model on highest fan speed. Dual Barrier Coating The patented and world’s first Dual Barrier Coating from Mitsubishi Electric prevents dust and dirt from accumulating on the interior of the Lossnay unit; helping to keep it clean for optimal performance all year-round. Keeping the heat exchanger clean is important for both home comfort and efficiency. Not only can dust and dirt build-up typically create unpleasant odours, it also significantly impairs heat exchanger efficiency. Dual Barrier Coating prevents dust and dirt build-up occurring, ensuring peace of mind and increased efficiency. VERTICAL Vertical Installation Using optional parts, the Lossnay RVX3 range can be installed vertically*4, expanding the number of installation possibilities. *4 LGH-RVX3160/200 are unable to be installed vertically WEEK 1 Weekly Timer Optimise airflow for each application with the new PZ-62DR-E*5 remote controller. The operation pattern for each day of the week, ON / OFF functionality, and air volume can be set using the weekly timer function (up to eight separate Start/ Stop patterns per day over a 7 day period). Compared to previous models, much finer control contributes to enhanced energy saving operation. With a wider range of air flow control, the Lossnay LGH-RVX3-e range enables optimised ventilation not just at different times of the day, but for different days of the week, enabling further energy savings. *5 PZ-62DR-E purchased separately. 2 Optimised Control with Optional CO2 Sensor Through the addition of optional Mitsubishi Electric CO2 sensors, CO2 levels can be detected, and airflow intuitively adjusted to ensure optimum air quality, no matter how many people are within the space. The system will continuously adjust the volume of fresh air changes until optimum CO2 levels are reached, with the system then reverting back to the original fan speed. Make Heat Recovery Ventilation Visible – with Optional Lossnay Wi-Fi Control Elevating air quality and maximising energy efficiencies within your commercial building has never been easier, because now the power is in your hands. Lossnay Wi-Fi Control allows you to see by how many degrees Lossnay is pre-warming or cooling your space in real time, helping you save on your power bill because less additional heating is required to get a room up to temperature. And in summer, monitor by how many degrees Lossnay reduces the average temperature in your space, using Automatic Free Cooling*6 Mode. The app will also proactively remind you when it is time to clean your filters to maximise both cost efficient operation and health benefits. Lossnay Wi-Fi Control truly is the smart evolution in fresh air ventilation. And with the option of an additional CO2 sensor, when connected with the optional Wi-Fi Control Interface, CO2 levels can be viewed in real-time making it ideal for schools, medical facilities and offices. * 6 In comparison to using a dedicated cooling device. The unit will continue to use a small amount of power to bring colder fresh air from outside. ©Mitsubishi Electric Corporation 1 ENERGY RECOVERY VENTILATORS LGH-RVX3 series

LGH-RVX3-E Commercial Series 25% (Default speed 1) 50% (Default speed 2) 75% (Default speed 3) 100% (Default speed 4) DUCT SIZE WEIGHT DIMENSIONS ELECTRICAL POWER SUPPLY Maximum Current FUSE RATING (BS88) - HRC (A) HEAT EXCHANGER STANDARD FILTER Air Volume External Static Pressure Temperature Exchange Efficiency Enthalpy Exchange Efficiency Specific Fan Power Input Power Sound Pressure Level Air Volume External Static Pressure Temperature Exchange Efficiency Enthalpy Exchange Efficiency Specific Fan Power Input Power Sound Pressure Level Air Volume External Static Pressure Temperature Exchange Efficiency Enthalpy Exchange Efficiency Specific Fan Power Input Power Sound Pressure Level Air Volume External Static Pressure Temperature Exchange Efficiency Enthalpy Exchange Efficiency Specific Fan Power Input Power Sound Pressure Level Width x Depth x Height m3/h l/s Pa Heating % Cooling % Heating % Cooling % W/(l/s) W dB(A) m3/h l/s Pa Heating % Cooling % Heating % Cooling % W/(l/s) W dB(A) m3/h l/s Pa Heating % Cooling % Heating % Cooling % W/(l/s) W dB(A) m3/h l/s Pa Heating % Cooling % Heating % Cooling % W/(l/s) W dB(A) mm kg mm A A LGH-15RVX3-E 38 10 8 81.5 78.0 80.5 68.0 0.96 10 17.0 75 21 30 78.0 73.5 76.5 61.0 0.72 15 18.0 113 31 68 75.5 70.5 73.5 57.0 0.96 30 22.0 150 42 120 73.5 65.5 70.5 52.5 1.32 55 27.0 100 20 780 x 610 x 289 0.57 6 LGH-25RVX3-E 63 17 8 88.0 85.0 84.0 73.0 0.63 11 17.0 125 35 30 81.0 79.0 75.5 65.0 0.60 21 19.5 188 52 68 78.5 76.5 72.0 60.5 0.81 42 25.0 250 69 120 75.5 70.5 69.0 56.0 1.08 75 30.5 150 22 780 x 735 x 289 0.88 6 LGH-35RVX3-E 88 24 10 82.0 79.0 80.0 69.5 0.62 15 17.0 175 49 40 79.0 74.0 77.5 63.5 0.60 29 19.0 263 73 90 77.0 71.0 74.5 59.5 0.84 61 24.5 350 97 160 75.0 66.5 72.0 55.0 1.23 120 30.5 150 30 888 x 874 x 331 1.37 6 LGH-50RVX3-E 125 35 10 75.0 73.0 73.0 65.0 0.43 15 17.0 250 69 38 73.5 71.0 72.0 60.0 0.49 34 21.0 375 104 85 71.5 67.0 69.5 55.0 0.78 81 27.0 500 139 150 70.5 63.5 68.5 51.5 1.33 185 35.0 200 33 888 x 1016 x 331 1.86 6 LGH-65RVX3-E 163 45 10 82.0 80.0 80.0 69.0 0.44 20 17.5 325 90 38 78.5 74.5 76.5 61.5 0.56 51 24.0 488 135 85 75.0 70.0 72.0 55.0 0.89 120 31.5 650 181 150 72.5 65.0 69.5 50.5 1.36 245 37.5 200 41 908 x 954 x 404 2.37 6 LGH-80RVX3-E 200 56 11 80.0 78.0 73.5 68.0 0.41 23 18.0 400 111 43 78.0 75.5 70.5 62.5 0.58 64 25.0 600 167 96 76.5 70.0 65.0 56.0 0.96 160 33.5 800 222 170 75.0 65.0 62.0 52.0 1.54 343 39.0 250 47 1144 x 1004 x 404 3.23 6 LGH-100RVX3-E 250 69 12 83.5 82.5 75.5 71.5 0.39 27 18.5 500 139 48 79.5 77.0 68.5 64.0 0.60 83 27.0 750 208 107 77.0 72.0 63.0 59.0 1.01 210 35.0 1000 278 190 75.5 67.5 60.5 53.5 1.58 438 40.0 250 53 1144 x 1231 x 404 3.77 6 LGH-160RVX3-E 400 111 11 80.0 78.0 73.5 68.0 0.41 45 18.0 800 222 43 78.0 75.5 70.5 62.5 0.58 128 26.0 1200 333 96 76.5 70.0 65.0 56.0 0.97 324 35.0 1600 444 170 75.0 65.0 62.0 52.0 1.55 687 41.0 (SA,RA)250 (OA,EA)270 x 700 96 1144 x 1004 x 808 4.74 10 LGH-200RVX3-E 500 139 11 83.5 82.5 76.0 70.0 0.41 57 18.0 1000 278 43 79.5 76.0 67.5 64.5 0.59 163 27.5 1500 417 96 77.5 71.5 64.0 59.5 1.00 416 36.0 2000 556 170 76.5 66.5 60.5 57.0 1.54 855 41.5 (SA,RA)250 (OA,EA)270 x 700 108 1144 x 1231 x 808 5.40 10 Notes: Running current, power consumption, recovery efficiency, and sound levels are based on the above default airflow rates at 25%, 50%, 75%, and 100%. Specific duty point data is available upon request. Supply and exhaust fan speeds can be individually commissioned between 25% and 100% in 5% increments. Sound Pressure Level measured at 1.5m under the centre of the bottom panel. Air flow rates, external static pressure and specific fan powers tested to BS EN13053: 2019. Energy recovery efficiencies tested to BS EN308: 2022. *1: EN 779 G4 equivalent according to 'REHVA Filter Class Conversion between EN 779 and EN ISO 16890-1'. MODEL PZ-100RF3-E (2 sets) PZ-100RFP3-E (2 sets) - KS4-KWH200RVX Remote Controller Filters Standard Replacement Filter (Coarse 60%) ePM1 75% CO2 Sensors Vertical Mounting Brackets Weather Proof Housings PZ-15RF3-E PZ-15RFP3-E PZ-1VS-E - LGH-15RVX3-E ACCESSORIES PZ-25RF3-E PZ-25RFP3-E PZ-1VS-E KS4-KWH25RVX LGH-25RVX3-E PZ-35RF3-E PZ-35RFP3-E PZ-1VS-E KS4-KWH35RVX LGH-35RVX3-E PZ-50RF3-E PZ-50RFP3-E PZ-1VS-E KS4-KWH50RVX LGH-50RVX3-E PZ-65RF3-E PZ-65RFP3-E PZ-2VS-E KS4-KWH65RVX PZ-62DR-EB LGH-65RVX3-E PZ-80RF3-E PZ-80RFP3-E PZ-2VS-E KS4-KWH80RVX LGH-80RVX3-E PZ-100RF3-E PZ-100RFP3-E PZ-2VS-E KS4-KWH100RVX LGH-100RVX3-E PZ-80RF3-E (2 sets) PZ-80RFP3-E (2 sets) - KS4-KWH150RVX LGH-160RVX3-E LGH-200RVX3-E 220-240V, 50Hz Paper with specially treated Cellulose Membrane ISO 16890 Coarse 60%*1 PZ-70CSW-E (Wall mounted) / PZ-70CSD-E (Duct mounted) Specifications

LGH-15RVX3-E DIMENSIONS LGH-25-100RVX3-E DIMENSIONS LGH-160RVX3-E DIMENSIONS LGH-200RVX3-E DIMENSIONS LGH-25RVX3-E LGH-35RVX3-E LGH-50RVX3-E LGH-65RVX3-E LGH-80RVX3-E LGH-100RVX3-E 780 888 888 908 1144 1144 A 735 874 1016 954 1004 1231 B 289 331 331 404 404 404 C 768 875 875 895 1131 1131 D 782 921 1063 1001 1051 1278 150 150 200 200 250 250 E DIMENSIONS MODEL NOMINAL DUCT DIAMETER CEILING SUSPENSION FIXTURE PITCH UNITED KINGDOM Mitsubishi Electric Europe Living Environment Systems Division, Travellers Lane, Hatfield, Hertfordshire, AL10 8XB, England. Telephone: 01707 282880 Fax: 01707 278881 IRELAND Mitsubishi Electric Europe, Westgate Business Park, Ballymount, Dublin 24, Ireland. Telephone: (01) 419 8800 Fax: (01) 419 8890 International code: (003531) Country of origin: United Kingdom - Italy - Turkey - Japan - Thailand - Malaysia. ©Mitsubishi Electric Europe 2023. Mitsubishi and Mitsubishi Electric are trademarks of Mitsubishi Electric Europe B.V. The company reserves the right to make any variation in technical specification to the equipment described, or to withdraw or replace products without prior notification or public announcement. Mitsubishi Electric is constantly developing and improving its products. All descriptions, illustrations, drawings and specifications in this publication present only general particulars and shall not form part of any contract. All goods are supplied subject to the Company’s General Conditions of Sale, a copy of which is available on request. Third-party product and brand names may be trademarks or registered trademarks of their respective owners. Note: Refer to ‘Installation Manual’ and ‘Instruction Book’ for further ‘Technical Information’. The fuse rating is for guidance only and please refer to the relevant databook for detailed specification. It is the responsibility of a qualified electrician/electrical engineer to select the correct cable size and fuse rating based on current regulation and site specific conditions. Mitsubishi Electric’s air conditioning equipment and heat pump systems contain a fluorinated greenhouse gas, R410A (GWP:2088), R32 (GWP:675), R407C (GWP:1774), R134a (GWP:1430), R513A (GWP:631), R454B (GWP:466), R1234ze (GWP:7) or R1234yf (GWP:4). *These GWP values are based on Regulation (EU) No 517/2014 from IPCC 4th edition. In case of Regulation (EU) No.626/2011 from IPCC 3rd edition, these are as follows. R410A (GWP:1975), R32 (GWP:550), R407C (GWP:1650) or R134a (GWP:1300). @meuk_les @green_gateway Mitsubishi Electric Living Environmental Systems UK Mitsubishi Electric Living Environmental Systems UK thehub.mitsubishielectric.co.uk greengateway.mitsubishielectric.co.uk Telephone: 01707 282880 email: air.conditioning@meuk.mee.com les.mitsubishielectric.co.uk Mitsubishi Electric Cooling and Heating UK mitsubishielectricuk_les Effective as of April 2023 LGH-RVX3-E Commercial Series Alternative duct position By-pass damper plate Ceiling suspension fixture (4-13×20 oval) RA (return air) SA (supply air) Air exhaust fan EA (exhaust air) OA (outside air) 768 65 65 30 289 780 64 64 102 782 115 735 530 20 30 Air supply fan Control box Maintenance cover 102 150 - 250 more than 600 Maintenance space for Core, air filter, HighEfficiency filter, fan Inspection opening 450 × 450 or more Optional High-Efficiency filter position Lossnay core ø142 ø160 Alternative duct position Air filter Power supply cable opening Alternative duct position By-pass damper plate Ceiling suspension fixture (4-13×20 oval) RA (return air) SA (supply air) Air exhaust fan EA (exhaust air) OA (outside air) Maintenance space for Core, air filter, HighEfficiency filter, fan 875 124 124 64 64 888 874 650 921 20 115 more than 600 150 - 250 Inspection opening 450 × 450 or more Air supply fan Control box Maintenance cover Optional High-Efficiency filter position Lossnay core Alternative duct position Air filter 55 ø142 ø160 Power supply cable opening 85 85 55 331 | Characteristic curves | Dimensions Model LGH-35RVX3-E | Specifications | Characteristic curves | Dimensions Unit: mm Unit: mm Fan speed 4 3 2 1 Test condition Default Airflow setting 100% 75% 50% 25% Input power (W) 75 42 21 11 ISO 16494-1: 2022 Airflow (m3/h) 250 188 125 63 (L/s) 69 52 35 17 Specific fan power [W/(L/s)] 1.08 0.81 0.60 0.63 External static pressure (Pa) 120 68 30 8 Temperature exchange efficiency (%) Heating 75.5 78.5 81.0 88.0 Cooling 70.5 76.5 79.0 85.0 Enthalpy exchange efficiency (%) Heating 69.0 72.0 75.5 84.0 Cooling 56.0 60.5 65.0 73.0 Noise (dB) (Measured at 1.5m under the center of the unit in an anechoic chamber) 30.5 25.0 19.5 17.0 A-weighted sound pressure level Exhaust air transfer ratio (%) 5 EN308:2022/FS3 Weight (kg) 22 Electrical power supply 220-240V/50Hz, 220V/60Hz Fan speed 4 3 2 1 Test condition Default Airflow setting 100% 75% 50% 25% Input power (W) 120 61 29 15 ISO 16494-1: 2022 Airflow (m3/h) 350 263 175 88 (L/s) 97 73 49 24 Specific fan power [W/(L/s)] 1.23 0.84 0.60 0.62 External static pressure (Pa) 160 90 40 10 Temperature exchange efficiency (%) Heating 75.0 77.0 79.0 82.0 Cooling 66.5 71.0 74.0 79.0 Enthalpy exchange efficiency (%) Heating 72.0 74.5 77.5 80.0 Cooling 55.0 59.5 63.5 69.5 Noise (dB) (Measured at 1.5m under the center of the unit in an anechoic chamber) 30.5 24.5 19.0 17.0 A-weighted sound pressure level Exhaust air transfer ratio (%) 5 EN308:2022/FS3 Weight (kg) 30 *The dotted lines of fan curve are reference value that cannot be measured. *The dotted lines of fan curve are reference value that cannot be measured. •For LGH-RVX3 series The input power, the efficiency and the noise are based on the rating air volume, 230V/50Hz and horizontal installation. 10 Alternative duct position Air exhaust fan By-pass damper plate RA (return air) EA (exhaust air) OA Maintenance space for Core, air filter, HighEfficiency filter, fan Inspection opening 450 × 450 or more (outside air) SA (supply air) Ceiling suspension fixture Air supply fan Control box Maintenance cover Lossnay core Alternative duct position Air filter Optional High-Efficiency filter position Power supply cable opening 768 119 119 780 54 ø97.5 ø110 54 658 115 450 150 - 250 50 more than 600 610 20 (4-13×20 oval) 65 65 50 289 3 2 1 Test condition 75% 50% 25% 30 15 10 ISO 16494-1: 2022 113 75 38 31 21 10 0.96 0.72 0.96 68 30 8 75.5 78.0 81.5 70.5 73.5 78.0 73.5 76.5 80.5 57.0 61.0 68.0 22.0 18.0 17.0 A-weighted sound pressure level 5 EN308:2022/FS3 20 | Dimensions Unit: mm ed. z and horizontal installation. 9 For more information please visit our website or call our Customer Service Team. www.mitsubishi-electric.co.nz | 0800 784 382 PRINTED MAY 2024 LGH-15RVX3-E DIMENSIONS LGH-25-100RVX3-E DIMENSIONS LGH-160RVX3-E DIMENSIONS LGH-200RVX3-E DIMENSIONS LGH-25RVX3-E LGH-35RVX3-E LGH-50RVX3-E LGH-65RVX3-E LGH-80RVX3-E LGH-100RVX3-E 780 888 888 908 1144 1144 A 735 874 1016 954 1004 1231 B 289 331 331 404 404 404 C 768 875 875 895 1131 1131 D 782 921 1063 1001 1051 1278 150 150 200 200 250 250 E DIMENSIONS MODEL NOMINAL DUCT DIAMETER CEILING SUSPENSION FIXTURE PITCH UNITED KINGDOM Mitsubishi Electric Europe Living Environment Systems Division, Travellers Lane, Hatfield, Hertfordshire, AL10 8XB, England. Telephone: 01707 282880 Fax: 01707 278881 IRELAND Mitsubishi Electric Europe, Westgate Business Park, Ballymount, Dublin 24, Ireland. Telephone: (01) 419 8800 Fax: (01) 419 8890 International code: (003531) Country of origin: United Kingdom - Italy - Turkey - Japan - Thailand - Malaysia. ©Mitsubishi Electric Europe 2023. Mitsubishi and Mitsubishi Electric are trademarks of Mitsubishi Electric Europe B.V. The company reserves the right to make any variation in technical specification to the equipment described, or to withdraw or replace products without prior notification or public announcement. Mitsubishi Electric is constantly developing and improving its products. All descriptions, illustrations, drawings and specifications in this publication present only general particulars and shall not form part of any contract. All goods are supplied subject to the Company’s General Conditions of Sale, a copy of which is available on request. Third-party product and brand names may be trademarks or registered trademarks of their respective owners. Note: Refer to ‘Installation Manual’ and ‘Instruction Book’ for further ‘Technical Information’. The fuse rating is for guidance only and please refer to the relevant databook for detailed specification. It is the responsibility of a qualified electrician/electrical engineer to select the correct cable size and fuse rating based on current regulation and site specific conditions. Mitsubishi Electric’s air conditioning equipment and heat pump systems contain a fluorinated greenhouse gas, R410A (GWP:2088), R32 (GWP:675), R407C (GWP:1774), R134a (GWP:1430), R513A (GWP:631), R454B (GWP:466), R1234ze (GWP:7) or R1234yf (GWP:4). *These GWP values are based on Regulation (EU) No 517/2014 from IPCC 4th edition. In case of Regulation (EU) No.626/2011 from IPCC 3rd edition, these are as follows. R410A (GWP:1975), R32 (GWP:550), R407C (GWP:1650) or R134a (GWP:1300). @meuk_les @green_gateway Mitsubishi Electric Living Environmental Systems UK Mitsubishi Electric Living Environmental Systems UK thehub.mitsubishielectric.co.uk greengateway.mitsubishielectric.co.uk Telephone: 01707 282880 email: air.conditioning@meuk.mee.com les.mitsubishielectric.co.uk Mitsubishi Electric Cooling and Heating UK mitsubishielectricuk_les Effective as of April 2023 LGH-RVX3-E Commercial Series Alternative duct position By-pass damper plate Ceiling suspension fixture (4-13×20 oval) RA (return air) SA (supply air) Air exhaust fan EA (exhaust air) OA (outside air) Maintenance space for Core, air filter, HighEfficiency filter, fan Inspection opening 450 × 450 or more more than 600 1016 745 30 875 124 124 1063 150 - 250 20 Air supply fan Air filter Control box Maintenance cover Optional High-Efficiency filter position Lossnay core 79 79 888 Alternative duct position ø192 ø208 Power supply cable opening 115 85 85 30 331 Alternative duct position By-pass damper plate Ceiling suspension fixture (4-13×20 oval) Air exhaust fan RA (return air) SA (supply air) EA (exhaust air) OA (outside air) Maintenance space for Core, air filter, HighEfficiency filter, fan more than 600 954 692 1001 115 20 40 895 124 124 79 79 908 Inspection opening 450 × 450 or more 150 - 250 Air supply fan Control box Maintenance cover Optional High-Efficiency filter position Lossnay core Air filter Alternative duct position ø192 ø208 Power supply cable opening 70 70 40 404 Specifications & Dimensions LGH-65RVX3-E | Dimensions | Dimensions ISO 16494-1: 2022 69 35 0.49 0.43 38 10 73.5 75.0 71.0 73.0 72.0 73.0 60.0 65.0 21.0 17.0 A-weighted sound pressure level 5 EN308:2022/FS3 33 220-240V/50Hz, 220V/60Hz 2 1 Test condition 50% 25% 51 20 EN13053: 2019 325 163 90 45 0.56 0.44 38 10 78.5 82.0 EN308: 2022 74.5 80.0 76.5 80.0 61.5 69.0 24.0 17.5 A-weighted sound pressure level 5 EN308:2022/FS3 41 Unit: mm Unit: mm horizontal installation. 11 By-pass damper plate Ceiling suspension fixture (4-15×30 oval) Air exhaust fan RA (return air) SA (supply air) EA (exhaust air) OA (outside air) Maintenance space for Core, air filter, HighEfficiency filter, fan more than 600 Inspection opening 450 × 450 or more 1010 40 404 808 40 1144 44 79 1004 1045 115 690 690 26 270 270 700 40 150 - 250 Air supply fan Control box Maintenance cover Lossnay core Optional High-Efficiency filter position ø242 ø258 ø242 ø258 Air filter Power supply cable opening Ceiling suspension fixture (4-15×30 oval) By-pass damper plate Air exhaust fan RA (return air) SA (supply air) EA (exhaust air) OA (outside air) Maintenance space for Core, air filter, HighEfficiency filter, fan Inspection opening 450 × 450 or more more than 600 1010 1144 44 79 270 270 700 40 1231 1272 26 917 917 150 - 250 Air supply fan Control box Maintenance cover Lossnay core Optional High-Efficiency filter position ø242 ø258 ø242 ø258 Air filter 40 404 808 40 115 Power supply cable opening Specifications & Dimensions Model LGH-200RVX3-E | Specifications | Characteristic curves | Characteristic curves | Dimensions | Dimensions Unit: mm Unit: mm Electrical power supply 220-240V/50Hz, 220V/60Hz Fan speed 4 3 2 1 Test condition Default Airflow setting 100% 75% 50% 25% Input power (W) 855 416 163 57 EN13053: 2019 Airflow (m3/h) 2000 1500 1000 500 (L/s) 556 417 278 139 Specific fan power [W/(L/s)] 1.54 1.00 0.59 0.41 External static pressure (Pa) 170 96 43 11 Temperature exchange efficiency (%) Heating 76.5 77.5 79.5 83.5 EN308: 2022 Cooling 66.5 71.5 76.0 82.5 Enthalpy exchange efficiency (%) Heating 60.5 64.0 67.5 76.0 Cooling 57.0 59.5 64.5 70.0 Noise (dB) (Measured at 1.5m under the center of the unit in an anechoic chamber) 41.5 36.0 27.5 16.0 A-weighted sound pressure level Exhaust air transfer ratio (%) 5 EN308:2022/FS3 Weight (kg) 108 EN13053: 2019 Airflow (L/s) 444 333 222 111 Specific fan power [W/(L/s)] 1.55 0.97 0.58 0.41 External static pressure (Pa) 170 96 43 11 Temperature exchange efficiency (%) Heating 75.0 76.5 78.0 80.0 EN308: 2022 Cooling 65.0 70.0 75.5 78.0 Enthalpy exchange efficiency (%) Heating 62.0 65.0 70.5 73.5 Cooling 52.0 56.0 62.5 68.0 Noise (dB) (Measured at 1.5m under the center of the unit in an anechoic chamber) 41.0 35.0 26.0 18.0 A-weighted sound pressure level Exhaust air transfer ratio (%) 5 EN308:2022/FS3 Weight (kg) 96 *The dotted lines of fan curve are reference value that cannot be measured. •For LGH-RVX3 series The input power, the efficiency and the noise are based on the rating air volume, 230V/50Hz and horizontal installation. *The dotted lines of fan curve are reference value that cannot be measured. 13 Specifications MODEL DIMENSIONS CEILING SUSPENSION FIXTURE PITCH NOMINAL DUCT DIAMETER A B C D E LGH-15RVX3-E 780 610 289 768 658 150 LGH-25RVX3-E 780 735 289 768 782 150 LGH-35RVX3-E 888 874 331 875 921 150 LGH-50RVX3-E 888 1016 331 875 1063 200 LGH-65RVX3-E 908 954 404 895 1001 200 LGH-80RVX3-E 1144 1004 404 1131 1051 250 LGH-100RVX3-E 1144 1231 404 1131 1278 250 MODEL DIMENSIONS CEILING SUSPENSION FIXTURE PITCH NOMINAL DUCT DIAMETER A B C D E LGH-160RVX3-E 908 954 404 895 1001 250 (SA, RA) 270x700 (OA, EA) LGH-200RVX3-E 1144 1231 808 1010 1272 250 (SA, RA) 270x700 (OA, EA) LGH-15RVX3-E DIMENSIONS LGH-160RVX3-E DIMENSIONS LGH-25RVX3-E - LGH-100RVX3-E DIMENSIONS LGH-200RVX3-E - LGH-100RVX3-E DIMENSIONS A A B B C C D D E E A A B B C C D D E E
