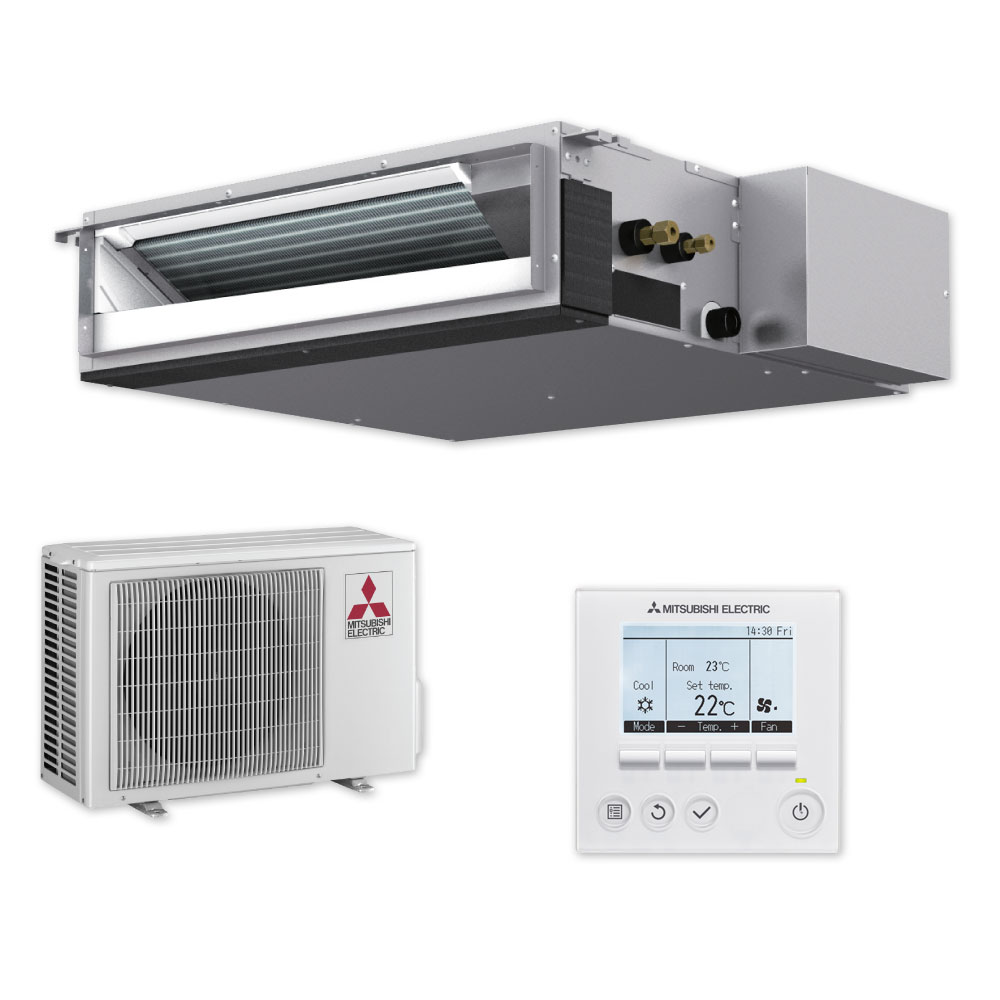

Concealed SEZ35 Heat Pump

Medium Room System // SEZ-KD35VAQ

Our Concealed SEZ35 heat pump unit is conveniently hidden in the ceiling cavity with only the grilles visible. Perfect if you have a bulkhead or lowered ceiling. This unit is ideal if you are looking to discreetly heat a smaller room. Upgraded with a Deluxe PAR wired Controller, with backlit LCD display and user-friendly menus. With the PAR Controller you are able to precisely control power consumption and temperature, setting up to eight patterns per day.

Cooling Capacity3.7 kW
Heating Capacity4.2 kW

Features

Compact Design

Our ceiling concealed unit is a slim 200mm in height, making it ideal for tight installation spaces.

Impressively Quiet

Our ceiling concealed SEZ series offers whisper quiet operation starting at a hushed 23dB. This ensures a calm and comfortable environment. They’re so quiet that you’ll find yourself checking to see if they’re on!

Energy Saving

With low electricity consumption, our ceiling concealed SEZ Series is the key to cost-effective room comfort.

Air Cleaning Filter

This built-in filter removes dust and other particulates, keeping the air clean all the time. Maintenance is as simple as vacuuming.

Deluxe PAR Weekly Controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation.
You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.

Click here to find out more

Specifications

SEZ-KD35VAQR2.TH - DC Inverter Ceiling Concealed

· Function: Cooling/Heating · Type: Single Split, Inverter
· Capacity - Cooling: 3.7 kW · Capacity - Heating: 4.2 kW
· Capacity - Cooling (min. - max.): 1.0 - 3.9 kW · Capacity - Heating (min. - max.): 0.9 - 5.0 kW
· Power Input - Cooling: 1.09 kW · Power Input - Heating: 1.13 kW
· EER / COP: 3.39 / 3.72 · AEER / ACOP: 3.31 / 3.63
· Sensible - Cooling: 2.56 kW
· Operation Range - Cooling: -10 / +46°C · Operation Range - Heating: -10 / +24°C
· Sound Level - Cooling (Low - Mid - High, dB(A)): 23 - 28 - 33 · Sound Level - Heating (Low - Mid - High, dB(A)): 23 - 28 - 33
· Current - Cooling [in+outdoor] (Rated / Max.): 5.12 / 9.9 A · Current - Heating [in+outdoor] (Rated / Max.): 5.21 / 9.9 A
· Air Volume - Cooling (High, Litre/sec): 183 · Air Volume - Heating (High, Litre/sec): 183
· Refrigerant: R410A · Liquid Pipe Size (OD, mm): 6.35
· Gas Pipe Size (OD, mm): 9.52 · Max. Pipe Length (m): 20
· Max. Pipe Height (m): 12 · Power Supply: 230V +/- 10% / Single Phase / 50 Hz
· Dimensions (WxDxH, mm): 900 x 700 x 200 · Weight: 21 kg
· External Static Pressure: 5 - 15 - 35 - 50 Pa · Optional Drain Pump: PAC-KE07DM-E

SUZ-KA35VAD2.TH-A - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -10 / +46°C · Operation Range - Heating: -15 / +24°C
· Sound Level - Cooling (dB(A)): 49 · Sound Level - Heating (dB(A)): 50
· Air Volume - Cooling (Litre/sec): 588 · Air Volume - Heating (Litre/sec): 585
· Power Supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid Pipe Size (OD, mm): 6.35 · Gas Pipe Size (OD, mm): 9.52
· Max. Pipe Length (m): 20 · Max. Pipe Height (m): 12
· Dimensions (WxDxH, mm): 800 x 285 x 550 · Weight: 35 kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]

Downloads

Support

Optional

Optional Accessories

This drain lift pump is available as an option on Ceiling Concealed Series units.
The award-winning MAC-568IF-E Wi-Fi Interface connects discreetly to your heat pump’s control board and should only be installed by an authorised installer. The MAC-568IF-E Wi-Fi Interface is available on Mitsubishi Electric High Wall, Floor Mounted, and Ducted Heat Pumps, and can either be purchased as an optional upgrade at time of purchase, or retrofitted to an existing Mitsubishi Electric model.
