Concealed SEZ71 Heat Pump

Large Room System // SEZ-KD71VAQ

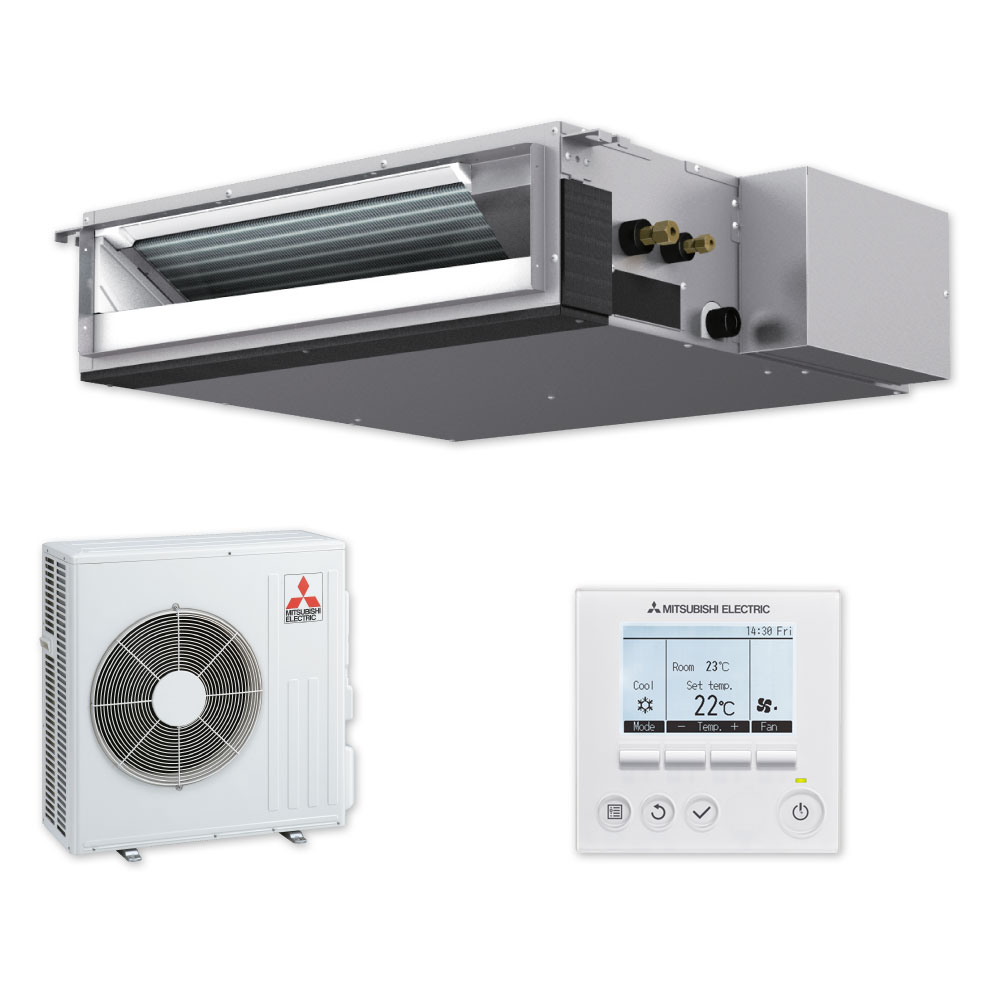

Our Concealed SEZ71 heat pump unit is conveniently hidden in the ceiling cavity with only the grilles visible. Perfect if you have a bulkhead or lowered ceiling. This unit is ideal if you are looking to discreetly heat a large area. Upgraded with a Deluxe PAR31 wired Controller, with backlit LCD display and user friendly menus. With the PAR31 you are able to precisely control power consumption and temperature, setting up to eight patterns per day.

Cooling Capacity7.1 kW
Heating Capacity8.1 kW
Select a Size
Select a Contoller

Features

Compact Design

Our ceiling concealed unit is a slim 200mm in height, making it ideal for tight installation spaces.

Impressively Quiet

Our ceiling concealed SEZ series offers whisper quiet operation starting at a hushed 23dB. This ensures a calm and comfortable environment. They’re so quiet that you’ll find yourself checking to see if they’re on!

Energy Saving

With low electricity consumption, our ceiling concealed SEZ Series is the key to cost-effective room comfort.

Air Cleaning Filter

This built-in filter removes dust and other particulates, keeping the air clean all the time. Maintenance is as simple as vacuuming.

Deluxe PAR31 Weekly Controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.

Click here to find out more

Specifications

SEZ-KD71VAQR2.TH - DC Inverter Ceiling Concealed

· Function: Cooling/Heating · Type: Single Split, Inverter
· Capacity - Cooling: 7.1 kW · Capacity - Heating: 8.1 kW
· Capacity - Cooling (min. - max.): 0.9 - 8.3 kW · Capacity - Heating (min. - max.): 0.9 - 10.4 kW
· Power input - Cooling: 2.53 kW · Power input - Heating: 2.37 kW
· EER / COP: 3.01 / 3.72 · AEER / ACOP: 2.97 / 3.66
· Sensible - Cooling: 4.97 kW
· Operation Range - Cooling: -15 / +43°C · Operation Range - Heating: -15 / +24°C
· Sound Level - Cooling (Low - Mid - High, dB(A)): 30 - 35 - 40 · Sound Level - Heating (Low - Mid - High, dB(A)): 30 - 35 - 40
· Current - Cooling [in+outdoor] (Rated / Max.): 11.25 / 17.23 A · Current - Heating [in+outdoor] (Rated / Max.): 10.74 / 17.23A
· Air volume - Cooling (High, Litre/sec): 333 · Air volume - Heating (High, Litre/sec): 333
· Refrigerant: R410A · Liquid pipe size (OD, mm): 9.52
· Gas pipe size (OD, mm): 15.88 · Max. pipe length (m): 30
· Max. pipe height (m): 30 · Power supply: 230V +/- 10% / Single Phase / 50 Hz
· Dimensions (WxDxH, mm): 1100 x 700 x 200 · Weight: 27 kg
· External Static Pressure: 5 - 15 - 35 - 50 Pa · Optional Drain Pump: PAC-KE07DM-E

SUZ-KA71VAD.TH-A - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -15 / +43°C · Operation Range - Heating: -15 / +24°C
· Sound Level - Cooling (dB(A)): 55 · Sound Level - Heating (dB(A)): 55
· Air volume - Cooling (Litre/sec): 835 · Air volume - Heating (Litre/sec): 800
· Power supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid pipe size (OD, mm): 9.52 · Gas pipe size (OD, mm): 15.88
· Max. pipe length (m): 30 · Max. pipe height (m): 30
· Dimensions (WxDxH, mm): 840 x 330 x 880 · Weight: 53 kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

Downloads

Support

Optional

Optional Accessories

This drain lift pump is available as an option on Ceiling Concealed Series units.
The award-winning MAC-568IF-E Wi-Fi Interface connects discreetly to your heat pump’s control board and should only be installed by an authorised installer. The MAC-568IF-E Wi-Fi Interface is available on Mitsubishi Electric High Wall, Floor Mounted, and Ducted Heat Pumps, and can either be purchased as an optional upgrade at time of purchase, or retrofitted to an existing Mitsubishi Electric model.

Connect multiple indoor units to a single outdoor unit.

This system gives you the freedom to select the indoor model best suited to each and every room in your home. Multi-Split Systems are designed to allow multiple indoor units of varying capacity and type to be connected to just one outdoor unit, enhancing exterior aesthetics by reducing the number of outdoor units required.

SEZ-KD71VAQ Indoor Unit can be connected to the following Multi Room Systems.

Multi-Split system outdoor unit. (WxDxH, mm): 950x 330 x 796. Cooling/Heating capacity: 8.0/8.8kW. Weight: 63kg. Liquid / Gas Pipe (OD, mm): 6.35 x4 / 9.52 x3 + 12.7 x1. Requires a minimum combination of 1 and a maximum of 4 indoor units (up to Class 71), with max. class total of 145.
Multi-Split system outdoor unit. (WxDxH, mm): 950 x 330 x 796. Cooling/Heating capacity: 10.0/10.0kW. Weight: 64kg. Liquid / Gas Pipe (OD, mm): 6.35 x5 / 9.52 x4 + 12.7 x1. Requires a minimum combination of 2 and a maximum of 5 indoor units (up to Class 71), with max. class total of 171.
Multi-Split system outdoor unit. (WxDxH, mm): 950 x 330 x 1048. Cooling/Heating capacity: 12.0/13.2kW. Weight: 88kg. Liquid / Gas Pipe (OD, mm): 6.35 x6 / 9.52 x5 + 12.7 x1. Requires a minimum combination of 2 and a maximum of 6 indoor units (up to Class 80), with max. class total of 180.
Multi-Split system outdoor unit. (WxDxH, mm): 1050 x 330 x 1338. Cooling/Heating capacity: 14.0/16.0kW. Weight: 125kg. Liquid / Gas Pipe (OD, mm): 9.52 / 15.88. Requires a minimum combination of 2 and a maximum of 8 indoor units (upto Class 100), with max. class total of 182. Central Branch Box(s): When installing two Branch Boxes, use Brazing or Flare Tee for dual Branch Box Connection.
Multi-Split system outdoor unit. (WxDxH, mm): 1050 x 330 x 1338. Cooling/Heating capacity: 15.5/18.0kW. Weight: 125kg. Liquid / Gas Pipe (OD, mm): 9.52 / 15.88. Requires a minimum combination of 2 and a maximum of 8 indoor units (upto Class 100), with max. class total of 201. Central Branch Box(s): When installing two Branch Boxes, use Brazing or Flare Tee for dual Branch Box Connection.
