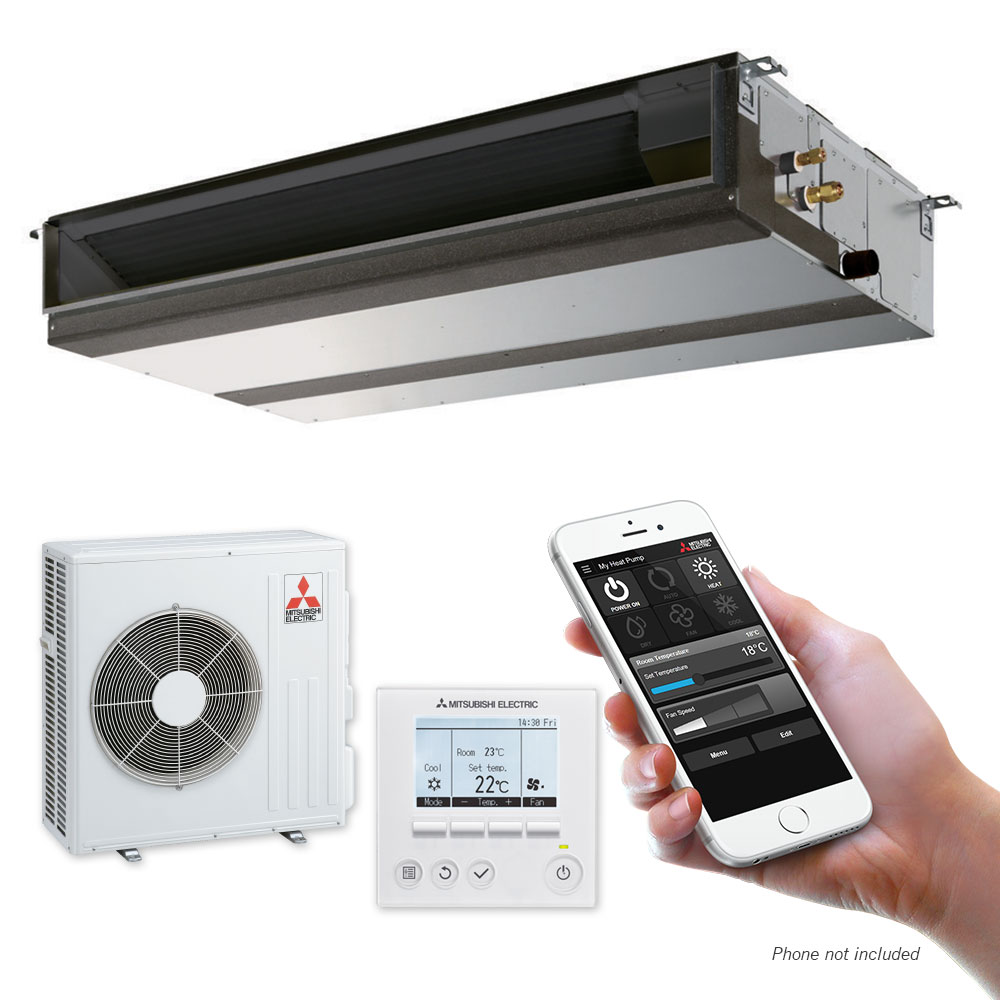

Ducted PEAD 71 Heat Pump with Wi-Fi

Large Room System // PEAD-RP71JAA + MAC-568IF-E

Our low profile ducted PEAD 71 has a wide range of static pressures, that allows airflow to be directed to different areas of your home or office with ease. This unit is ideal for heating or cooling a number of rooms. Includes PAR wired Controller. The Wi-Fi range comes equipped with a Wi-Fi Control Interface (supplied separately) allows you to control and monitor your heat pump from anywhere via your smartphone, tablet or online account.

Cooling Capacity7.1 kW
Heating Capacity8.0 kW
Select a Size
Select a Controller

Features

Low Profile Design

Our low profile ducted systems at 250mm in height are specifically designed for installation in tight ceiling spaces.

Wide Range of Static Pressures with 3 Fan Speeds

Selectable external static pressure of 35, 50, 70, 100 and 125 Pa with 3 fan speeds allowing a wide range of installation possibilities.

Includes the Wi-Fi Control Interface

Locally developed to suit the busy lifestyles of New Zealanders, award-winning Wi-Fi Control unlocks the door to smarter heating. This innovative technology allows you to control or monitor your heat pump from anywhere via your smartphone, tablet or online account. Wi-Fi Control allows you to control your system remotely, develop operating rules, and set minimum and maximum room temperatures for healthy and comfortable living.

Read more and try a demonstration

Optional Zone Controller Upgrade

Transform your ducted system. With the ability to control up to 8 zones, expanded functionality and interaction, intuitive airflow control, and temperature, occupancy and brightness sensors – the PAC-ZC Zone Controller brings intuitive, yet simple control to a whole new level.

Click here for optional Zone Controllers

Features:

Specifications

PEAD-RP71JAA - Power Inverter Ceiling-Concealed

· Function: Cooling/Heating · Type: Single Split, Inverter
· Capacity - Cooling: 7.1 kW · Capacity - Heating: 8.0 kW
· Capacity - Cooling (min. - max.): 0.9 - 8.1 kW · Capacity - Heating (min. - max.): 0.9 - 10.2 kW
· Power Input - Cooling: 2.1 kW · Power Input - Heating: 2.04 kW
· EER / COP: 3.38 / 4.14 · AEER / ACOP: 3.33 / 4.08
· Operation Range - Cooling: -10 / +46°C · Operation Range - Heating: -15 / +21°C
· Airflow (Lo-Hi, Litre/sec): 292-350-417 · Sound Level (Lo-Hi, dB(A)): 30-34-39
· Current Indoor - Cooling (Running): 1.17 A · Current Indoor - Heating (Running): 1.17 A
· Power Supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid Pipe Size (OD, mm): 9.52 · Gas Pipe Size (OD, mm): 15.88
· Max. Pipe Length (m): 30 · Max. Pipe Height (m): 30
· Dimensions (WxDxH, mm): 1,100 x 732 x 250 · Weight: 29 kg
· External Static Pressure: 35-50-70-100-125 Pa · Note: Capacity ratings are based on the outdoor unit SUZ-KA71VA3 only.
· Note:

PUHZ-RP71VHA5R1-A - DC Deluxe Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Power Inverter
· Capacity - Cooling: 7.1 kW · Capacity - Heating: 7.6 - 8.4 kW [*1]
· Operation Range - Cooling: -5 (-15*) / +46°C · Operation Range - Heating: -20 / +21°C
· Sound Level - Cooling (dB(A)): 47 · Sound Level - Heating (dB(A)): 48
· Sound Level - Silent Mode (dB(A)): 44 · Airflow (Litre/sec): 917
· Current - Cooling Outdoor (Rated / Max.): 8.04 / 19.0 A · Current - Heating Outdoor (Rated / Max.): 9.74 / 19.0 A
· Power Supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid Pipe Size (OD, mm): 9.52 · Gas Pipe Size (OD, mm): 15.88
· Max. Pipe Length (m): 50 · Max. Pipe Height (m): 30
· Dimensions (WxDxH, mm): 950 x 330(+30) x 943 · Weight: 67 kg
· [*]: -15°C in cooling when using an optional outdoor air outlet guide PAC-SG59SG-E. · [*1]: For correct capacity please refer to indoor unit.

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]

Downloads

Support

Optional

Optional Accessories

PAC-ZC40L-E :: PAC-ZC40L-E Zone Controller
The PAC-ZC40L-E Zone Controller brings to fruition expanded functionality and interaction to realise even greater energy savings. With the ability to control up to 4 zones, and equipped with Intuitve Airflow Control and three built in sensor functions (temperature, occupancy, brightness), the PAC-ZC40L-E Zone Controller brings intuitive, yet simple control to a whole new level. The PAC-ZC40L-E Zone Controller is compatible with 24V dampers only.
PAC-ZC40H-E :: PAC-ZC40H-E Zone Controller
The PAC-ZC40H-E Zone Controller brings to fruition expanded functionality and interaction to realise even greater energy savings. With the ability to control up to 4 zones, and equipped with Intuitve Airflow Control and three built in sensor functions (temperature, occupancy, brightness), the PAC-ZC40H-E Zone Controller brings intuitive, yet simple control to a whole new level. The PAC-ZC40H-E Zone Controller is compatible with 240V dampers only.
PAC-ZC80L-E :: PAC-ZC80L-E Zone Controller
The PAC-ZC80L-E Zone Controller brings to fruition expanded functionality and interaction to realise even greater energy savings. With the ability to control up to 8 zones, and equipped with Intuitve Airflow Control and three built in sensor functions (temperature, occupancy, brightness), the PAC-ZC80L-E Zone Controller brings intuitive, yet simple control to a whole new level. The PAC-ZC80L-E Zone Controller is compatible with 24V dampers only.
PAC-ZC80H-E :: PAC-ZC80H-E Zone Controller
The PAC-ZC80H-E Zone Controller brings to fruition expanded functionality and interaction to realise even greater energy savings. With the ability to control up to 8 zones, and equipped with Intuitve Airflow Control and three built in sensor functions (temperature, occupancy, brightness), the PAC-ZC80H-E Zone Controller brings intuitive, yet simple control to a whole new level. The PAC-ZC80H-E Zone Controller is compatible with 240V dampers only.
