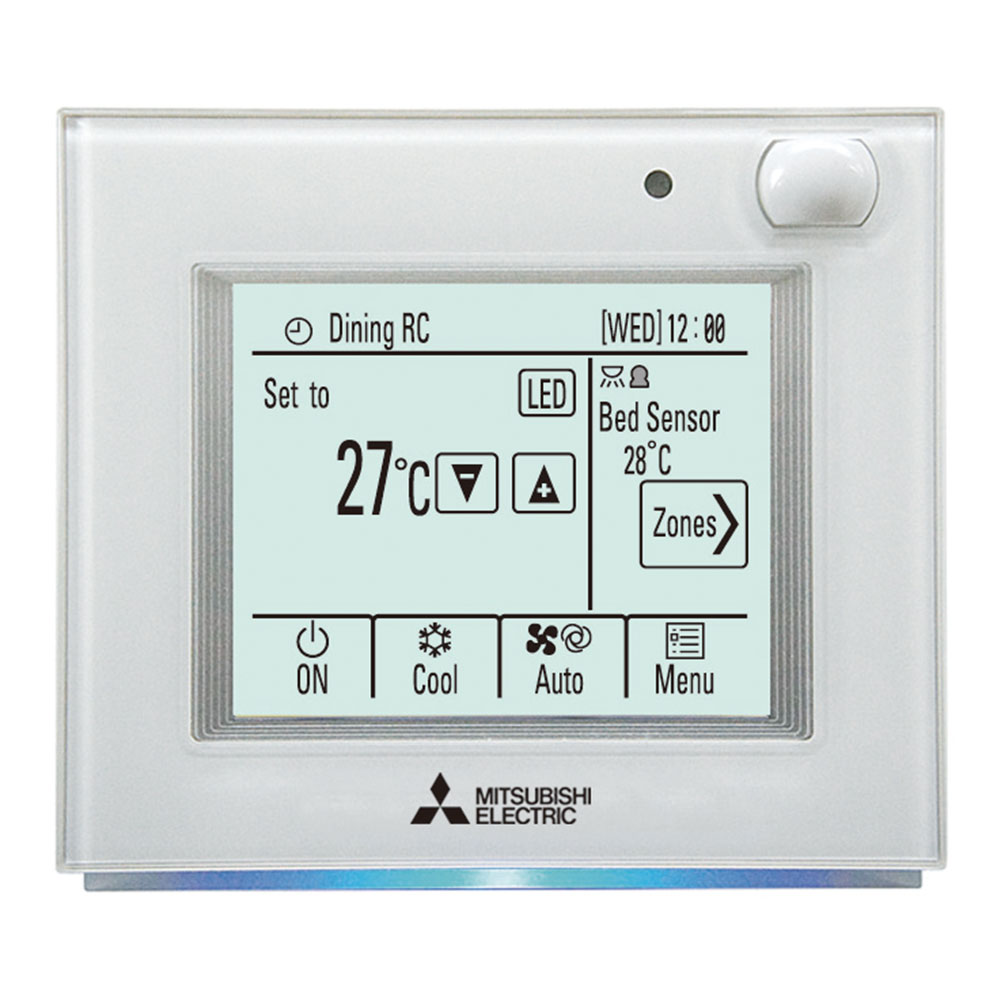

PAR-ZC01M-E LCD Touch Controller

PAR-ZC01M-E

The PAR-ZC01M-E LCD Touch Controller with backlit LCD touch screen allows you to program up to eight separate start/stop patterns per day over a week. Other advanced functions include an occupancy sensor and brightness sensor for increased energy saving, and an inbuilt temperature thermostat to allow the actual usable space temperature to be measured, offering more realistic and timely temperature measurement where it is needed most.

Features

Backlit LCD Touch Screen

The PAR-ZC01ME-E Wired Wall Controller features a full dot liquid crystal display (LCD), backlit touch screen, and simple menus for easy operation. For ease of use the user defined coloured LED indicator (at the bottom of the controller) lights up to indicate the current operation mode i.e. Red for Heating, Blue for Cooling, Green for Night Setback.

Weekly Timer

The PAR-ZC01ME-E Wired Wall Controller allows you to set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.

Temperature Sensor

Sensing the return air of the indoor ducted unit is not always ideal. With an inbuilt thermostat the PAR-ZC01ME-E Wall Controller allows the actual usable space temperature to be measured, offering more realistic and timely temperature measurement where it is needed most.

Occupancy Sensor

Incorporating a built in occupancy sensor, the PAR-ZC01ME-E Wall Controller constantly monitors the usable area to detect vacancy. When used in conjunction with a PAC-ZC Zone Control Interface, one of 4 user defined energy-save control options can be implemented when occupancy is detected to reduce energy consumption; turn the unit On/Off, lower the fan speed, temperature offset, or turn user designated zones On/Off.

Brightness Sensor

Working in conjunction with the Occupancy Sensor, the Brightness Sensor can be set to maximise energy savings when it detects user defined “Light” or “Dark” conditions (lux values), extending on the inbuilt energy saving principles (connection to a PAC-ZC Zonce Control Interface required).

Temperature Range Restriction

Via the PAR-ZC01ME-E, you can limit the maximum and minimum temperature settings preventing overheating or overcooling. In house testing has established that using a temperature within 1°C results in a 10% reduction in power. This controller also comes with an operation lock.

Night Setback

To prevent indoor dew or excessive temperature rise, the PAR-ZC01ME-E can be set to start the heating operation when the control object group is stopped and the room temperature drops below the preset lower limit temperature. Converselt, it can also be set to start the cooling operation when the control object group is stopped and the room temperature rises above the preset upper limit temperature.

*Temperature range and night setback mode availability depends on heat pump model. Please confirm mode availability where this feature is critical to design.

Auto Return

This function helps to maintain the indoor temperature at the required level. Even if the temperature setting is changed during operation, the set temperature automatically returns to the originally preset temperature after certain amount of time. It is possible to set the required temperature for limited time (30-120 min. in 10-minute increments).
