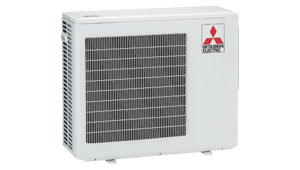

Multi-Split system outdoor unit. (WxDxH, mm): 840 x 330 x 710. Cooling/Heating capacity: 7.1/8.6kW. Weight: 58kg. Liquid / Gas Pipe (OD, mm): 6.35 x4 / 9.52 x3 + 12.7 x1. Requires a minimum combination of 2 and a maximum of 4 indoor units(upto Class 60), with max. class total of 125.
| · | Function: Cooling/Heating | · | Type: Multi Split, Inverter |
| · | Multi-Split System Compatible: Yes | · | Number of indoor units: 2, 3 or 4 |
| · | Capacity - Cooling: 7.1 kW | · | Capacity - Heating: 8.6 kW |
| · | Capacity - Cooling (min. - max.): 3.7 - 8.8 kW | · | Capacity - Heating (min. - max.): 3.4 - 9.0 kW |
| · | Power Input - Cooling: 1.930 kW | · | Power Input - Heating: 1.950 kW |
| · | EER - Cooling: 3.44 | · | COP - Heating: 4.13 |
| · | Operation Range - Cooling: -10 / +43°C | · | Operation Range - Heating: -15 / +24°C |
| · | Sound Level - Cooling (dB(A)): 45 - 48 | · | Sound Level - Heating (dB(A)): 48 - 50 |
| · | Current - Cooling (Rated / Max.): 8.48 / 20 A | · | Current - Heating (Rated / Max.): 8.56 / 20 A |
| · | Air Volume - Cooling (Litre/sec): 702 | · | Air Volume - Heating (Litre/sec): 775 |
| · | Refrigerant: R410A | · | Liquid Pipe Size (OD, mm): 6.35 x4 |
| · | Gas Pipe Size (OD, mm): 9.52 x3 + 12.7 x1 | · | Max. Pipe Length (m): 60 total / 25 each |
| · | Max. Pipe Height (m): 15 | · | Power Supply: 230V +/- 10% / Single Phase / 50 Hz |
| · | Dimensions (WxDxH, mm): 840 x 330 x 710 | · | Weight: 58 kg |
| · | [*1]: If the outdoor is installed higher than the indoor max. height is reduced to 10m. | ||
