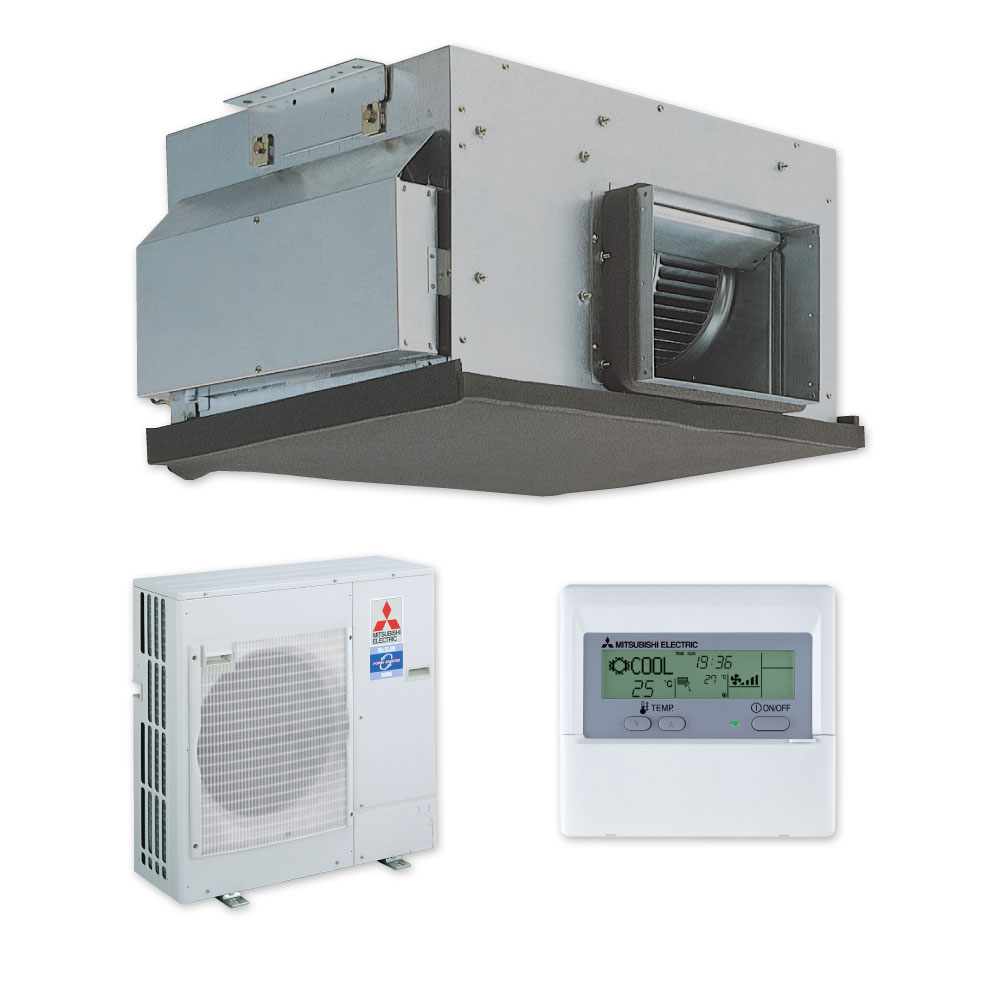

Ducted PEA71 Heat Pump

PEA-RP71EAQ

Our Ducted PEA71 is a high-pressure system that allows airflow to be directed to different areas of your home or office with ease. This unit is ideal for heating or cooling a smaller number of rooms. Comes standard with a Classic PAR21 wired weekly controller and are able to precisely control power consumption and temperature, setting up to eight patterns per day.

Discontinued Product

Features

Unobtrusive, Whole Home Heating

Our ducted systems are specifically designed for installation in ceiling spaces. Ideal for large residences or offices, ducted units are the ultimate hidden heating and cooling solution with only grilles visible.

Easy Installation

Versatile and easy installation is possible; for example, it is possible to adjust the distance between the air-intake and air-outlet vents to create the optimal airflow configuration.

Ideal Airflow

The flexible duct design and high-pressure of our ducted systems increase variation in airflow options ensuring the system operates in a way that best suits virtually all room layouts.

PAR21 Weekly Controller

With liquid crystal display technology and large screen, you are able to establish your unit’s operation status at a glance. You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.
Click here to find out more

Specifications

PEA-RP71EAQ - Power Inverter Ducted / Ceiling-Concealed

· Function: Cooling/Heating · Type: Single Split, Inverter
· Capacity - Cooling: 7.1 kW · Capacity - Heating: 8.4 kW
· Capacity - Cooling (min. - max.): 3.3 - 8.1 kW · Capacity - Heating (min. - max.): 3.5 - 10.2 kW
· Power input - Cooling: 2.48 kW · Power input - Heating: 2.51 kW
· EER - Cooling: 2.86 · COP - Heating: 3.35
· Operation Range - Cooling: -5 (-15*) / +46°C · Operation Range - Heating: -11 / +21°C
· Airflow (Lo-Hi, Litre/sec): 367-450 · Sound Level (Lo-Hi, dB(A)): 52-55
· Current Indoor - Cooling (Running): 1.66 A · Current Indoor - Heating (Running): 1.66 A
· Power supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid pipe size (OD, mm): 9.52 · Gas pipe size (OD, mm): 15.88
· Max. pipe length (m): 50 · Max. pipe height (m): 30
· Dimensions (WxDxH, mm): 785 x 690 x 428 · Weight: 46 kg
· External Static Pressure: 125 Pa · Note: Capacity ratings are based on the deluxe outdoor unit PUHZ-RP71VHA only.
· [*]: -15°C in cooling when using an optional outdoor air outlet guide PAC-SG59SG-E.

PUHZ-RP71VHA5-A - DC Deluxe Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Power Inverter
· Capacity - Cooling: 7.1 kW · Capacity - Heating: 7.6 - 8.4 kW [*1]
· Operation Range - Cooling: -5 (-15*) / +46°C · Operation Range - Heating: -20 / +21°C
· Sound Level - Cooling (dB(A)): 47 · Sound Level - Heating (dB(A)): 48
· Airflow (Litre/sec): 917 · Current - Cooling Outdoor (Rated / Max.): 8.04 / 19.0 A
· Current - Heating Outdoor (Rated / Max.): 9.74 / 19.0 A · Power supply: 230V +/- 10% / Single Phase / 50 Hz
· Refrigerant: R410A · Liquid pipe size (OD, mm): 9.52
· Gas pipe size (OD, mm): 15.88 · Max. pipe length (m): 50
· Max. pipe height (m): 30 · Dimensions (WxDxH, mm): 950 x 330(+30) x 943
· Weight: 67 kg · [*]: -15°C in cooling when using an optional outdoor air outlet guide PAC-SG59SG-E.
· [*1]: For correct capacity please refer to indoor unit.
