EACV-M1500-2000YCL(-N)(-BS)

Air-Sourced Cooling Only Chillers
Comfort or Process Applications
150 kW, 180 kW and 200 kW Capacity

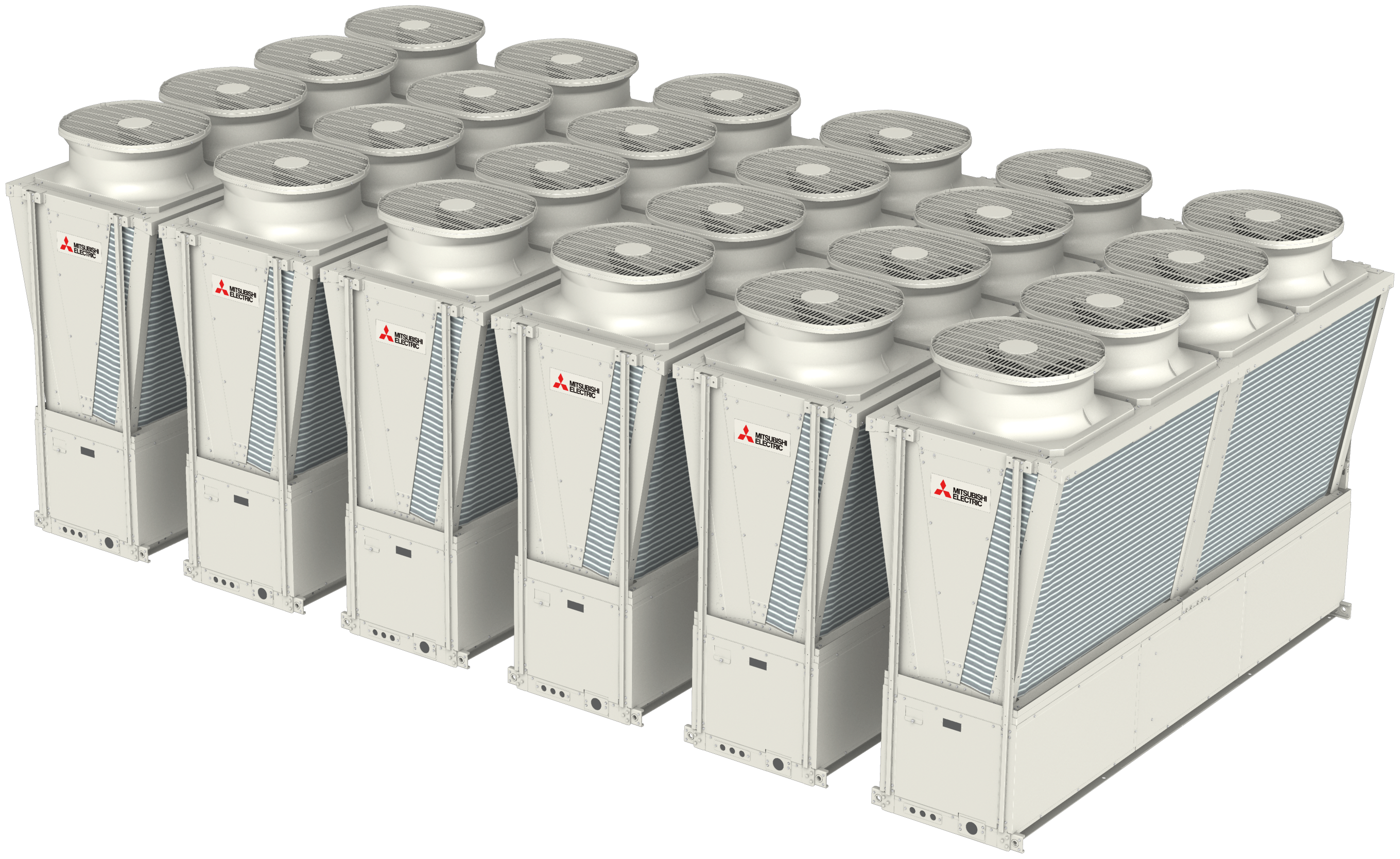

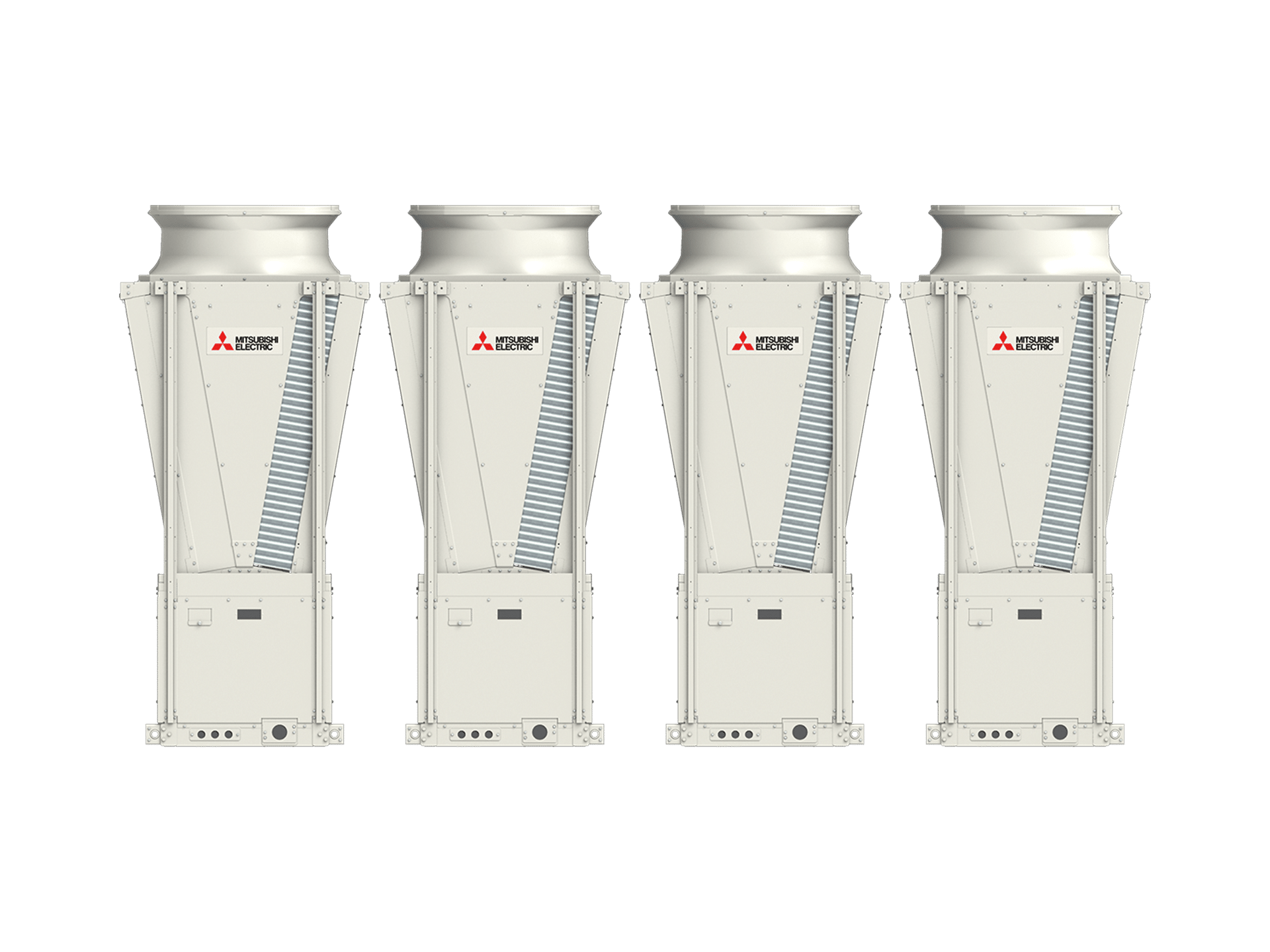

Up to 6 Modules per Group
R32 Refrigerant
4°C to 30°C Chilled Water Production

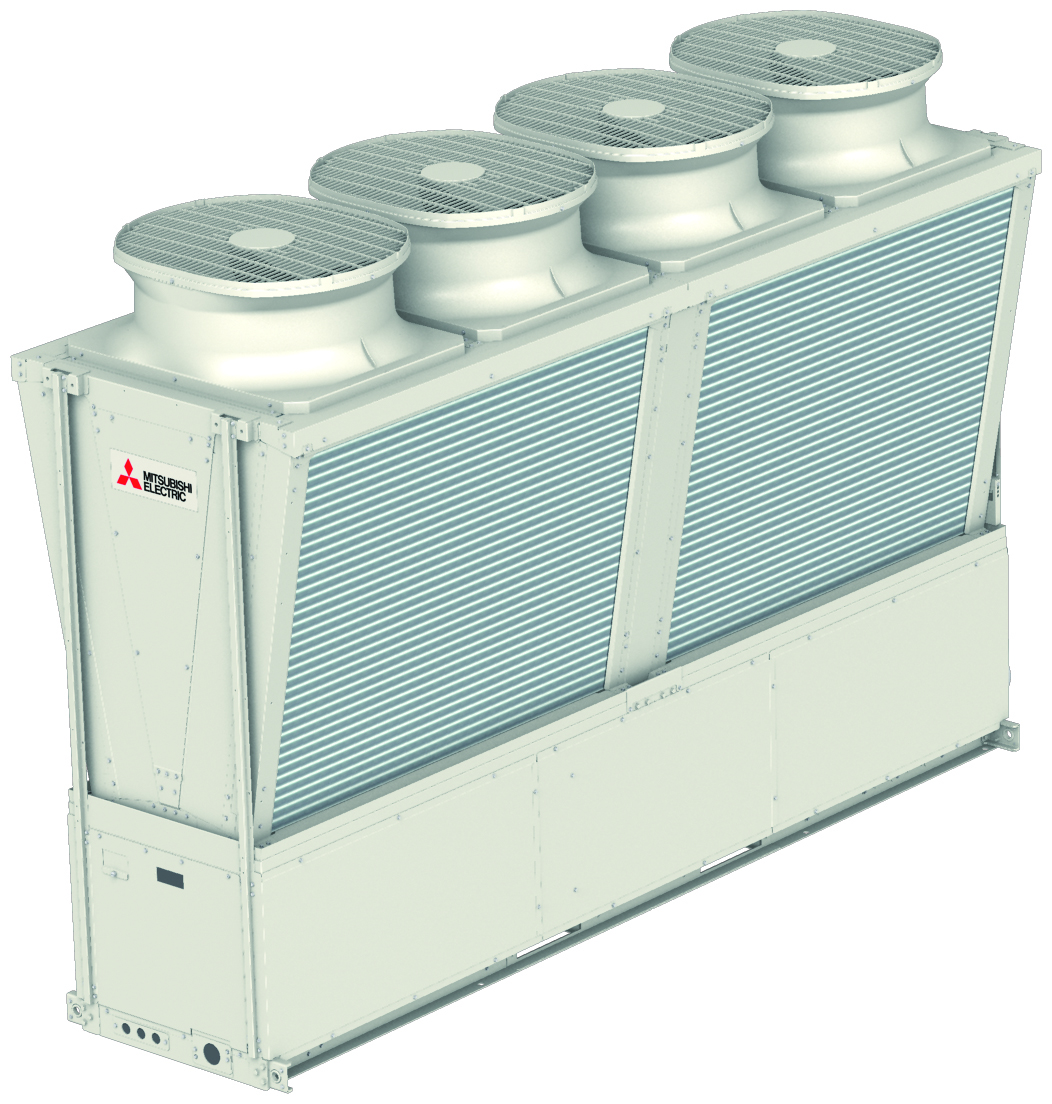

Available in 150 kW, 180 kW and 200 kW capacities, the Mitsubishi Electric R32 e-Series Air-Sourced Chilling Units are designed to deliver high-efficiency cooling with reduced environmental impact.

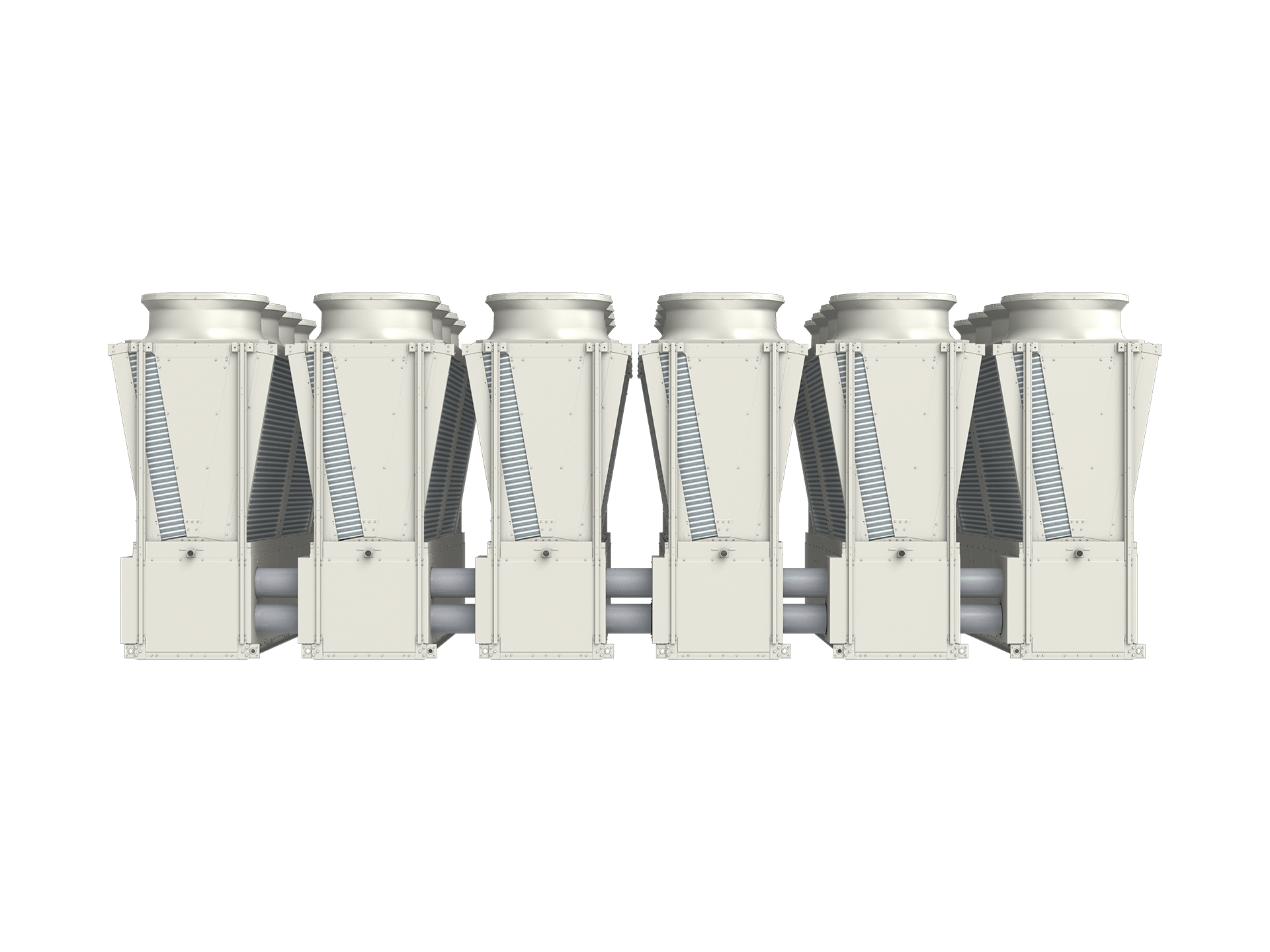

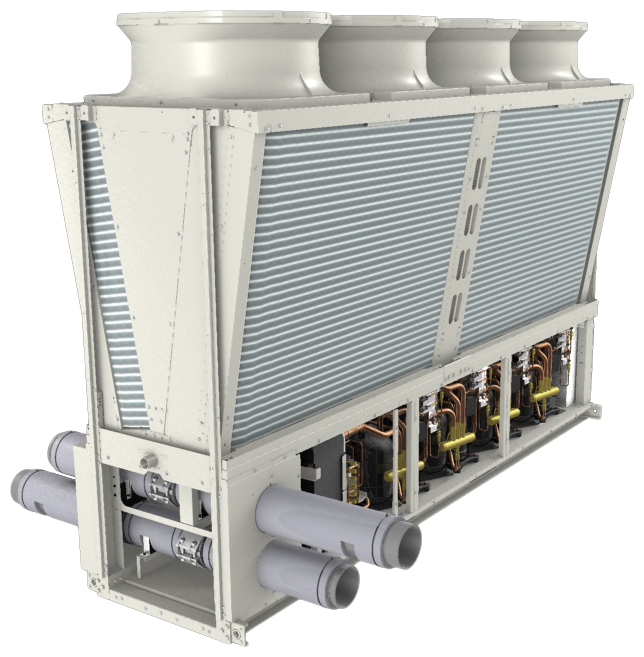

Available in a -N version with built-in header piping to simplify installation and reduce piping requirements, and a -BS version with additional anti-corrosion protection.

This range of R32 air-sourced chilling units features inverter scroll hermetic compressors and aluminium microchannel flat tube heat exchangers, and comes standard with: optimum frequency control, modular operation with up to 6 units per group and a maximum of 24 units per system, rotation control, cooling operation at outdoor temperatures from -15°C to 52°C, chilled water outlet temperatures from 4°C to 30°C (subject to operating conditions), induction heating compressor warming, individual module operation during maintenance, external signal input for ON/OFF, operating mode and water temperature settings, M-NET communication, high-pressure protection, inverter circuit protection and compressor overheat protection.

Optional control via PAR-W31MAA remote controller or AE-C400 centralised controller, with BACnet connectivity available through the AE-C400 or MelcoBEMS MINI.
