PKFY-WL VKM-E // Mitsubishi Electric

PKFY-WL VKM-E

Flow Control Valve Optional
5.6-9.0 kW Cooling
6.3-10.0 kW Heating

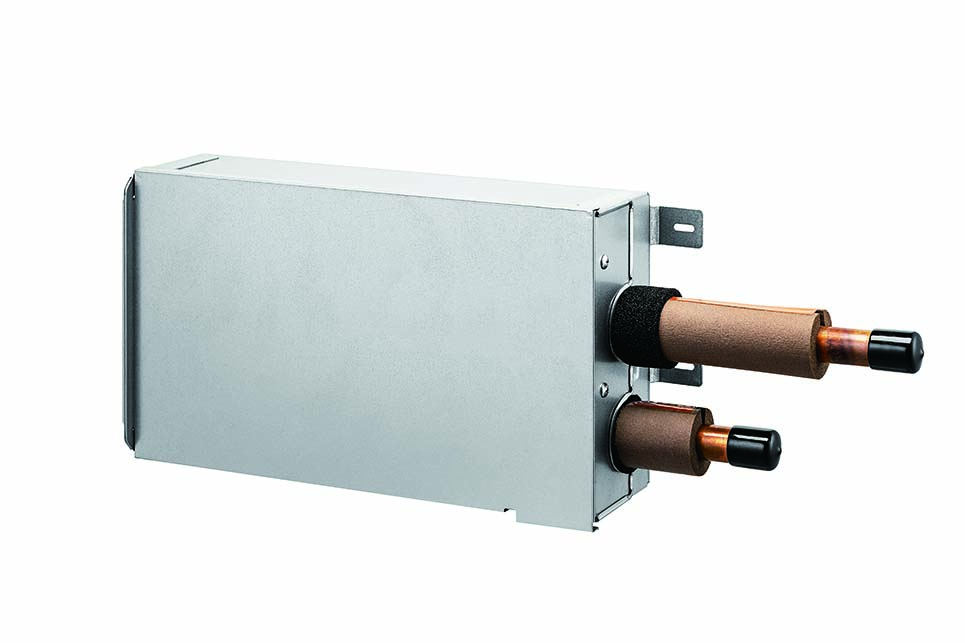

Requires the optional PAC-SK35VK-E Flow Control Valve if power apportioning is required.

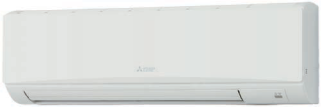

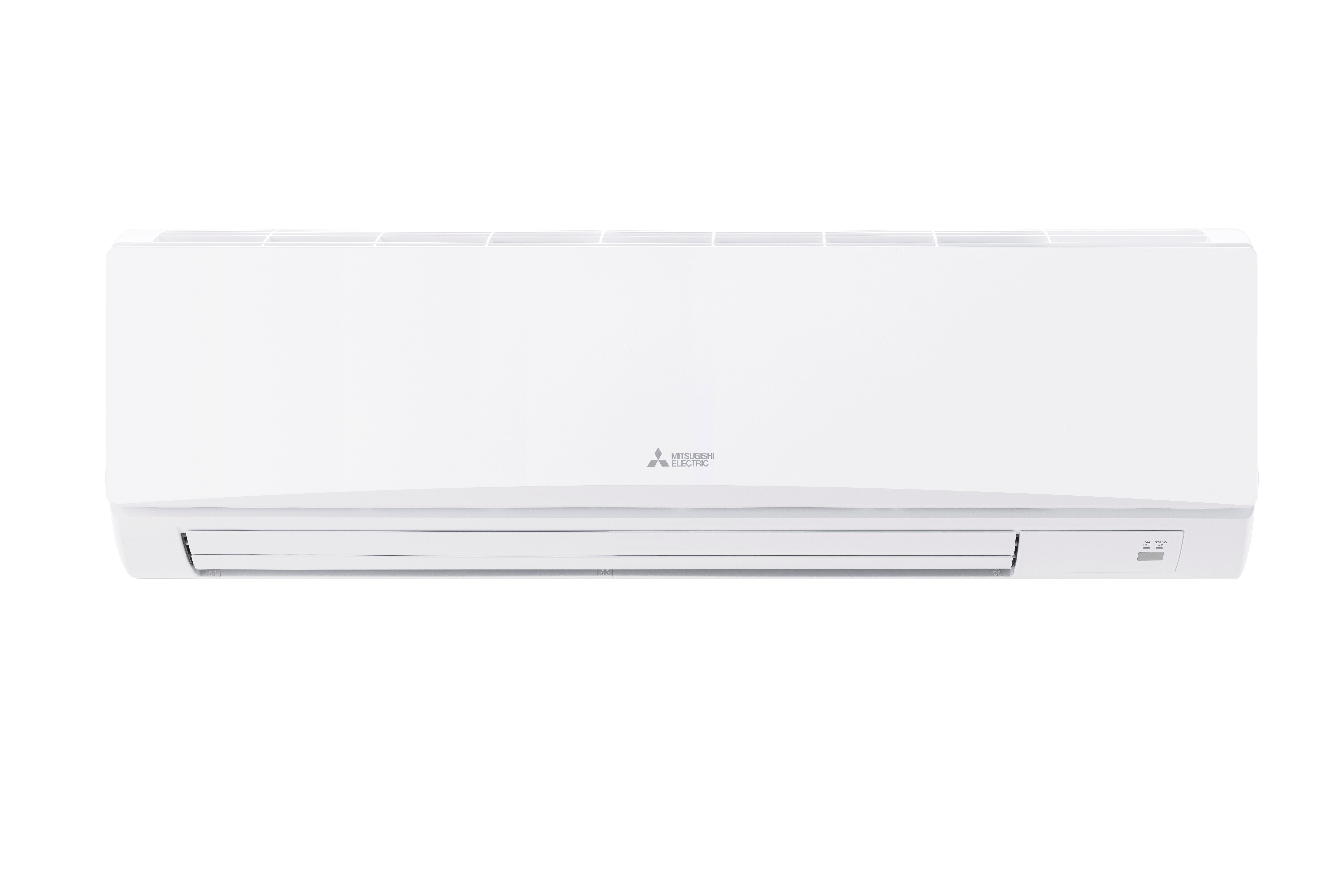

This range of large-capacity R32 Hybrid Wall Mount Indoor Units come standard with: 2 fan speed levels, 4 vane settings + auto, swing function, dry operation, dual set point, auto restart after power failure, and a filter cleaning indicator. A 850mm head drain pump is available as an optional upgrade.

Downloads

Specifications

SPC PKFY-WL VKM-E Specifications.pdf

Databook

DB PKFY-WL VKM-E MEES21K114.pdf - Login required

Manuals

Operation

OM PKFY-WL VKM-E RH79A086H02.pdf

Installation

IM PKFY-WL VKM-E RH79A087H01.pdf - Login required

Service

SM PKFY-WL VKM-E(R1) OCH759A.pdf - Login required
