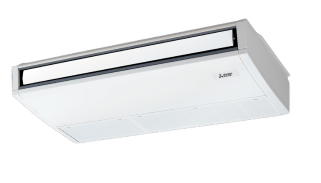

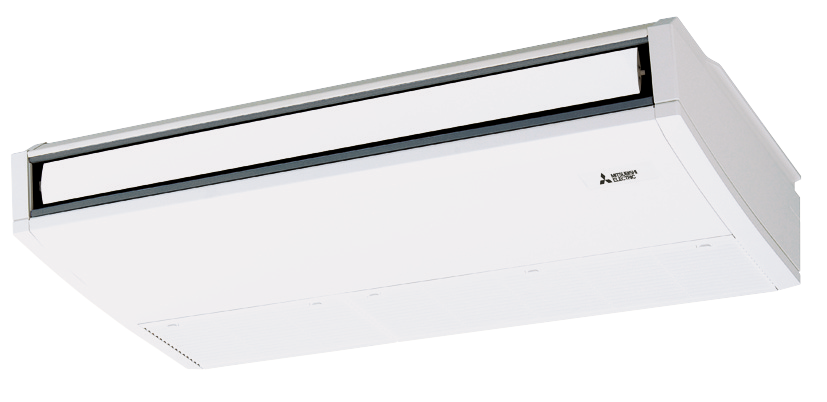

PCFY-WL VKM-E

PCFY-WL VKM-E

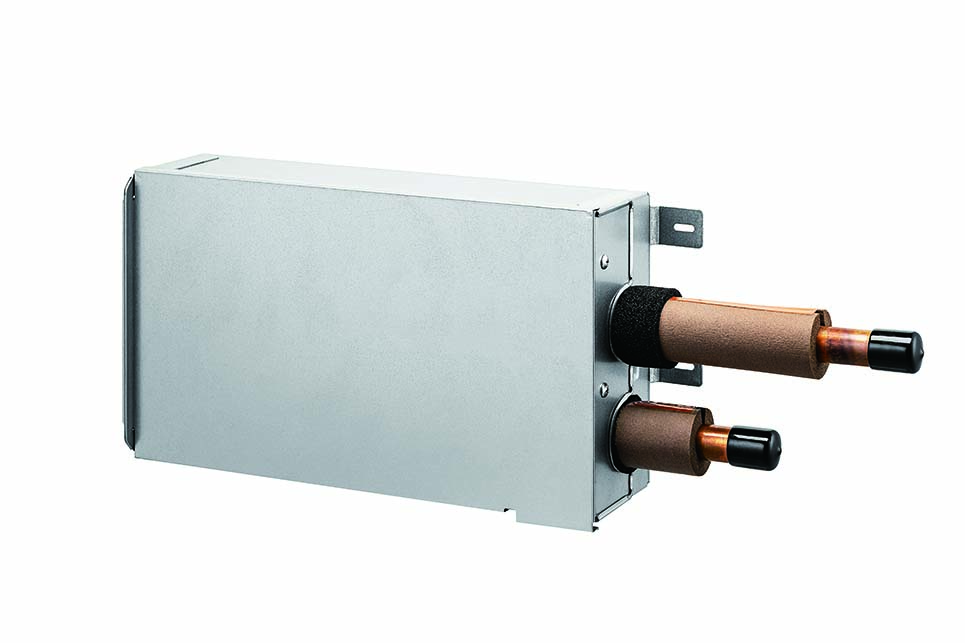

Flow Control Valve Optional
4.5-11.2 kW Cooling
5.0-12.5 kW Heating

Requires the optional PAC-SK35VK-E Flow Control Valve if power apportioning is required.

This range of R32 Hybrid under ceiling indoor units come standard with: 4 fan speed levels + auto, 5 vane settings + auto, swing function, dry operation, dual set point, auto restart after power failure and a filter cleaning indicator. Optional upgrades include a high-efficiency filter and 600mm head drain pump.

Downloads

Operation

Installation

Service

Parts

  • FAN PCFY-WL VKM-E OA Intake Static Pressure Curves.pdf -
  • FAN PCFY-WL VKM-E Temperature Airflow Distributions.pdf -
