EcodanPro Hot Water and Hydronic Heat Pumps

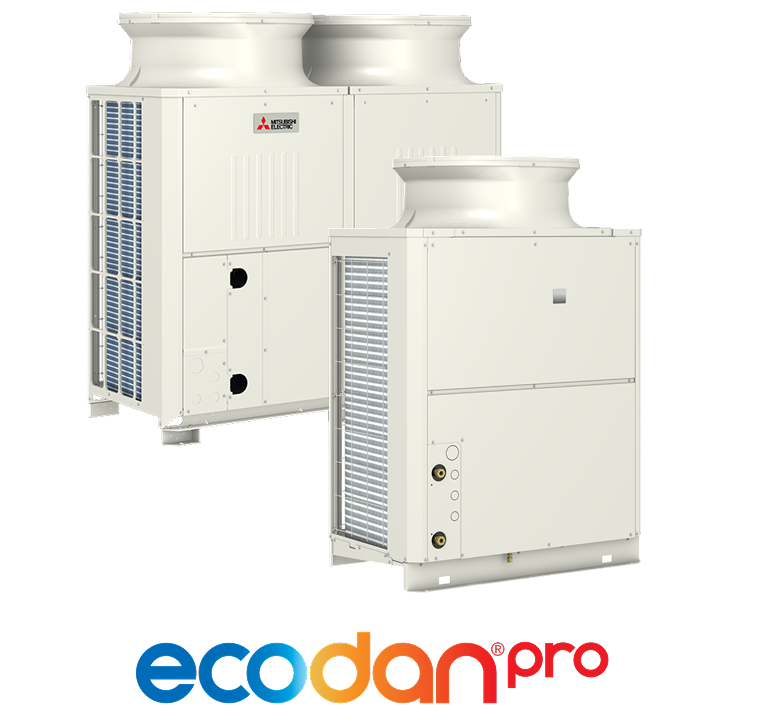

The Mitsubishi Electric EcodanPro Range of commercial air source heat pumps delivers high-efficiency solutions for hot water and hydronic heating applications. EcodanPro combines high flow temperatures, low-GWP refrigerants and reliable low-ambient performance to provide an energy-efficient alternative to traditional fossil-fuel heating systems.

Send an enquiry Open in filters
Filters

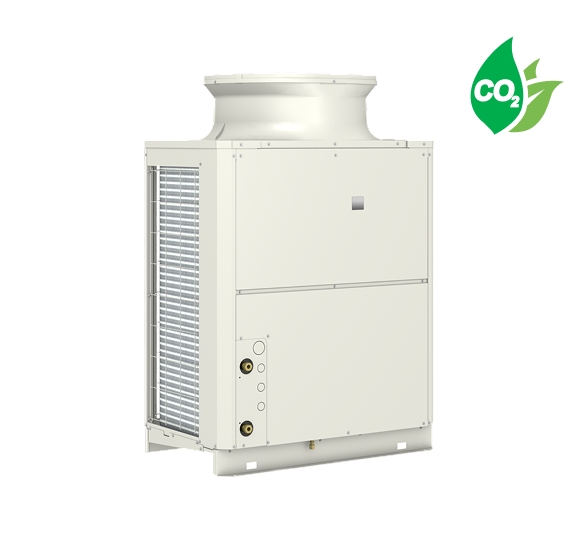

QAHV-N560YA-HPB

Air source CO2 heat pump for the generation of potable hot water 40kW (Heating only single unit) 640kW (Heating only 16x grouped units Refrigerant: R744 (GWP 1) Flow Temp Range: 55°C to 90°C COP: 3.88

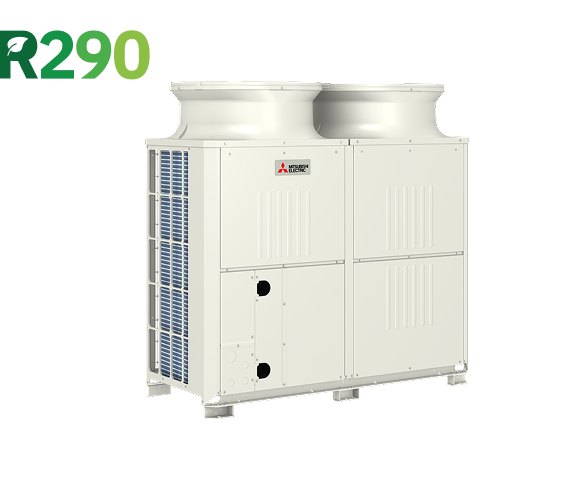

CAHV-Z450YA-HPB

Air source heat pump for space heating and sanitary hot water 40kW (Heat only) Refrigerant: R290 (GWP 3) Flow Temp Range: 24.0°C to 75°C
CAHV-R450YA-HPB

Air source heat pump for space heating and sanitary hot water 40kW (Heating only) Refrigerant: R454C (GWP 148) Flow Temp Range: 5.0°C to 70°C

Case Studies

Commercial Case Studies
Commercial Case Studies
New Zealand`s commercial case studies for Architects, Engineers, Contractors and Building owners.
