Three35 Lincoln Road

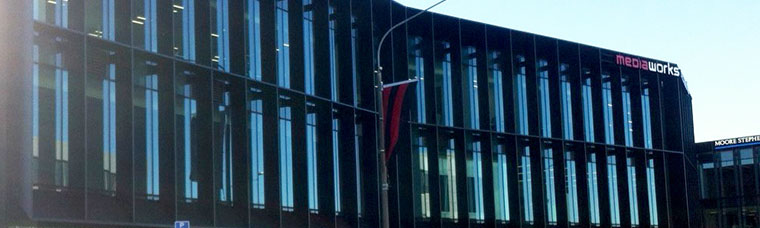

Large scale office development located on the fringe of the Christchurch CBD, this 5500sqm commercial office precinct development focused on high quality urban design and the creation of a great workplace. The precinct consists of two three-story buildings.

The Bernard Street building consists of a ground floor allocated to retail space, café, bar and restaurant facilities and two floors of office space. The second building is 50% tenanted by MediaWorks Canterbury, and the remainder of the building is dedicated to office space.

The Challenge

The goal of this project was to provide a complete heating, air-conditioning and ventilation system, incorporating the latest in energy efficiency technologies and heat recovery ventilators. It was also important to offer a complete control solution for time scheduling, fault monitoring and energy consumption reporting with full remote connectivity.

The Solution

City Multi R2 series simultaneous heating and cooling systems were selected for this project, complemented by Lossnay heat recovery ventilators to meet the fresh air requirements of the building. Two AG150 Touch Screen Controllers were incorporated into this project, as was a central TG2000 computer monitoring both buildings providing high level control, temperature trending and power monitoring.

Total Capacity

Heating Capacity: 791 Kw
Cooling Capacity: 713 kW

Outdoor Units

10 x PURY-YJM-A Heat Recovery Units

Indoor Units

92 x PEFY-VMA-E Ducted Unit

Ventilation

31 x LGH-RX5-E Lossnay Heat Recovery Ventilators

Air Handler Units

3 x PAC-AH400M-J AHU Controller Unit

Wall Controllers

89 x PAR-31MAA Remote Controls

Central Controllers

1 x AG-150A Central Controllers
1 x TG2000 PC

Contractor

Beattie Air

Publications

Published: Friday, 20 March 2015
