PEFY-P VMX(L)-E1

Ceiling concealed type - Compact depth type
Compact depth design and three air inlet positions offer flexible installation. The line-up consists of up to P63 with the same depth.

Models

PEFY-P15VMX-E1

1.7kW / 1.9kW

PEFY-P20VMX-E1

2.2kW / 2.5kW

PEFY-P25VMX-E1

2.8kW / 3.2kW

PEFY-P32VMX-E1

3.6kW / 4.0kW

PEFY-P40VMX-E1

4.5kW / 5.0kW

PEFY-P50VMX-E1

5.6kW / 6.3kW

PEFY-P63VMX-E1

7.1kW / 8.0kW

Note: Above capacity ratings are all nominal rated.

Features

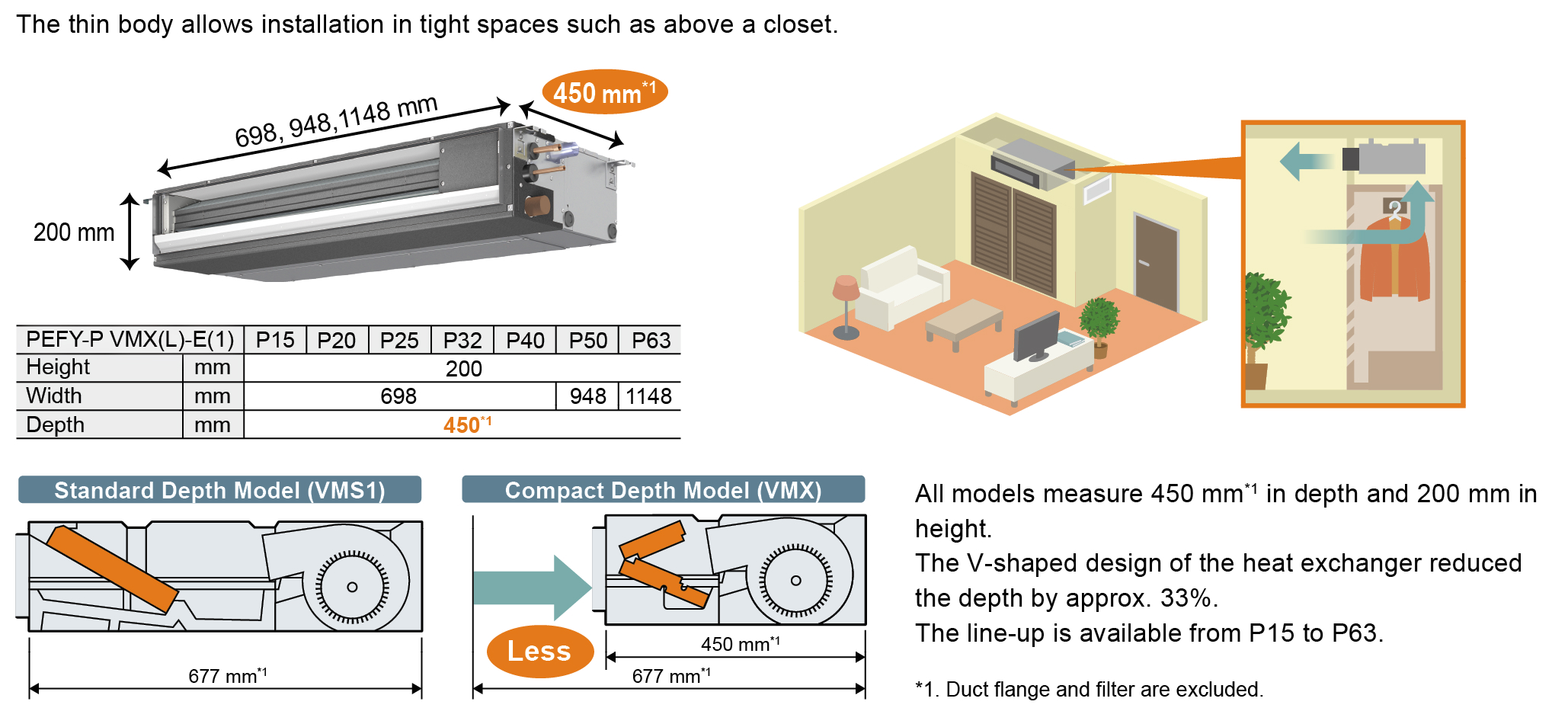

Compact Design

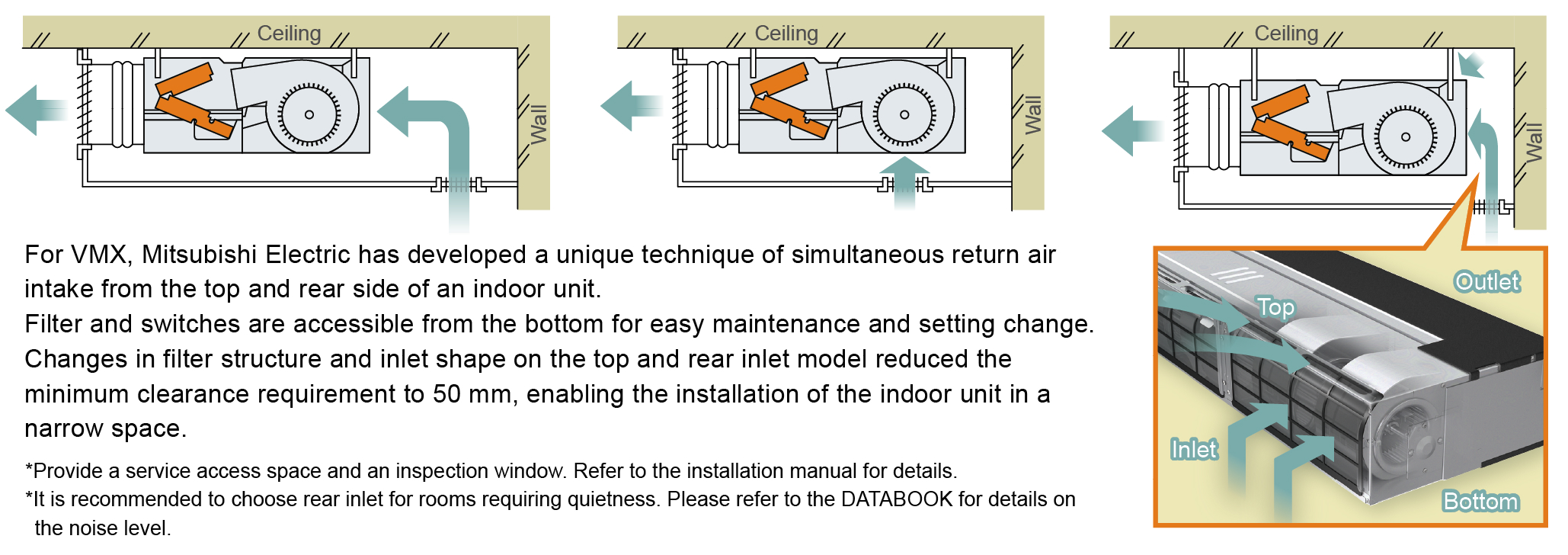

Three air inlet positions to choose from, allowing for optimum return air vent position

Changeable static pressure

The unit is made suitable for a variety of applications with static pressure settings of 4, 15, 35, 45 Pa (P50, P63)/4, 15, 35 Pa (P15, P20, P25, P32, P40).
