PEFY-P VMHS-E

Ceiling concealed type - High static pressure type
A wide range of external static pressure options to match virtually any application.

Models

PEFY-P40VMHS-E.TH

4.5kW / 5.0kW

PEFY-P50VMHS-E.TH

5.6kW / 6.3kW

PEFY-P63VMHS-E.TH

7.1kW / 8.0kW

PEFY-P71VMHS-E.TH

8.0kW / 9.0kW

PEFY-P80VMHS-E.TH

9.0kW / 10.0kW

PEFY-P100VMHS-ER1.TH

11.2kW / 12.5kW

PEFY-P125VMHS-ER1.TH

14.0kW / 16.0kW

PEFY-P140VMHS-ER1.TH

16.0kW / 18.0kW

PEFY-P200VMHS-E

22.4kW / 25.0kW

PEFY-P250VMHS-E

28.0kW / 31.5kW

Note: Above capacity ratings are all nominal rated.

Features

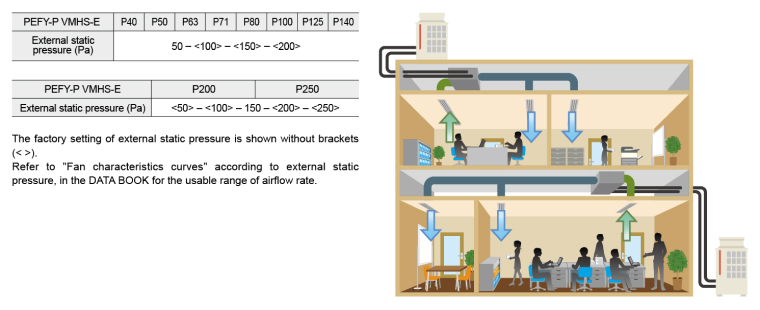

Maximum external static pressure of 250 Pa allows easy duct design

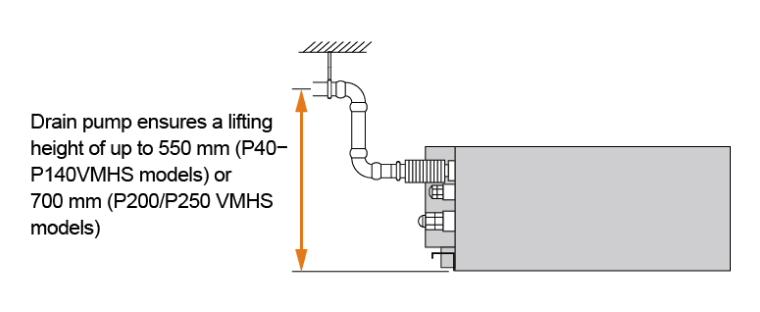

Drain pump (option) lifts drain water up to 550 mm−700 mm

*550 mm for P40−P140 VMHS, 700 mm for P200/P250VMHS models.

The introduction of an upper drain pump allows the drain connection to be raised as high as 550 mm (21-11/16 in.) for P40−P140VMHS models and 700 mm (27-9/16 in.) for P200/P250VMHS models. Allowing more flexibility in piping layout design and reducing horizontal piping requirements.

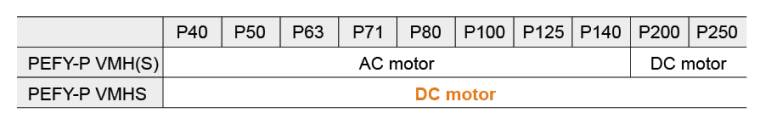

The use of a DC motor

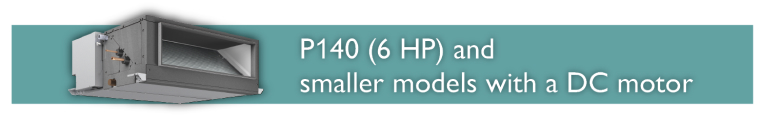

In the past, the only models featuring a DC motor were the P200 (8 HP) and P250 (10 HP). Now, the P140 (6 HP) and smaller models feature a DC motor that consumes less power compared to AC motors. In the P80 models, power consumption is reduced by 59%*.

*Comparison made at 50 Hz, 220 V, 100 Pa low fan speed

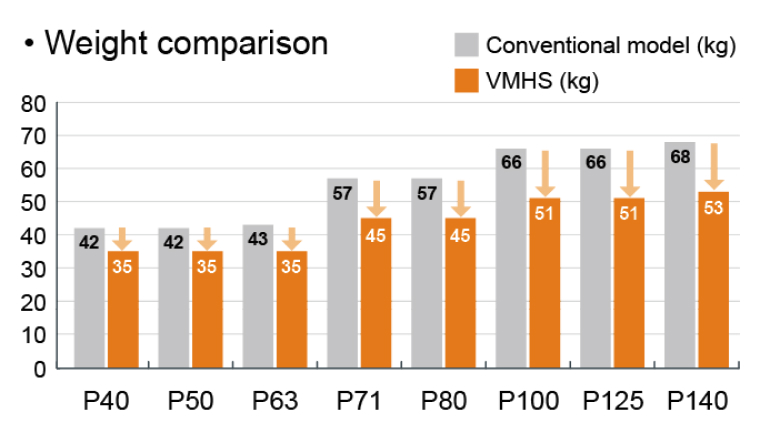

Reduced weight

By downsizing the motor, the unit weight has been reduced, offering easier installation.

Drain pumps (sold separately) with a DC motor are now also available.

The use of a high-efficiency DC motor for the drain pump motor in the latest models reduces power consumption by 90%, in comparison to conventional models. The pump head height of 550 mm provides for greater piping design flexibility.

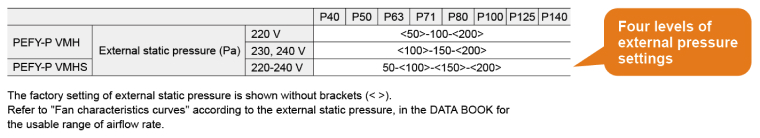

Four levels of external static pressure settings

While the conventional models only had three levels of external static pressure, the latest models offer four levels of external static pressure. The additional external static pressure capacity provides flexibility for duct extension, branching and air outlet configuration.

Three fan speeds (Low/Mid/High) to choose from

The conventional models had two levels of fan speed, but the latest models offer three levels (Low/Mid/High). Combined with a wider selection of external static pressure levels, the latest models offer optimal operation settings to suit the air-conditioning load of the installation space.
