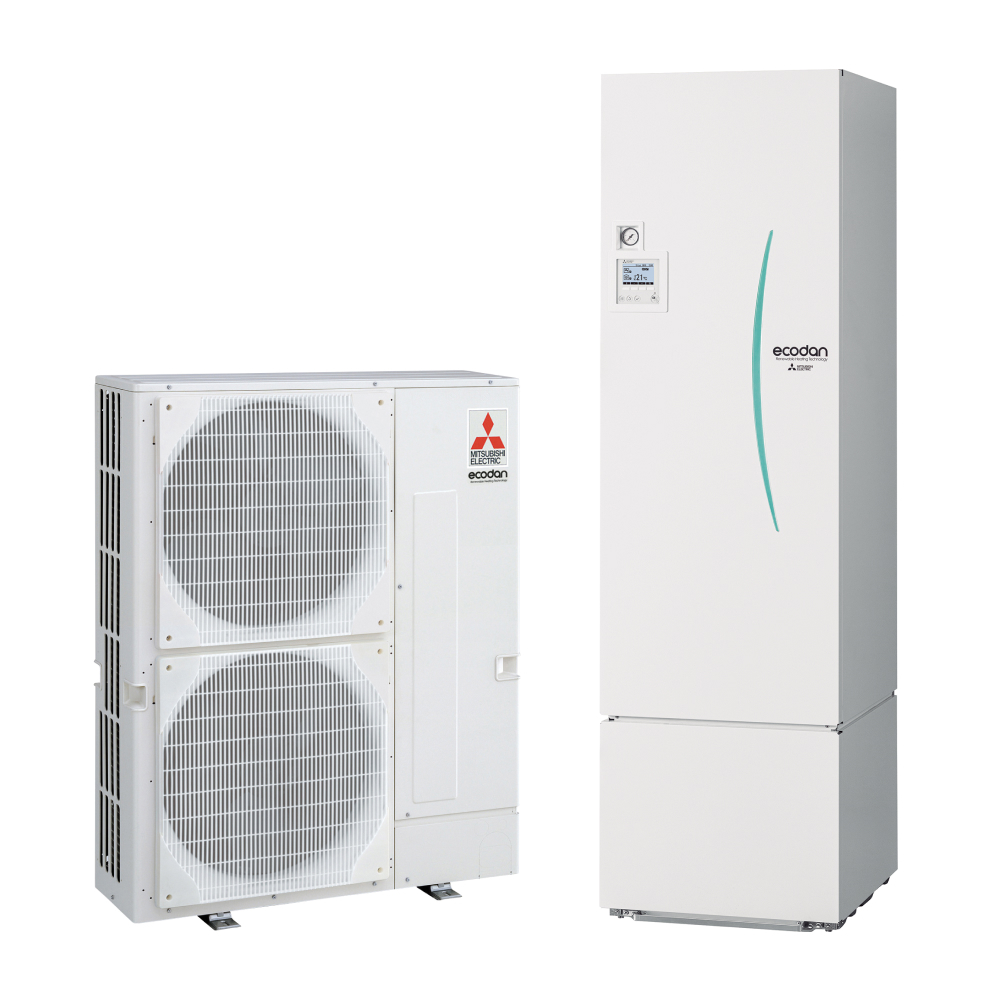

12.0kW 300L Ecodan Split Cylinder System

PUHZ-SW120VAA-C300

The 300L cylinder offers a highly adaptable heating and cooling solution for retrofit or new builds. Designed specifically by Mitsubishi Electric to integrate with the Ecodan Split Air Source Hot Water Heat Pump Range, the cylinder provides high performance and fast heat-up times using intelligent control and the latest Plate Heat Exchanger Technology. This system comprises of the 12.0kW PUHZ-SW120VHA-BS Outdoor Split Unit, the ERST30C-VM6ED 300L Cylinder and FTC6 Controller.

Heating Capacity16.0 kW
Cylinder300 Litre
Select with a 200L Cylinder - R410A
Select with a 300L Cylinder - R410A

Features

Key Features

  • Split unit allowing water connections to be made internally
  • No need for gas supply, flues or ventilation
  • Single phase power supply with a low starting current
  • Low maintenance and quiet operation
  • 2-Zone Energy Efficient Space Heating Control
  • Energy monitoring as standard
Domestic Applications
  • Heating and hot water
  • The vast majority of NZ homes
Commercial Applications
  • Small retail outlets
  • Health clinics
  • Public sector and commercial buildings

FTC5 Controller – With Energy Monitoring

The Mitsubishi Electric Fifth Generation Controller (FTC5) includes intelligent room temperature control as standard. This together with advanced weather compensation ensures the system delivers efficient, comfortable heating regardless of the season. FTC5 now also includes energy monitoring, showing consumed and produced energy.

2-Zone Control Allows you to Simultaneously Control Two Different Temperature Zones

Using Ecodan, it is possible to control two different flow temperatures, thereby managing two different heating load requirements. The system can adjust and maintain two flow temperatures when different temperatures are required for different rooms; for example, controlling a flow temperature of 40°C for the bedroom radiators and another flow temperature of 30°C for the living room underfloor heating.

Specifications

ERST30C-VM6ED - FTC6 Packaged Cylinder for Split Units

Type: FTC6 Cylinder for Split System
Operating Ambient Temperature*1: 0 ~ +35°C (RH<80%)
Sound Power Level [dBA]: 28
Refrigerant Type: R410A
WATER DATA
Water Pipe Connections (Heating / DHW) [mm]: 28 / 22 compression
Primary Pump: Grundfos UPM3K 15-75 130
Hot Water Supply Pump: Grundfos UPSO 15-60 CIL2
Nominal Storage Tank Volume [L]: 300
Primary Expansion Vessel [L]: N/A
Target Temperature Range
DHW Supply Maximum Temperature [°C]: 40 - 60
Space Heating Flow Temperature [°C]*2: 20 - 60
Space Heating Room Temperature [°C]: 10 - 30
Space Cooling Flow Temperature [°C]: 5 - 25
WATER SAFTEY DEVICES - Water Circuit
Control Thermistor THW1 [°C]: 0 - 75
Control Thermistor THW3 [°C]: 1 - 80
Pressure Relief Valve [MPa (Bar)]: 1.0 (10)
Flow Sensor (Minimum Flow 5.0L/min): Supplied
WATER SAFTEY DEVICES - Booster Heater
Manual Reset Thermostat [°C]: 90
Thermal Cut-out (for dry run prevention) [°C]: 121
ELECTRICAL DATA - Control Board
Power supply: 230-240V / Single Phase / 50 Hz
Current [A]: 1.95
Breaker [A]: 10
ELECTRICAL DATA - Booster Heat
Power supply: 230-240V / Single Phase / 50 Hz
Capacity [kW]: 2+4
Current [A]: 26
Breaker [A]: 32
GENERAL
Dimensions (WxDxH) [mm]: 595 x 680 x 2050
Weight (Empty / Full) [kg]: 120 / 428
Notes

*1 Depending on the ambient conditions, it may not reach the set temperature.
*2 The cylinder's enviroment MUST be frost-free.

PUHZ-SW120VHA - Ecodan Split Air Source Heat Pump

Function: Hot Water Heating
Type: Split Air Source Heat Pump
HEATING (A7/W35)*¹
Capacity (kW): 16.00
Power Input (kW): 3.90
COP: 4.10
HEATING (A2/W35)*²
Capacity (kW): 12.00
Power Input (kW): 3.70
COP: 3.24
OPERATING
Operation Ambient Temperature (°C DB)*4: -20 ~ +35°C
Sound Pressure Level at 1m (dBA)*¹: 54
Low Noise Mode (dBA)*¹: 51
WATER DATA
Flow Rate (l/min): 45.9
REFRIGERANT
Refrigerant: R410A
Charge (kg) - 10m Pipe Length: 4.6
Pipe Size - Liquid/Gas (mm (in)): 9.52 (3/8") / 15.88 (5/8")
Connection Type: Flared
Max Pipe Length (m): 75
Min Pipe Length (m): 2
Max Height Difference (m): 30
ELECTRICAL DATA
Power supply: 230V / Single Phase / 50 Hz
Maximum Current / Fuse Rating (A): 29.5 / 40
GENERAL
Dimensions (WxDxH, mm): 950 x 330+30*3 x 1350
Weight (kg): 118
Notes

*1 Under normal heating conditions at outdoor temp: 7°CDB / 6°CDB, outlet water temp 35°C, inlet water temp 30°C as tested to BS EN14511.
*2 Under normal heating conditions at outdoor temp: 2°CDB / 1°CDB, outlet water temp 35°C, inlet water temp 30°C.
*3 Grille.
*4 Heating maximum ambient temperature - 21°CDB, DHW hot water maximum ambient temperature - 35°CDB
*5 Electrical cover

Downloads

Support

Warranty

  • Mitsubishi Electric Ecodan Hot Water Heat Pumps come with a 5 Year Parts and Labour Warranty.

    Warranty commences from the date the system is purchased and installed. The installer must also fill out and return a BDT commissioning form applicable to the original purchaser. The installer must also have completed the Ecodan training course. Equipment defects covered by this warranty will be repaired or replaced at the discretion of BDT without cost to the owner for parts or direct repair labour. A BDT authorised repair company shall carry out the repair or replacement during normal business hours.

    Any Mitsubishi Electric Ecodan parts or equipment replaced under the warranty will be warranted in accordance with the provisions of this warranty for the remainder of the original warranty period or 12 months from the completion of the repair, whichever is the greater.

    Except where inconsistent with the owner’s statutory rights and the rights given by this warranty, all other warranties and all liability of BDT for any loss or damage direct and consequential is expressly excluded.

    For full details view warranty terms and conditions.pdf (140 KB)
