5.0kW 200L Ecodan Split Cylinder System

PUHZ-SW50VKA-C200

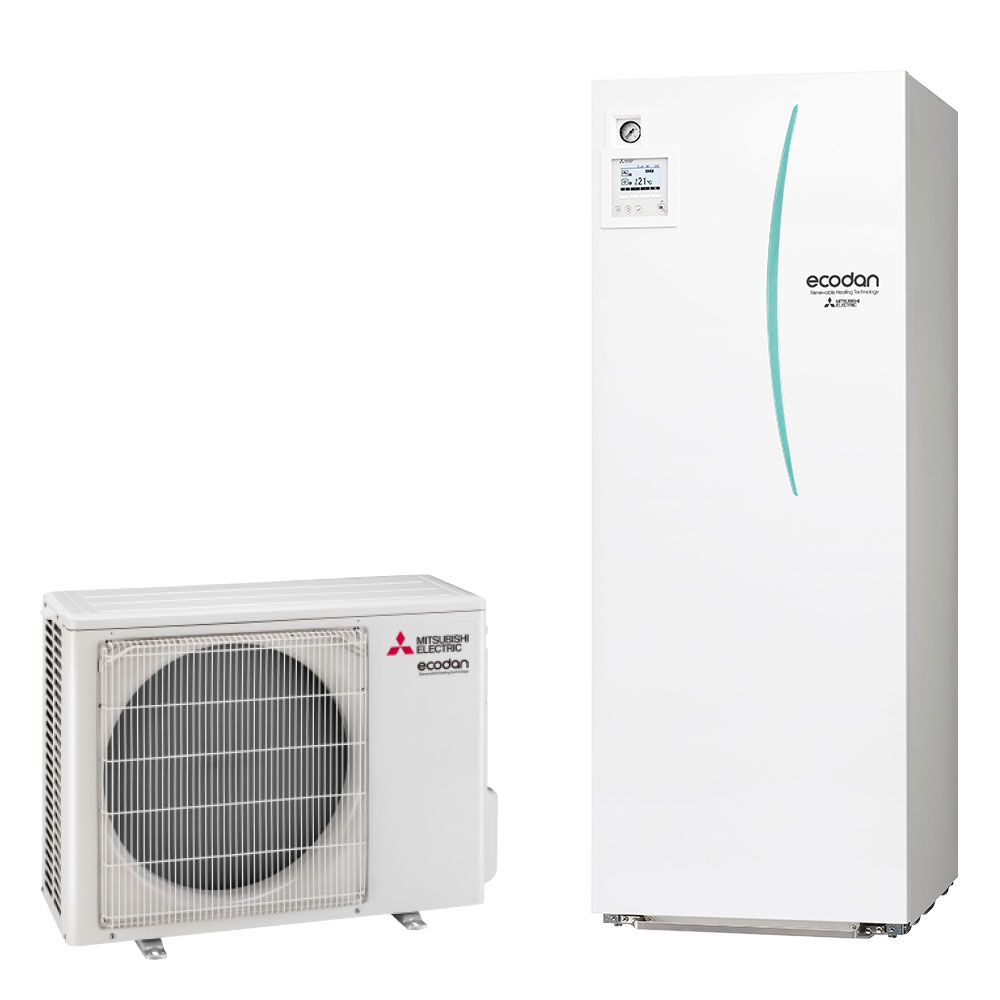

The 200L cylinder offers a highly adaptable heating and cooling solution for retrofit or new builds. Designed specifically by Mitsubishi Electric to integrate with the Ecodan Split Air Source Hot Water Heat Pump Range, the cylinder provides high performance and fast heat-up times using intelligent control and the latest Plate Heat Exchanger Technology. This system comprises of the 5.0kW PUHZ-SW50VKA-BS Outdoor Split Unit, the ERST20D-VM2C 200L Cylinder and FTC5 Controller.

Discontinued Product

Features

Specifications

ERST20D-VM2C - FTC5 Packaged Cylinder for Reversible Split Units

Type: FTC5 Packaged Cylinder for Split Units
Operating Ambient Temperature: 0 ~ +35°C (RH<80%)
Sound Pressure Level At 1m (dBA): 28
WATER DATA
Liquid / Gas Pipe (mm): 6.35 / 12.7
Max Flow Rate (l/min): 27.7
Primary Pump: Grundfos UPM2K 15 - 75 130
Sanitary Hot Water Pump: Grundfos UPSO 15 - 60 130 CIL2
Connection Size (mm) Heating / DHW: 28 / 22
Nominal Hot Water Volume (Litres): 200
Primary Expansion Vessel (Litres): 12
Charge Pressure (MPa (Bar)): 0.1 (1)
WATER SAFTEY DEVICES - Water Circuit
Control Thermistor (°C): 1 - 80
Pressure Relief Valve (MPa (Bar)): 0.3 (3)
Flow Sensor (Minimum Flow 5L/min): Supplied
WATER SAFTEY DEVICES - DHW Cylinder
Control Thermistor (°C): 40 - 70
Temp and Pressure Relief Valve (°C / MPa (Bar)): 90 / 1.0 (10)
ELECTRICAL DATA - Control Board (Optionally Powered by Outdoor Unit)
Power Supply: 230-240V / Single Phase / 50 Hz
Breaker (A): 10
ELECTRICAL DATA - Booster Heat
Power Supply: 230-240V / Single Phase / 50 Hz
Capacity (kW): 2
Maximum Current (A): 9
Breaker (A): 16
GENERAL
Dimensions (WxDxH, mm): 595 x 680 x 1600
Weight (Empty / Full) (kg): 103 / 312
Type: FTC5 Packaged Cylinder for Split Units
Operating Ambient Temperature: 0 ~ +35°C (RH<80%)
Sound Pressure Level At 1m (dBA): 28
WATER DATA
Liquid / Gas Pipe (mm): 6.35 / 12.7
Max Flow Rate (l/min): 27.7
Primary Pump: Grundfos UPM2K 15 - 75 130
Sanitary Hot Water Pump: Grundfos UPSO 15 - 60 130 CIL2
Connection Size (mm) Heating / DHW: 28 / 22
Nominal Hot Water Volume (Litres): 200
Primary Expansion Vessel (Litres): 12
Charge Pressure (MPa (Bar)): 0.1 (1)
WATER SAFTEY DEVICES - Water Circuit
Control Thermistor (°C): 1 - 80
Pressure Relief Valve (MPa (Bar)): 0.3 (3)
Flow Sensor (Minimum Flow 5L/min): Supplied
WATER SAFTEY DEVICES - DHW Cylinder
Control Thermistor (°C): 40 - 70
Temp and Pressure Relief Valve (°C / MPa (Bar)): 90 / 1.0 (10)
ELECTRICAL DATA - Control Board (Optionally Powered by Outdoor Unit)
Power Supply: 230-240V / Single Phase / 50 Hz
Breaker (A): 10
ELECTRICAL DATA - Booster Heat
Power Supply: 230-240V / Single Phase / 50 Hz
Capacity (kW): 2
Maximum Current (A): 9
Breaker (A): 16
GENERAL
Dimensions (WxDxH, mm): 595 x 680 x 1600
Weight (Empty / Full) (kg): 103 / 312

ERST20D-VM2C - FTC5 Packaged Cylinder for Reversible Split Units

Type: FTC5 Packaged Cylinder for Split Units
Operating Ambient Temperature: 0 ~ +35°C (RH<80%)
Sound Pressure Level At 1m (dBA): 28
WATER DATA
Liquid / Gas Pipe (mm): 6.35 / 12.7
Max Flow Rate (l/min): 27.7
Primary Pump: Grundfos UPM2K 15 - 75 130
Sanitary Hot Water Pump: Grundfos UPSO 15 - 60 130 CIL2
Connection Size (mm) Heating / DHW: 28 / 22
Nominal Hot Water Volume (Litres): 200
Primary Expansion Vessel (Litres): 12
Charge Pressure (MPa (Bar)): 0.1 (1)
WATER SAFTEY DEVICES - Water Circuit
Control Thermistor (°C): 1 - 80
Pressure Relief Valve (MPa (Bar)): 0.3 (3)
Flow Sensor (Minimum Flow 5L/min): Supplied
WATER SAFTEY DEVICES - DHW Cylinder
Control Thermistor (°C): 40 - 70
Temp and Pressure Relief Valve (°C / MPa (Bar)): 90 / 1.0 (10)
ELECTRICAL DATA - Control Board (Optionally Powered by Outdoor Unit)
Power Supply: 230-240V / Single Phase / 50 Hz
Breaker (A): 10
ELECTRICAL DATA - Booster Heat
Power Supply: 230-240V / Single Phase / 50 Hz
Capacity (kW): 2
Maximum Current (A): 9
Breaker (A): 16
GENERAL
Dimensions (WxDxH, mm): 595 x 680 x 1600
Weight (Empty / Full) (kg): 103 / 312
Type: FTC5 Packaged Cylinder for Split Units
Operating Ambient Temperature: 0 ~ +35°C (RH<80%)
Sound Pressure Level At 1m (dBA): 28
WATER DATA
Liquid / Gas Pipe (mm): 6.35 / 12.7
Max Flow Rate (l/min): 27.7
Primary Pump: Grundfos UPM2K 15 - 75 130
Sanitary Hot Water Pump: Grundfos UPSO 15 - 60 130 CIL2
Connection Size (mm) Heating / DHW: 28 / 22
Nominal Hot Water Volume (Litres): 200
Primary Expansion Vessel (Litres): 12
Charge Pressure (MPa (Bar)): 0.1 (1)
WATER SAFTEY DEVICES - Water Circuit
Control Thermistor (°C): 1 - 80
Pressure Relief Valve (MPa (Bar)): 0.3 (3)
Flow Sensor (Minimum Flow 5L/min): Supplied
WATER SAFTEY DEVICES - DHW Cylinder
Control Thermistor (°C): 40 - 70
Temp and Pressure Relief Valve (°C / MPa (Bar)): 90 / 1.0 (10)
ELECTRICAL DATA - Control Board (Optionally Powered by Outdoor Unit)
Power Supply: 230-240V / Single Phase / 50 Hz
Breaker (A): 10
ELECTRICAL DATA - Booster Heat
Power Supply: 230-240V / Single Phase / 50 Hz
Capacity (kW): 2
Maximum Current (A): 9
Breaker (A): 16
GENERAL
Dimensions (WxDxH, mm): 595 x 680 x 1600
Weight (Empty / Full) (kg): 103 / 312

PUHZ-SW50VKA - 5.0kW Ecodan Split Air Source Hot Water Heat Pump

Function: Hot Water Heating
Type: Split Air Source Heat Pump
Refrigerant Type: R410A
HEATING (A7/W35)*¹
Capacity [kW]: 5.50
Power Input [kW]: 1.24
COP: 4.42
HEATING (A2/W35)*²
Capacity [kW]: 5.00
Power Input [kW]: 1.68
COP: 2.97
COOLING (A35/W7)*3
Capacity [kW]: 4.5
Power Input [kW]: 1.63
EER: 2.76
COOLING (A35/W18)*4
Capacity [kW]: 5.00
Power Input [kW]: 1.09
EER: 4.60
OPERATING RANGE
Heating Operation Ambient Temperature [°C DB]: -15 ~ +21
Cooling Operation Ambient Temperature [°C DB]: +10 ~ +46
DHW Operation Ambient Temperature [°C DB]: -15 ~ +35
OPERATING CHARACTERISTICS
Sound Pressure Level at 1m [dBA]*¹: 46
Flow Rate [L/min]: 6.5 - 17.2
ELECTRICAL DATA
Power Supply: 230V / single Phase / 50 Hz
Maximum Current / Fuse Rating [A]: 13.0 / 16
GENERAL
Unit Connections (Liquid / Gas) [mm(in)]: 6.35 (1/4) / 12.7 (1/2) Flared connections
Min Pipe Length [m]: 2
Max Pipe Length [m]: 40
Max Height Difference [m]: 30
Dimensions (WxDxH) [mm]: 809+62*5 x 300 x 630
Weight [kg]: 43
Notes

*1 Under normal heating conditions at outdoor temp: 7°CDB / 6°CDB, outlet water temp 35°C, inlet water temp 30°C as tested to BS EN14511.
*2 Under normal heating conditions at outdoor temp: 2°CDB / 1°CDB, outlet water temp 35°C, inlet water temp 30°C as t

Function: Hot Water Heating
Type: Split Air Source Heat Pump
Refrigerant Type: R410A
HEATING (A7/W35)*¹
Capacity [kW]: 5.50
Power Input [kW]: 1.24
COP: 4.42
HEATING (A2/W35)*²
Capacity [kW]: 5.00
Power Input [kW]: 1.68
COP: 2.97
COOLING (A35/W7)*3
Capacity [kW]: 4.5
Power Input [kW]: 1.63
EER: 2.76
COOLING (A35/W18)*4
Capacity [kW]: 5.00
Power Input [kW]: 1.09
EER: 4.60
OPERATING RANGE
Heating Operation Ambient Temperature [°C DB]: -15 ~ +21
Cooling Operation Ambient Temperature [°C DB]: +10 ~ +46
DHW Operation Ambient Temperature [°C DB]: -15 ~ +35
OPERATING CHARACTERISTICS
Sound Pressure Level at 1m [dBA]*¹: 46
Flow Rate [L/min]: 6.5 - 17.2
ELECTRICAL DATA
Power Supply: 230V / single Phase / 50 Hz
Maximum Current / Fuse Rating [A]: 13.0 / 16
GENERAL
Unit Connections (Liquid / Gas) [mm(in)]: 6.35 (1/4) / 12.7 (1/2) Flared connections
Min Pipe Length [m]: 2
Max Pipe Length [m]: 40
Max Height Difference [m]: 30
Dimensions (WxDxH) [mm]: 809+62*5 x 300 x 630
Weight [kg]: 43
Notes

*1 Under normal heating conditions at outdoor temp: 7°CDB / 6°CDB, outlet water temp 35°C, inlet water temp 30°C as tested to BS EN14511.
*2 Under normal heating conditions at outdoor temp: 2°CDB / 1°CDB, outlet water temp 35°C, inlet water temp 30°C as t

PUHZ-SW50VKA - 5.0kW Ecodan Split Air Source Hot Water Heat Pump

Function: Hot Water Heating
Type: Split Air Source Heat Pump
Refrigerant Type: R410A
HEATING (A7/W35)*¹
Capacity [kW]: 5.50
Power Input [kW]: 1.24
COP: 4.42
HEATING (A2/W35)*²
Capacity [kW]: 5.00
Power Input [kW]: 1.68
COP: 2.97
COOLING (A35/W7)*3
Capacity [kW]: 4.5
Power Input [kW]: 1.63
EER: 2.76
COOLING (A35/W18)*4
Capacity [kW]: 5.00
Power Input [kW]: 1.09
EER: 4.60
OPERATING RANGE
Heating Operation Ambient Temperature [°C DB]: -15 ~ +21
Cooling Operation Ambient Temperature [°C DB]: +10 ~ +46
DHW Operation Ambient Temperature [°C DB]: -15 ~ +35
OPERATING CHARACTERISTICS
Sound Pressure Level at 1m [dBA]*¹: 46
Flow Rate [L/min]: 6.5 - 17.2
ELECTRICAL DATA
Power Supply: 230V / single Phase / 50 Hz
Maximum Current / Fuse Rating [A]: 13.0 / 16
GENERAL
Unit Connections (Liquid / Gas) [mm(in)]: 6.35 (1/4) / 12.7 (1/2) Flared connections
Min Pipe Length [m]: 2
Max Pipe Length [m]: 40
Max Height Difference [m]: 30
Dimensions (WxDxH) [mm]: 809+62*5 x 300 x 630
Weight [kg]: 43
Notes

*1 Under normal heating conditions at outdoor temp: 7°CDB / 6°CDB, outlet water temp 35°C, inlet water temp 30°C as tested to BS EN14511.
*2 Under normal heating conditions at outdoor temp: 2°CDB / 1°CDB, outlet water temp 35°C, inlet water temp 30°C as t

Function: Hot Water Heating
Type: Split Air Source Heat Pump
Refrigerant Type: R410A
HEATING (A7/W35)*¹
Capacity [kW]: 5.50
Power Input [kW]: 1.24
COP: 4.42
HEATING (A2/W35)*²
Capacity [kW]: 5.00
Power Input [kW]: 1.68
COP: 2.97
COOLING (A35/W7)*3
Capacity [kW]: 4.5
Power Input [kW]: 1.63
EER: 2.76
COOLING (A35/W18)*4
Capacity [kW]: 5.00
Power Input [kW]: 1.09
EER: 4.60
OPERATING RANGE
Heating Operation Ambient Temperature [°C DB]: -15 ~ +21
Cooling Operation Ambient Temperature [°C DB]: +10 ~ +46
DHW Operation Ambient Temperature [°C DB]: -15 ~ +35
OPERATING CHARACTERISTICS
Sound Pressure Level at 1m [dBA]*¹: 46
Flow Rate [L/min]: 6.5 - 17.2
ELECTRICAL DATA
Power Supply: 230V / single Phase / 50 Hz
Maximum Current / Fuse Rating [A]: 13.0 / 16
GENERAL
Unit Connections (Liquid / Gas) [mm(in)]: 6.35 (1/4) / 12.7 (1/2) Flared connections
Min Pipe Length [m]: 2
Max Pipe Length [m]: 40
Max Height Difference [m]: 30
Dimensions (WxDxH) [mm]: 809+62*5 x 300 x 630
Weight [kg]: 43
Notes

*1 Under normal heating conditions at outdoor temp: 7°CDB / 6°CDB, outlet water temp 35°C, inlet water temp 30°C as tested to BS EN14511.
*2 Under normal heating conditions at outdoor temp: 2°CDB / 1°CDB, outlet water temp 35°C, inlet water temp 30°C as t
