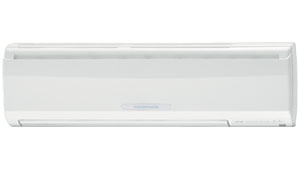

High Wall indoor unit - DC inverter heat pump with infra red remote. Cooling/Heating capacity:7.1/8.1kW. (WxDxH, mm): 1100 x 258 x 325. Weight: 16kg. Liquid / Gas Pipe (OD, mm): 9.52 / 15.88. Requires a MUZ-GA71VA outdoor unit or can be used in a customisable MXZ-4A80, 5A100 or 8A140VA Multi-Split System.
| · | Function: Cooling/Heating | · | Type: Single Split, Inverter |
| · | Capacity - Cooling: 7.1 kW | · | Capacity - Heating: 8.1 kW |
| · | Capacity - Cooling (min. - max.): 0.9 - 8.3 kW | · | Capacity - Heating (min. - max.): 0.9 - 9.6 kW |
| · | Power Input - Cooling: 2.44 kW | · | Power Input - Heating: 2.50 kW |
| · | EER / Star rating - Cooling: 2.91 / 4.0 | · | COP / Star rating - Heating: 3.24 / 4.0 |
| · | Sensible - Cooling: 5.12 kW | ||
| · | Operation Range - Cooling: -10 / +43°C | · | Operation Range - Heating: -15 / +24°C |
| · | Indoor Sound - Cooling (Low - High, dB(A)): 33 / 40 / 54 | · | Indoor Sound - Heating (Low - High, dB(A)): 33 / 40 / 54 |
| · | Current - Cooling [in+outdoor] (Rated / Max.): 11.0 / 16.0 A | · | Current - Heating [in+outdoor] (Rated / Max.): 11.2 / 16.0 A |
| · | Air Volume - Cooling (High, Litre/sec): 287 | · | Air Volume - Heating (High, Litre/sec): 287 |
| · | Refrigerant: R410A | · | Liquid Pipe Size (OD, mm): 9.52 |
| · | Gas Pipe Size (OD, mm): 15.88 | · | Max. Pipe Length (m): 30 |
| · | Max. Pipe Height (m): 15 | · | Power Supply: 230V +/- 10% / Single Phase / 50 Hz |
| · | Dimensions (WxDxH, mm): 1100 x 258 x 325 | · | Weight: 16 kg |
