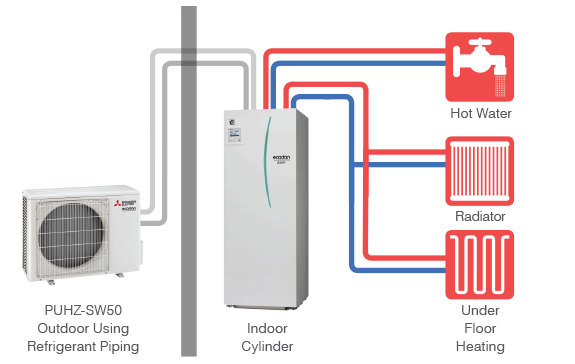

Ecodan Split Hot Water Heat Pump System, ranging in capacity from 5kw to 12kw. The 170L, 200L and 300L cylinders provide high performance, fast heat up times through the use of Plate Heat Exchanger Technology and advanced Flow Temperature Control. The cylinders are completely pre-plumbed and wired for ease of installation and can provide heating and cooling and potable hot water for your home. Ideal for cooler climates the split range has refrigerant connections between indoor and outdoor units perfect for even the coldest regions in New Zealand
- Split unit allowing water connections to be made internally
- No need for gas supply, flues or ventilation
- Single phase power supply with a low starting current
- Low maintenance and quiet operation
- Operates with outside temperatures as low as -25ºC with Zubadan HW Models
- 2-Zone Energy Efficient Space Heating Control
- Energy monitoring as standard
- Heating and hot water
- The vast majority of NZ homes
- Small retail outlets
- Health clinics
- Public sector and commercial buildings
Packaged Cylinder System
The 200 litre Cylinder provides improved performance and fast heat up times through the use of Plate Heat Exchanger Technology and FTC5 Control. The Cylinders are completely pre-plumbed and wired for ease of installation. The Cylinder can provide heating and hot water to your home.
Zubadan – Reliable Performance in Low Temperature Outdoor Conditions
New generation Zubadan* provides powerful heating in cold regions. Zubadan’s rated heating capacity is maintained even in outdoor temperatures as low as –15°C, guaranteeing total home comfort when you need it most.
Zubadan Inverter Technology
New generation Zubadan Inverter Technology* provides powerful heating in cold regions where heat pump performance can diminish. With Zubadan, rated heating capacity is maintained even in outdoor temperatures as low as -15°C, with guaranteed heating operation at -25°C. Zubadan guarantees a warm, comfortable home when you need it most. Furthermore, Zubadan can provide even faster tank heat up times in low ambient temperatures compared to standard models.
Flash Injection Technology
The Flash Injection Circuit is an original Mitsubishi Electric Technology. A heat exchange process at the Heat Interchanger transforms liquid refrigerant into a two-phase, gas-liquid state and then compresses the gas-liquid refrigerant at the Injection Compressor. This circuit secures a sufficient flow rate of refrigerant for heating when outdoor temperatures are very low. Thanks to an improved Heat Interchanger and the introduction of a new Injection Compressor, the Flash Injection Circuit is now more powerful then ever.
* Zubadan only available on specific models (HW)
Ecodan Technology, Smart Energy Monitoring and System Management
State-of-the-art energy monitoring and management of the Ecodan Heat Pump System means families now have the visibility and freedom to efficiently manage their overall household power consumption for heating and hot water. Energy monitoring ensures households can take advantage of off-peak tariffs, providing them the ability to save even more on their power bill.
Smart Energy Monitoring
View electricity consumption and heat output on the remote controller. End-users can now easily check the energy data of the Ecodan Heat Pump.
Data Shown on the Remote Controller:
- Consumed electrical energy for space heating, cooling and domestic hot water (kWh)
- Delivered energy for space heating, cooling and domestic hot water (kWh)
- Daily, monthly and yearly data are stored and can be displayed using the main remote controller
- External power meter and heat meter can be connected for accurate measurement
- An SD card is included for storing usage data
Our advanced Auto Adaptation Function measures the room temperature and outdoor temperature, calculating the required heating capacity for the room. The flow temperature is automatically controlled according to the required heating capacity, while optimal room temperature is maintained at all times; ensuring the appropriate heating capacity and preventing energy wastage.
Future Room Temperature Estimation
2-Zone Control Allows you to Simultaneously Control Two Different Temperature Zones
Using Ecodan, it is possible to control two different flow temperatures, thereby managing two different heating load requirements. The system can adjust and maintain two flow temperatures when different temperatures are required for different rooms; for example, controlling a flow temperature of 40°C for the bedroom radiators and another flow temperature of 30°C for the living room underfloor heating.
Plate Heat Exchanger and Patented Scale Trap Technology*
The Aluminium Plate Heat Exchanger and patented Scale Trap Technology help achieve greater efficiencies. In conventional systems, there is a risk of calcium scale building up on the Plate Heat Exchanger if it is exposed to tap water directly; therefore making it difficult to heat tap water. To resolve this problem, Ecodan is equipped with a “Scale Trap” that catches calcium nuclei in the tap water before it has a chance to grow into large scales, thereby inhibiting build-up in the External Heat Exchanger. Ecodan can use a Plate Heat Exchanger to heat tap water, resulting in much higher domestic hot water performance. In the case of special localised conditions such as very hard tap water, please consult a specialist before installation.
The Secret Behind Our External Plate Heat Exchanger System
* Only available on Mitsubishi Electric made cylinders.
