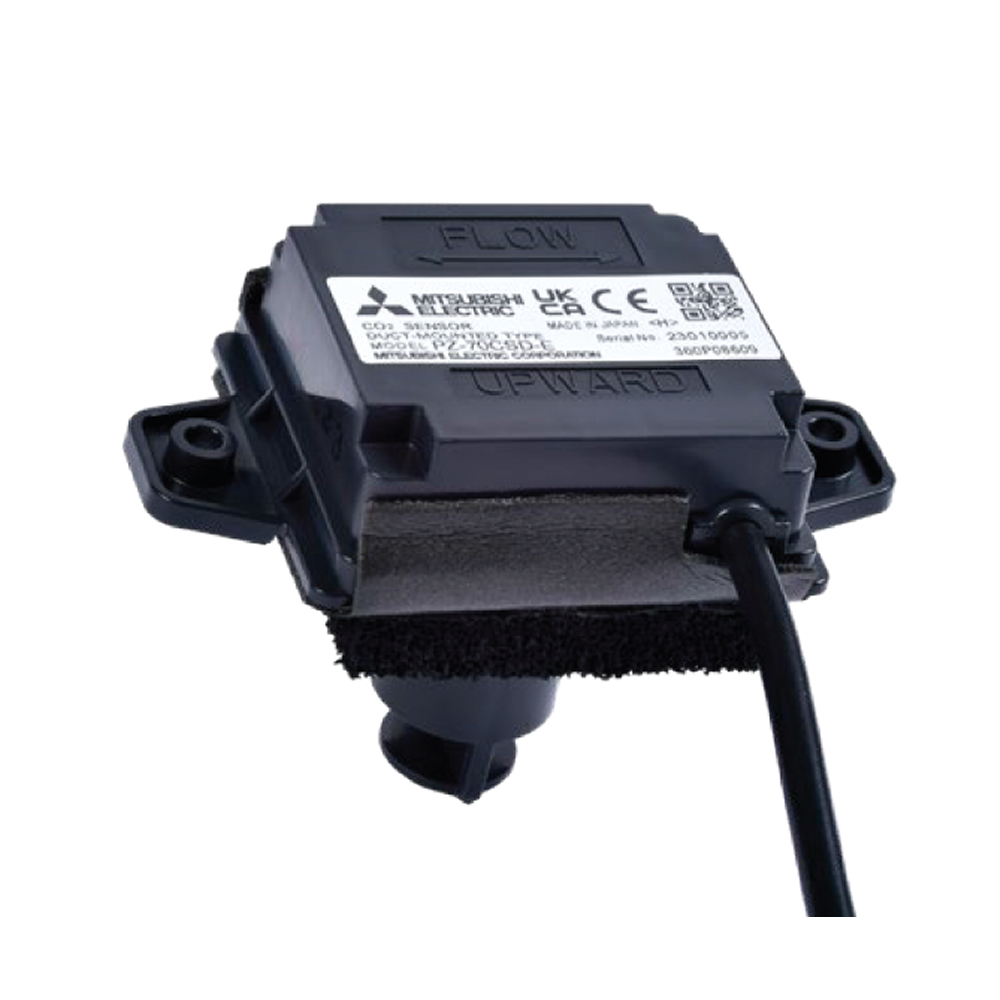

The PZ-70CSD-E2 is an optional Duct-In Type CO2 Sensor that can connect directly to the LGH-RVX3, LGH-RVS and LGH-RVXT3 Lossnay ranges. By continuously monitoring carbon dioxide levels, this sensor can automatically adjust the Lossnay system’s airflow to remove stale, stuffy air and replace it with fresh outdoor air, maximising indoor air quality without compromising energy efficiency.
Integrating seamlessly with the Lossnay system's 16-step airflow increments (25% – 100%), the PZ-70CS(W)/(D)-E2 CO2 Sensors intuitively adjust airflow* for consistent, effective ventilation and improved indoor air quality.
* Auto Fan Mode setting required to enable CO2 airflow adjustment.

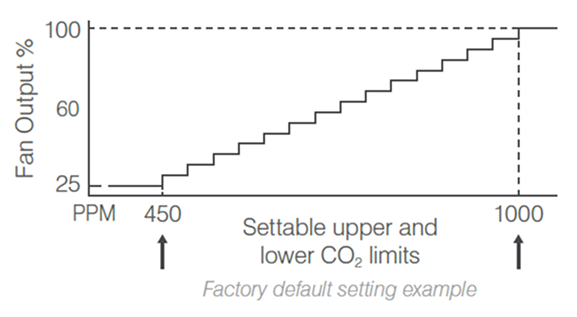

With simple adjustment via the optional PZ-62DR-E Lossnay Controller, the lower and upper limit CO2 levels can be set between 300ppm and 2000ppm at 50ppm increments. This allows customised tuning to optimise air quality in a wide range of situations.
Remove complication with simple plug and play cable connection direct to the Lossnay unit. No external power supply is required.
Sensors automatically recalibrate themselves, ensuring consistent results and removing the ongoing maintenance costs needed with other sensors.
