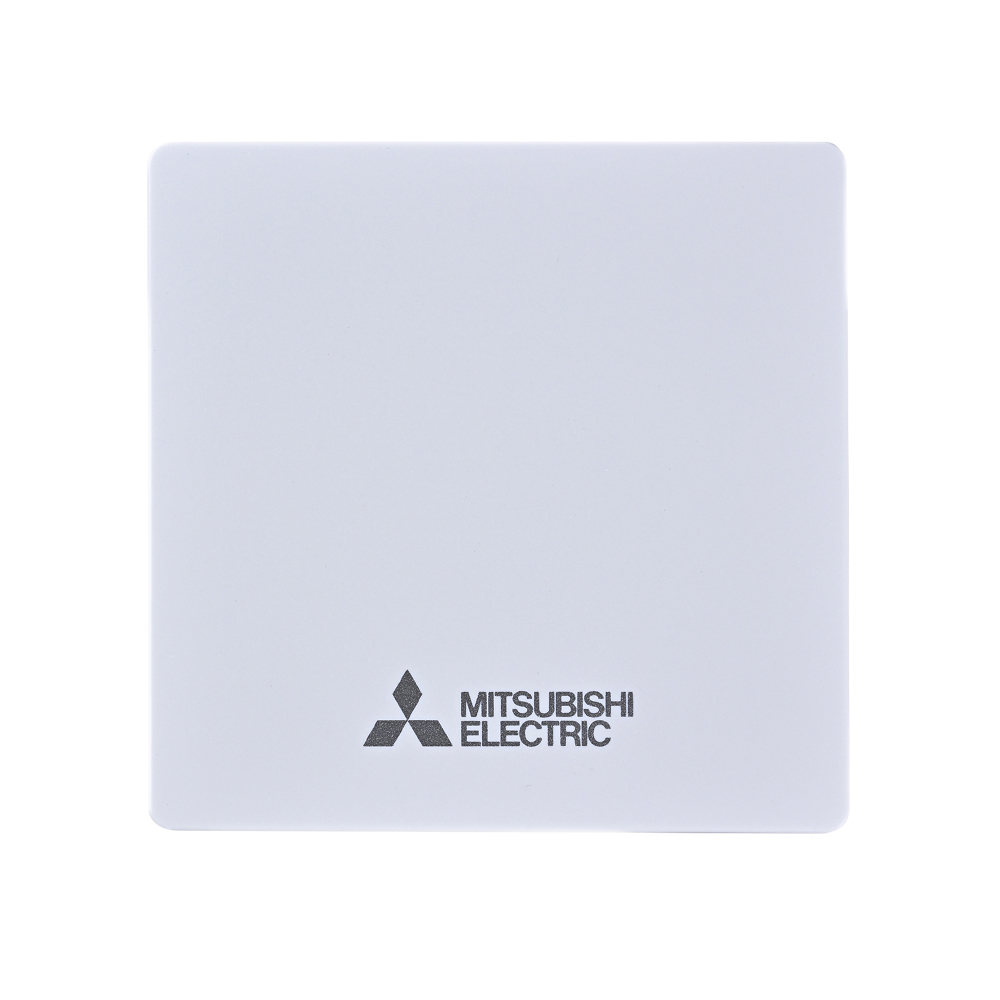

The P-09CSW-E CO2 Sensor is an optional wall-mounted CO2 Sensor for the Vertical Lossnay EG Series, it is designed to maintain safe, fresh indoor air. Powered directly by the unit, it’s easy to install and automatically adjusts airflow based on CO2 levels.
Integrating seamlessly with the Lossnay system's 4-step airflow control, the P-09CSW-E CO2 Sensor intuitively adjusts airflow* for consistent, effective ventilation and improved indoor air quality.

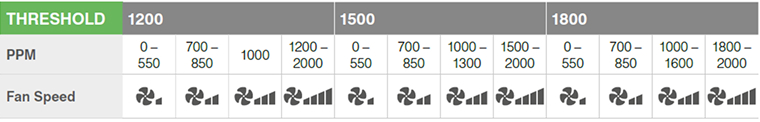

With simple adjustment via the Vertical VL Lossnay Controller, a threshold limit can be set ranging from 1200, 1500 and 1800ppm. This allows customised tuning to optimise air quality in a wide range of situations.

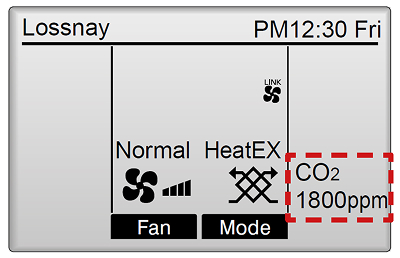

CO2 levels are displayed on the Vertical VL Lossnay Controller*2.
Control up to two CO2 sensors for precise monitoring and individual control of indoor air quality across two zones.
Sensors automatically recalibrate themselves, ensuring consistent results and removing the ongoing maintenance costs needed with other sensors.
* 1 Auto Fan Mode setting required to enable CO2 airflow adjustment.
* 2 When more than one CO2 sensor is connected, only one sensor ppm reading is able to be displayed on the controller. Unit configuration is required for display. Please refer to installation manual for more details.
* 3 When two CO2 sensors are connected, a humidity sensor is not able to be connected as the second terminal port can either connect to a CO2 or humidity sensor.
