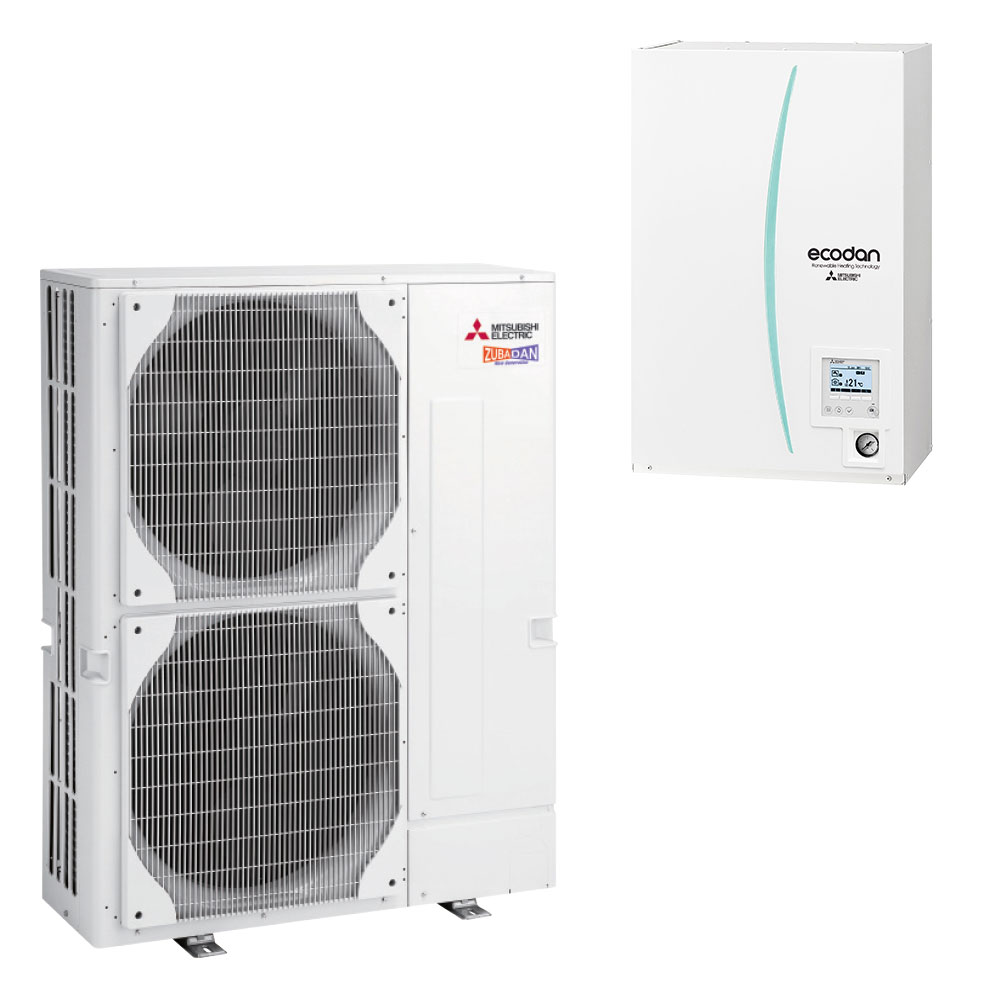

23kW Zubadan Hot Water Heat Pump with Split Hydrobox

PUHZ-SHW230YKA2

The EHSE hydrobox is for larger homes in the form of underfloor, radiators and other hydronic units. You can also combine a large coil cylinder for domestic hot water. They are a highly adaptable solution for retrofit and new builds. For systems where a third party cylinder is to be installed, a three-way valve can be added to the system and connected to the FTC6 controller. This system comprises of the 23kW PUHZ-SHW230VHA Zubadan outdoor split unit, pre-plumbed EHSE-YM9ED hydrobox and FTC6 controller. Zubadan's rated heating capacity is maintained even in outdoor temperatures as low as -15°C, guaranteeing total home comfort when you need it most.

Heating Capacity23.0 kW
Select a Size - R410A Refrigerant

Features

Key Features

  • Split unit allowing water connections to be made internally
  • No need for gas supply, flues or ventilation
  • Single phase power supply with a low starting current
  • Low maintenance and quiet operation
  • Operates with outside temperatures as low as -25ºC with Zubadan
  • 2-Zone Energy Efficient Space Heating Control
  • Energy monitoring as standard
Domestic Applications
Domestic Applications
  • Heating and hot water
  • The vast majority of NZ homes
Commercial Applications
  • Small retail outlets
  • Health clinics
  • Public sector and commercial buildings

Zubadan Inverter Technology

New generation Zubadan Inverter Technology provides powerful heating in cold regions where heat pump performance can diminish. With Zubadan, rated heating capacity is maintained even in outdoor temperatures as low as -15°C, with guaranteed heating operation at -25°C. Zubadan guarantees a warm, comfortable home when you need it most. Furthermore, Zubadan can provide even faster tank heat-up times in low ambient temperatures.

FTC5 Controller – With Energy Monitoring

The Mitsubishi Electric Fifth Generation Controller (FTC5) includes intelligent room temperature control as standard. This together with advanced weather compensation ensures the system delivers efficient, comfortable heating regardless of the season. FTC5 now also includes energy monitoring, showing consumed and produced energy.

2-Zone Control Allows you to Simultaneously Control Two Different Temperature Zones

Using Ecodan, it is possible to control two different flow temperatures, thereby managing two different heating load requirements. The system can adjust and maintain two flow temperatures when different temperatures are required for different rooms; for example, controlling a flow temperature of 40°C for the bedroom radiators and another flow temperature of 30°C for the living room underfloor heating.

Specifications

PUHZ-SHW230YKA2R2 - 23.0kW Ecodan Split Air Source Hot Water Heat Pump

Function: Hot Water Heating
Type: Split Air Source Heat Pump
Refrigerant Type: R410A
HEATING (A7/W35)*¹
Capacity [kW]: 23.0
Power Input [kW]: 6.31
COP: 3.65
HEATING (A2/W35)*²
Capacity [kW]: 23.0
Power Input [kW]: 9.71
COP: 2.37
COOLING (A35/W7)*3
Capacity [kW]: 20.0
Power Input [kW]: 9.01
EER: 2.22
COOLING (A35/W18)*4
Capacity [kW]: 20.0
Power Input [kW]: 5.63
EER: 3.55
OPERATING RANGE
Heating Operation Ambient Temperature [°C DB]: -25 ~ +21
Cooling Operation Ambient Temperature [°C DB]: +10 ~ +46
DHW Operation Ambient Temperature [°C DB]: -25 ~ +35
OPERATING CHARACTERISTICS
Sound Pressure Level at 1m [dBA]*¹: 59
Flow Rate [L/min]: 28.7 - 65.9
ELECTRICAL DATA
Power Supply: 400V / Three Phase / 50 Hz
Maximum Current / Fuse Rating [A]: 20.0 / 25
GENERAL
Unit Connections (Liquid / Gas) [mm]: 12.7 (1/2) / 25.4 (1) flared connections
Min Pipe Length [m]: 2
Max Pipe Length [m]: 80
Max Height Difference [m]: 30
Dimensions (WxDxH) [mm]: 1050 x 330+30*5 x 1338
Weight [kg]: 143
Notes

*1 Under normal heating conditions at outdoor temp: 7°CDB / 6°CDB, outlet water temp 35°C, inlet water temp 30°C as tested to BS EN14511.
*2 Under normal heating conditions at outdoor temp: 2°CDB / 1°CDB, outlet water temp 35°C, inlet water temp 30°C as t

Function: Hot Water Heating
Type: Split Air Source Heat Pump
Refrigerant Type: R410A
HEATING (A7/W35)*¹
Capacity [kW]: 23.0
Power Input [kW]: 6.31
COP: 3.65
HEATING (A2/W35)*²
Capacity [kW]: 23.0
Power Input [kW]: 9.71
COP: 2.37
COOLING (A35/W7)*3
Capacity [kW]: 20.0
Power Input [kW]: 9.01
EER: 2.22
COOLING (A35/W18)*4
Capacity [kW]: 20.0
Power Input [kW]: 5.63
EER: 3.55
OPERATING RANGE
Heating Operation Ambient Temperature [°C DB]: -25 ~ +21
Cooling Operation Ambient Temperature [°C DB]: +10 ~ +46
DHW Operation Ambient Temperature [°C DB]: -25 ~ +35
OPERATING CHARACTERISTICS
Sound Pressure Level at 1m [dBA]*¹: 59
Flow Rate [L/min]: 28.7 - 65.9
ELECTRICAL DATA
Power Supply: 400V / Three Phase / 50 Hz
Maximum Current / Fuse Rating [A]: 20.0 / 25
GENERAL
Unit Connections (Liquid / Gas) [mm]: 12.7 (1/2) / 25.4 (1) flared connections
Min Pipe Length [m]: 2
Max Pipe Length [m]: 80
Max Height Difference [m]: 30
Dimensions (WxDxH) [mm]: 1050 x 330+30*5 x 1338
Weight [kg]: 143
Notes

*1 Under normal heating conditions at outdoor temp: 7°CDB / 6°CDB, outlet water temp 35°C, inlet water temp 30°C as tested to BS EN14511.
*2 Under normal heating conditions at outdoor temp: 2°CDB / 1°CDB, outlet water temp 35°C, inlet water temp 30°C as t

PUHZ-SHW230YKA2R2 - 23.0kW Ecodan Split Air Source Hot Water Heat Pump

Function: Hot Water Heating
Type: Split Air Source Heat Pump
Refrigerant Type: R410A
HEATING (A7/W35)*¹
Capacity [kW]: 23.0
Power Input [kW]: 6.31
COP: 3.65
HEATING (A2/W35)*²
Capacity [kW]: 23.0
Power Input [kW]: 9.71
COP: 2.37
COOLING (A35/W7)*3
Capacity [kW]: 20.0
Power Input [kW]: 9.01
EER: 2.22
COOLING (A35/W18)*4
Capacity [kW]: 20.0
Power Input [kW]: 5.63
EER: 3.55
OPERATING RANGE
Heating Operation Ambient Temperature [°C DB]: -25 ~ +21
Cooling Operation Ambient Temperature [°C DB]: +10 ~ +46
DHW Operation Ambient Temperature [°C DB]: -25 ~ +35
OPERATING CHARACTERISTICS
Sound Pressure Level at 1m [dBA]*¹: 59
Flow Rate [L/min]: 28.7 - 65.9
ELECTRICAL DATA
Power Supply: 400V / Three Phase / 50 Hz
Maximum Current / Fuse Rating [A]: 20.0 / 25
GENERAL
Unit Connections (Liquid / Gas) [mm]: 12.7 (1/2) / 25.4 (1) flared connections
Min Pipe Length [m]: 2
Max Pipe Length [m]: 80
Max Height Difference [m]: 30
Dimensions (WxDxH) [mm]: 1050 x 330+30*5 x 1338
Weight [kg]: 143
Notes

*1 Under normal heating conditions at outdoor temp: 7°CDB / 6°CDB, outlet water temp 35°C, inlet water temp 30°C as tested to BS EN14511.
*2 Under normal heating conditions at outdoor temp: 2°CDB / 1°CDB, outlet water temp 35°C, inlet water temp 30°C as t

Function: Hot Water Heating
Type: Split Air Source Heat Pump
Refrigerant Type: R410A
HEATING (A7/W35)*¹
Capacity [kW]: 23.0
Power Input [kW]: 6.31
COP: 3.65
HEATING (A2/W35)*²
Capacity [kW]: 23.0
Power Input [kW]: 9.71
COP: 2.37
COOLING (A35/W7)*3
Capacity [kW]: 20.0
Power Input [kW]: 9.01
EER: 2.22
COOLING (A35/W18)*4
Capacity [kW]: 20.0
Power Input [kW]: 5.63
EER: 3.55
OPERATING RANGE
Heating Operation Ambient Temperature [°C DB]: -25 ~ +21
Cooling Operation Ambient Temperature [°C DB]: +10 ~ +46
DHW Operation Ambient Temperature [°C DB]: -25 ~ +35
OPERATING CHARACTERISTICS
Sound Pressure Level at 1m [dBA]*¹: 59
Flow Rate [L/min]: 28.7 - 65.9
ELECTRICAL DATA
Power Supply: 400V / Three Phase / 50 Hz
Maximum Current / Fuse Rating [A]: 20.0 / 25
GENERAL
Unit Connections (Liquid / Gas) [mm]: 12.7 (1/2) / 25.4 (1) flared connections
Min Pipe Length [m]: 2
Max Pipe Length [m]: 80
Max Height Difference [m]: 30
Dimensions (WxDxH) [mm]: 1050 x 330+30*5 x 1338
Weight [kg]: 143
Notes

*1 Under normal heating conditions at outdoor temp: 7°CDB / 6°CDB, outlet water temp 35°C, inlet water temp 30°C as tested to BS EN14511.
*2 Under normal heating conditions at outdoor temp: 2°CDB / 1°CDB, outlet water temp 35°C, inlet water temp 30°C as t

ERSE-YM9EC - Packaged Hydrobox for Reversible Split Units

Liquid / Gas pipe (mm): 12.7 / 25.4
