Hot Water Heat Pumps

11.2kW Hydrobox System

PUZ-WM112VAA-BS-H

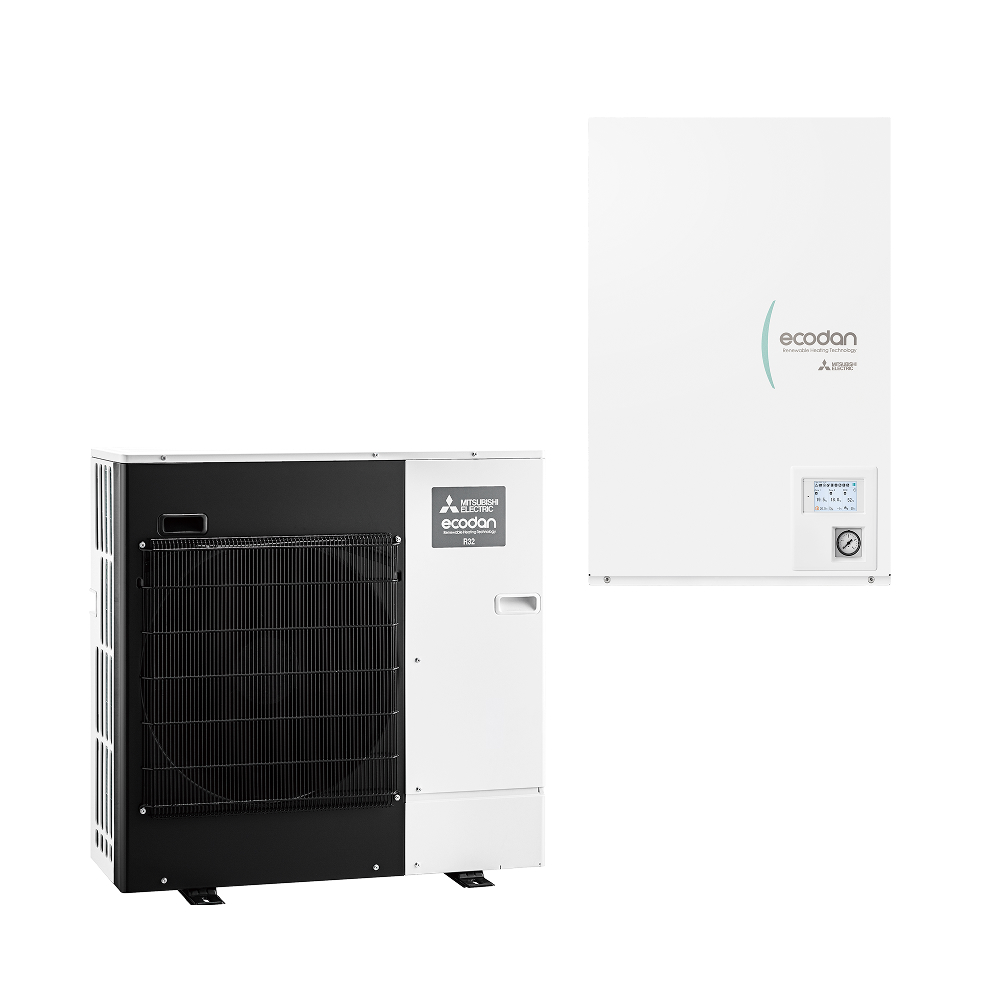

The ecodan hydrobox can be connected to underfloor, fan coils and/or radiators and provide a whole home central heating solution. At a similar size to a gas underfloor heating system, the hydrobox is a highly adaptable solution for replacing old boilers. The system comprises of the 11.2kW PUZ-WM112VAA-BS outdoor packaged unit, the ERPX-VM2E indoor hydrobox with FTC7 touch screen controller.

Heating Capacity11.2 kW
Select a Size

Features

New Intuitive Touch Screen Controller

The easy to use touchscreen allows for easy monitoring of energy use and tailored comfort control. The improved commissioning wizard offers easier installation for contractors.

Key Features

  • Self-contained unit, only requiring water and electric connections
  • Single phase power supply with a low starting current
  • Low maintenance and quiet operation
  • Optional 2-Zone Energy Efficient Space Heating Control
  • Energy monitoring as standard
Domestic Applications
  • Underfloor and radiator heating
  • The vast majority of NZ homes
Commercial Applications
  • Small retail outlets
  • Health clinics
  • Public sector and commercial buildings

Reduced Environmental Impact with R32 Refrigerant

R32 has a Global Warming Potential (GWP) one third that of conventional R410A refrigerant. The use of the R32-compatible compressor and advanced control system allows for 30% reduction in refrigerant volume and approximately 75% reduction in CO2 equivalent in some models.

*5 1 Source: IPCC 4th assessment report, global warming potential (GWP) 100-year-value. Comparison of R410A and R32 based on Regulation (EU) no 517/2014.
*6 Source: R410A, PUHZ-HW140VHA2 R32: PUZ-HWM140VHA

Ecodan Technology, Smart Energy Monitoring and System Management

Energy monitoring and management of the Ecodan Heat Pump System means families now have the visibility and freedom to efficiently manage their overall household power consumption for heating and hot water. Energy monitoring ensures households can take advantage of off-peak tariffs, providing them the ability to save even more on their power bill.

Smart Energy Monitoring

View electricity consumption and heat output on the remote controller. End-users can now easily check the following:
  • Consumed electrical energy for space heating, cooling and domestic hot water (kWh)
  • Delivered energy for space heating, cooling and domestic hot water (kWh)

Other Features

  • Monthly and yearly data are stored and can be displayed using the main remote controller
  • External power meter and heat meter can be connected for accurate measurement
  • An SD card is included for storing usage data

Auto Adaptation

Our advanced Auto Adaptation Function measures the room temperature and outdoor temperature, calculating the required heating capacity for the room. The flow temperature is automatically controlled according to the required heating capacity, while optimal room temperature is maintained at all times; ensuring the appropriate heating capacity and preventing energy wastage.

Future Room Temperature Estimation

2-Zone Control Allows you to Simultaneously Control Two Different Temperature Zones

Using Ecodan, it is possible to control two different flow temperatures, thereby managing two different heating load requirements. The system can adjust and maintain two flow temperatures when different temperatures are required for different rooms; for example, controlling a flow temperature of 40°C for the bedroom radiators and another flow temperature of 30°C for the living room underfloor heating.

Specifications

PUZ-WM112VAA-BS - 11.2kW R32 Packaged Outdoor Unit

Function: Hot Water Heating
Type: Packaged Air Source Heat Pump
Refrigerant Type: R32
HEATING (A7/W35)*1
Capacity [kW]: 11.20
Power Input [kW]: 2.38
COP: 4.70
HEATING (A2/W35)*2
Capacity [kW]: 11.20
Power Input [kW]: 3.26
COP: 3.44
COOLING (A35/W7)*3
Capacity [kW]: 10.00
Power Input [kW]: 3.08
EER: 3.25
COOLING (A35/W18)*4
Capacity [kW]: 10.00
Power Input [kW]: 2.08
EER: 4.80
OPERATING RANGE
Heating Operation Ambient Temperature [°C DB]: -25 ~ +24
Cooling Operation Ambient Temperature [°C DB]: +10 ~ +46
DHW Operation Ambient Temperature [°C DB]: -25 ~ +35
OPERATING CHARACTERISTICS
Sound Pressure Level at 1m [dBA]*¹: 47
Flow Rate [L/min]: 14.4 - 32.1
ELECTRICAL DATA
Power Supply: 230V / Single Phase / 50 Hz
Maximum Current / Fuse Rating [A]: 28.0 / 32
GENERAL
Water Pipe Size: 1" BSP Parallel Thread. ISO 228/1-G1B)
Dimensions (WxDxH) [mm]: 1050 x 480 x 1020
Weight [kg]: 119
Notes

*1 Under normal heating conditions at outdoor temp: 7°CDB / 6°CDB, outlet water temp 35°C, inlet water temp 30°C including pump input based on EN14511.
*2 Under normal heating conditions at outdoor temp: 2°CDB / 1°CDB, outlet water temp 35°C, inlet water temp 30°C including pump input based on EN14511.
*3 Under normal cooling conditions at outdoor temp: 35°CDB / 34°CDB, outlet water temp 7°C, inlet water temp 12°C including pump input based on EN14511
*4 Under normal cooling conditions at outdoor temp: 35°CDB / 34°CDB, outlet water temp 18°C, inlet water temp 23°C including pump input based on EN14511
*5 Grille

ERPX-VM2E - FTC7 Hydronic Split Hydrobox

Type: FTC7 Hydronic Hydrobox
Operating Ambient Temperature*1: 0 ~ +35°C (RH<80%)
Sound Power Level [dBA]: 40
WATER DATA
Water Pipe Connections: G1
Primary Expansion Vessel [L]: 10
Charge Pressure [MPa (Bar)]: 0.1 (1)
Target Temperature Range
Space Heating Flow Temperature [°C]: 20 - 60
Space Heating Room Temperature [°C]: 10 - 30
Space Cooling Flow Temperature [°C]: 5 - 25
WATER SAFETY DEVICES -Primary Water Circuit
Control Thermistor [°C]: 1 - 80
Pressure Relief Valve [MPa (Bar)]: 0.3 (3)
Flow Sensor (Minimum Flow 5.0L/min): 5 - 100
WATER SAFETY DEVICES - Booster Heater
Manual Reset Thermostat [°C]: 90
Thermal Cut-out (for dry run prevention) [°C]: 121
ELECTRICAL DATA - Control Board
Power supply: 230-240V / Single Phase / 50 Hz
Current [A]: 1.95
Breaker [A]: 10
ELECTRICAL DATA - Booster Heat
Power supply: 230-240V / Single Phase / 50 Hz
Capacity [kW]: 2
Current [A]: 13
Breaker [A]: 16
GENERAL
Dimensions (WxDxH) [mm]: 530 x 360 x 800
Weight (Empty / Full) [kg]: 31 / 36
Notes

*1. The environment must be frost free

Downloads

Support

Warranty
