Hybrid: PEFY-WP VMA-E

Medium static bulkhead indoor units provide fine temperature control and optimum energy usage.

Models

PEFY-WP20VMA-E

2.2kW / 2.5kW

PEFY-WP25VMA-E

2.8kW / 3.2kW

PEFY-WP32VMA-E

3.6kW / 4.0kW

PEFY-WP40VMA-E

4.5kW / 5.0kW

PEFY-WP50VMA-E

5.6kW / 6.3kW

PEFY-WP63VMA-E

5.6kW / 6.3kW

PEFY-WP71VMA-E

8.0kW / 9.0kW

PEFY-WP80VMA-E

9.0kW / 10.0kW

PEFY-WP100VMA-E

11.2kW / 12.5kW

PEFY-WP125VMA-E

14.0kW / 16.0kW

Note: Above capacity ratings are all nominal rated.

Features

Compact indoor units

All models are 250 mm high allowing installation in tight spaces, such as ceiling cavities or drop ceilings.

Selectable static pressure

Five-stage external static pressure settings (35, 50, 70, 100, 150 Pa) provide flexibility for duct extension, branching and air outlet configuration and are adjustable to meet different application conditions.

Exclusively to HVRF Hybrid Systems

Hybrid 2 pipe heat recovery

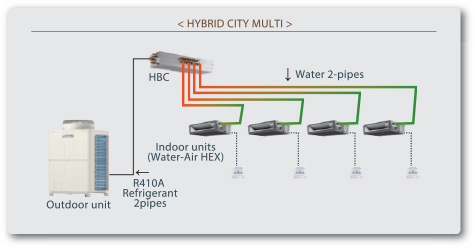

The Hybrid VRF is a world first simultaneous heating and cooling 2-pipe system that uses refrigerant between the outdoor unit and the HBC (Hybrid BC controller), and water between the HBC and the indoor units. HBC is the most unique part in this system and allows heat exchange between refrigerant and water.

Learn more about Hybrid heat recovery
