PLFY-P VLMD-E

2-way airflow type
Slim body (depth 634 mm) for up to P100. Recommended for corridors or long and narrow rooms.

Models

PLFY-P20VLMD-E

2.2kW / 2.5kW

PLFY-P25VLMD-E

2.8kW / 3.2kW

PLFY-P32VLMD-E

3.6kW / 4.0kW

PLFY-P40VLMD-E

4.5kW / 5.0kW

PLFY-P50VLMD-E

5.6kW / 6.3kW

PLFY-P63VLMD-E

7.1kW / 8.0kW

PLFY-P80VLMD-E

9.0kW / 10.0kW

PLFY-P100VLMD-E

11.2kW / 12.5kW

PLFY-P125VLMD-E

14.0kW / 16.0kW

Note: Above capacity ratings are all nominal rated.

Features

Simple panel design

The unobtrusive slim-line profile of the cassette is designed to work in harmony with ceilings and light fittings especially in narrow long areas.

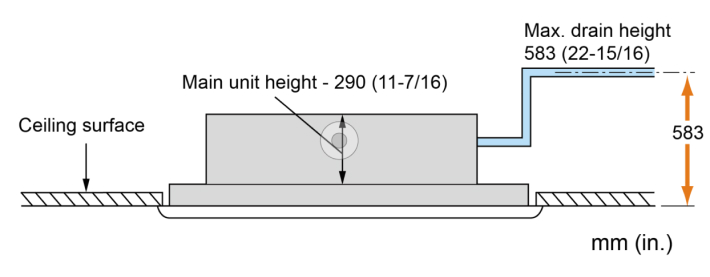

Drain pump as a standard feature

The drain can be positioned anywhere up to 583 mm (22-15/16 in.) from the ceiling surface, providing greater flexibility with long cross-piping and allowing more versatility with piping layouts.

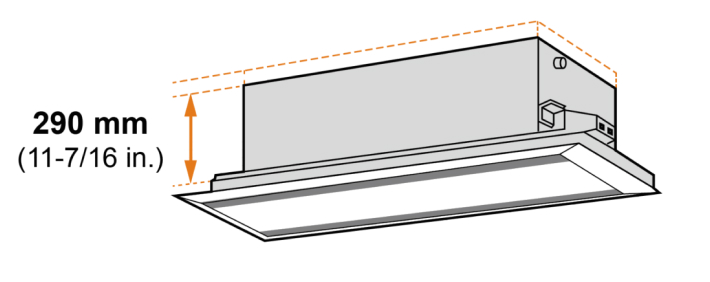

Slim body - only 290 mm (11-7/16 in.) Height

The slimline body is highly suited for installation in narrow ceiling spaces and for replacing obsolete air-conditioning equipment in older buildings. The height of the main unit is only 290 mm (11-7/16 in.).

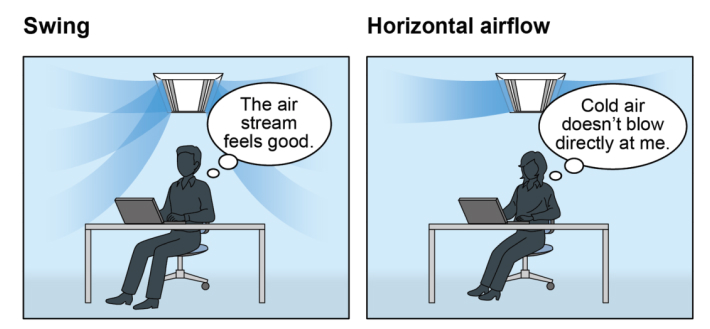

Vane control

Vane angle can be selected from 7 types, including "Horizontal fix" and "Swing," to set the air blow according to preference. *Airflow direction cannot be changed individually.

PLFY-P VLMD-E
