Designed for ultra-quiet operation and easy maintenance, the unit provides comfortable air conditioning for a wide range of applications where floor or wall space cannot be used practically.



4.5kW / 5.0kW


7.1kW / 8.0kW


11.2kW / 12.5kW


14.0kW / 16.0kW

Note: Above capacity ratings are all nominal rated.

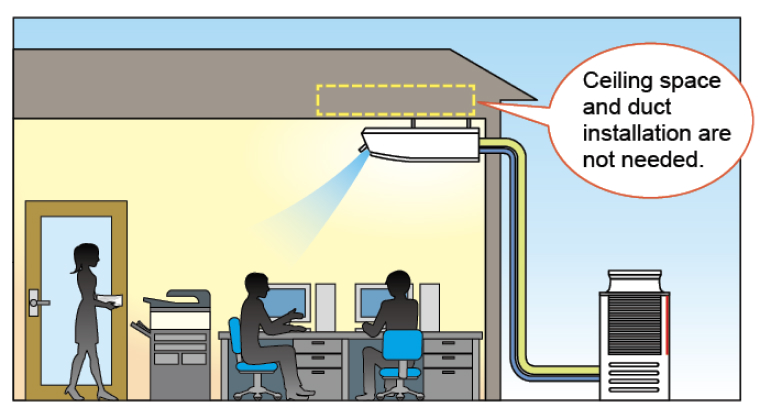

Easy installation

The ceiling suspended cassette can easily be installed without requiring ductwork, even if the ceiling does not have sufficient space.

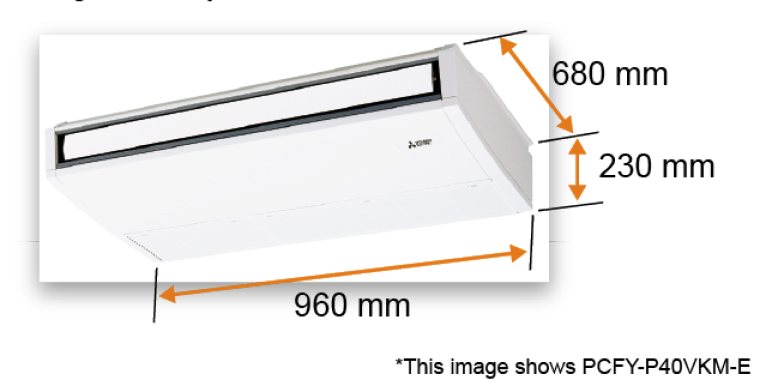

A height of 230 mm for harmony with the interior design

Sleek and slim with stylishly curved lines, the PCFY-Series blends right into any interior.

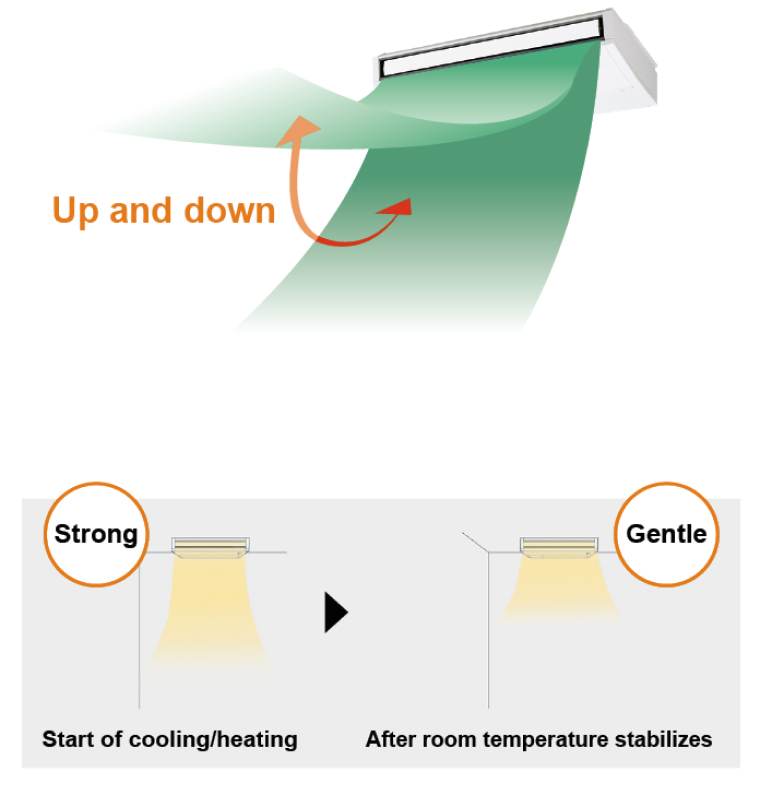

Automatic air-speed adjustment

An automatic air-speed mode automatically adjusts airflow speed to maintain comfortable room conditions at all times. This setting automatically adjusts the air speed to conditions that match the room environment. At the start of heating/cooling operation, the airflow is set to high speed to quickly heat/cool the room. When the room temperature reaches the desired setting, the airflow speed is decreased automatically for stable and comfortable heating/cooling operation.

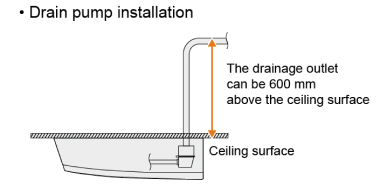

Drain pumps can be supported throughout the horsepower range. (Optional)

The optional drain pump allows the drain connection to be raised as high as 600 mm, expanding flexibility in choosing an installation location.

Auto vane control

Outlet vanes can be moved up and down using the remote controller. This improved airflow control feature helps eliminate the cold draft feeling.
