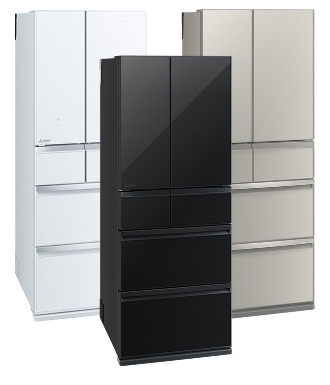

Four Drawer WX470 Refrigerator

WX-F Series // MR-WX470F-S-A

This Metallic Silver glass front 470L French Door Four Drawer Fridge is the flagship of multi drawer refrigeration. Made in Japan, it features separate fully customisable temperature zones including the Vitalight Humidity Drawer and the Versa Freezer Drawer designed to keep all kinds of food fresher for longer. Inverter technology ensures optimum temperature management while saving power, ensuring longer lasting freshness, with unparalleled whisper quietness.

470 Litre CapacityWidth: 650mm, Height: 1696mm, Depth: 709mm
Neuro Inverter
10 year Inverter Compressor Warranty*
Select a Size
Select a Colour


Our Technology

Since 1954 the engineers at Mitsubishi Electric have become experts at developing reliable, design-orientated, and functional refrigerators. Designed and engineered in the pursuit of excellence, our refrigerators have been developed with superior food storage in mind and have been tested with uncompromising precision.

Watch videos and find in-depth information on our technology

Our WX470 Multi Drawer Refrigerator features separate temperature zones that allow for optimum temperature control and customisation so food is kept fresher for longer. With a stunning glass flat panel design, touchscreen controls, and a large 470L capacity, the WX will take centre stage in your kitchen for years to come.

The Most Advanced Refrigerator Yet

Neuro Inverter Technology

The use of super-efficient Inverter Technology combined with monitored temperature sensors installed throughout the refrigerator makes the WX one of the most efficient fridges in the New Zealand market. The WX is able to accurately control the temperature of each drawer to ensure excellent customisation and minimal temperature fluctuations. Not only that, but the WX learns from and adapts to your lifestyle in order to optimise output for unparalleled energy efficiency.

Large Capacity, Slim Design

The Mitsubishi Electric WX Refrigerator features its most advanced insulation yet. The ‘vacuum insulation panels’, or ‘VIP’ is thinner and 10x more efficient than conventional insulation. The result is a larger internal capacity for maximum food storage space while maintaining smaller external dimensions for a slim, sleek design.

Non-Plumbed Automatic Ice Maker

The WX features a Non-Plumbed Automatic Ice Maker with separate ice drawer. As there is no separate plumbing connection required the fridge can be placed anywhere in your kitchen, not just near existing pipe work. And with its advanced cleaning filter that removes impurities, bacteria, and chlorine, ice will always be clean and fresh.

Removable Water Tank

The water tank, located at the bottom of the Refrigeration Compartment, saves significantly more space in comparison to side-by-side refrigerators, which typically have ice makers integrated in the door design and compromise on available depth. The water tank is easily removed, cleaned and refilled at the kitchen sink without the hassle and additional cost of plumbing the refrigerator into the water supply. This allows bottled mineral water to be used also.

Water Purification

Most automatic ice makers require filters to be replaced every 3-6 months and can be a costly exercise. Water in the refrigerator tank is purified through a lead cleaning filter which removes impurities, bacteria and chlorine to ensure fresh, clean, tasty ice for up to 10 years without needing to replace the filter.

Easy Clean System

The water supply system is easy to clean; removable water tank components just need to be flushed periodically with water to maintain optimum performance. Rubber components are treated with an anti-bacterial coating.

Ice Drawer

The separate Ice Drawer ensures ice cubes remain odour free, preventing absorption of lingering food odours that may be present.


LED Touch Panel

The WX Refrigerator features an intuitive LED Touch Panel that allows you to use the advanced functions with ease. Each function can be activated using a very simple three step process.

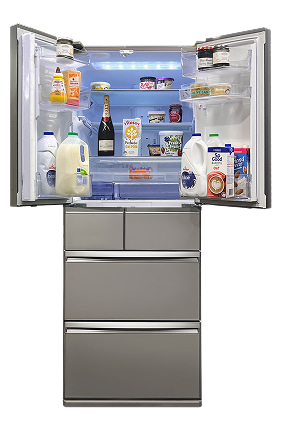

Refrigeration Compartment

Functional and illuminated by 10 LED lights, the French Door Refrigerator Compartment provides significantly more usable space than ‘side-by-side’ designs. The French Door design means that the refrigerator compartment is at a convenient waist height for easy access to refrigerator items.

French Door Design

Provides significantly more usable space than ‘side-by-side’ designs. The design allows wider items to easily fit in the main Refrigeration Compartment.

Egg Storage

The portable egg holder is specifically designed for storing eggs. Research has shown that when eggs are stored stationary instead of in the fridge door, shelf life and freshness are increased by up to four times due to the lack of vibration.

True Multi Temperature Zone Control

With eight temperature sensors installed throughout the refrigerator, the separate compartments are actively monitored and adjusted to ensure food is kept in its ideal environment.


Sliding Chilled Cases

(Refrigeration Compartment)

Short term food storage is now even more convenient and sophisticated. The WX features the Sliding Chilled Case, perfect for neatly storing deli meats, cheeses and dairy products. And the Supercool Chilling Case is specifically designed to prolong the freshness of meats and fish.

Supercool Chilling Case

Keep meat and fish fresher for longer without having to freeze them. The Supercool Chilling Case is ideal for storing fresh meat for up to seven days and fresh fish for up to five days without the need to freeze.

Sliding Chilled Case

Conveniently store deli items such as deli meats, dips and dairy products. The Sliding Chilled Case keeps items neat, organised and out of the way and allows food to be stored in a fresh and healthy environment.


Innovative Shelving

(Refrigeration Compartment)

Cleaning is easy with tempered glass shelves. The middle shelf can also be pushed back to make space for taller items.


Versa Freezer Drawer

The Versa Drawer gives you the ability to preserve food quality without losing moisture and taste, making storage more convenient and preparation a breeze even while food is still frozen. The Versa Drawer has three modes: Supercool Freezing, Soft Freezing, and Hot Freezing. And as an added bonus, when additional storage capacity is required the Versa Drawer can also be utilised for standard freezing.

Power Storage

The LED Sensor automatically controls the temperature of stored food, preventing frost and discolouration due to temperature differences within the freezer whilst preserving the freshness and taste of your food.

Hot Freezing

The LED Sensor and Twin Dampers are designed specifically to make it possible to place hot food into the freezer. The LED Sensor automatically detects hot food and adjusts the cold air flow directly onto the hot food from the separate air outlet for added convenience, time saving and to preserve the quality and freshness of the food.

Supercool Freezing

Maximise taste and maintain texture. Supercool Freezing ensures food is frozen evenly, locking in moisture and minimising cell destruction. Supercool Technology ensures food is frozen evenly so only the finest ice crystals are able to form, preserving the freshness and texture of food and locking in maximum flavour.

Soft Freezing

Soft Freezing allows food to be frozen for up to three weeks in a ‘soft’ state. This means meat can be easily cut without thawing. Pasta sauces can be stored frozen but kept soft enough to scoop out portions, this is also ideal for left over dips and baby foods.

Supercool Freezing process

  1. The temperature drops below freezing point without freezing the food.
  2. With a quick blast of cool air, ice particles form instantly ensuring food is frozen evenly.
  3. Minute ice crystals develop evenly, locking in freshness, taste and texture.

Read more on the Versa Drawer

Soft Freezing is great for

  • Easy portioning of meat and fish cuts.
  • Raw meat such as beef for carpaccio.
  • Soft frozen desserts, sorbets and smoothies.
  • Sauces, dips and baby food.
  • Frozen foods to be used within two to three weeks.

Freezer Drawer

The Freezer Drawer is divided by a Sliding Tray at the top that can be pushed back to reveal the rest of the freezer drawer. The Freezer Drawer is roomy enough to fit bulky items such as ice cream tubs, loaves of bread and frozen vegetables. The top tray is ideal for storage and organisation of flat pack items such as meat packs.

Rapid Cool

Increase the cooling capacity of the refrigerator, freezer, and humidity compartments. This is ideal if a large amount of food is being stored, or doors/drawers are being opened and closed frequently. Automatically turns off after two hours.

Customisable Temperature Control

Providing true versatility, the freezer drawer can be customised from around -22°C to -16°C.

Frost Free Freezer

Say goodbye to manually defrosting your freezer. The Mitsubishi Electric Frost Free Freezer automatically prevents ice build up.


Humidity Drawer

All images used are for illustrative purposes only.

The Humidity Drawer is designed to maximise the freshness of produce. The drawer provides ideal surroundings for fruit and vegetables with a higher humidity than the main refrigerator compartment, ensuring fruit and vegetables stay crisper and fresher for longer.

Keep Vegetables Moist

Perfect for leafy vegetables, this function lowers the cooling airflow of the humidity drawer to reduce dryness and increase the moisture levels of your produce, keeping them fresh and crispy.

Vitalight LED System

The unique Vitalight LED lighting system is designed to slow down the wilting process of produce and maintain their original vitamin and anti-oxidant levels for longer. Vegetables and fruit stored in the specially designed Humidity Drawer with integrated Vitalight LED System will last significantly longer in comparison to conventional vegetable crisper bins.

Sliding Top Tray

The Humidity Drawer is divided by a Sliding Tray at the top that can be pushed back to reveal the rest of the drawer. The top tray is ideal for storage and organisation of smaller, easily bruised items such as tomatoes.


Additional Features

Silent Operation

WX Refrigerators are some of the quietest in their class at only 15dBA. This makes them ideal for open plan living.

*400 - 499L Four Drawer Refrigerator

Energy Efficient

The WX470F achieves a 4 Star Energy Rating. The result is lower long-term running costs, for ultimate cost efficiency.



· Capacity - Total: 470 litres · Capacity - Freezer Drawer: 89 litres
· Capacity - Refrigerator Room: 230 litres · Capacity - Vegetable Drawer: 98 litres
· Capacity - Ice Drawer: 23 litres · Capacity - Versa Drawer: 30 litres
· Dimensions (WxHxD): 650 x 1696 x709 · Weight: 112 kg Net / 119kg Gross
· Castors: x4 · Adjustable Foot: x2
· Colour: Metallic Silver · Opening: Center Split French Doors
· Cooling System: Forced Air Convection · Frost Free: Yes
· CFC Free: Yes (R600a Iso Butane) · Inverter Technology: Yes
· Vacuum Insulated Panels: Yes · Neuro Fuzzy Logic: Yes
· ECO Mode: Yes · ECO Guide: Yes
· Power Save Mode: Yes · Rapid Cool Mode: Refrigerator Compartment, Humidity Drawer, Freezer Drawer
· Monitored Temperature Sensors: 8x · External LED Touch Control Panel: Yes
· Door Alarm: Refrigerator Compartment, Ice Drawer, Versa Drawer, Freezer Drawer, Humidity Drawer · Anti-Bacterial Food Liner: Yes
· Deodorizer: Yes · Energy Star Rating: 4
· Sound Level: 15dBA · kWh Per Year: 340
· Freezer Drawer - Standard Freeze Function: Yes · Freezer Drawer - Quick Freeze Function: No
· Freezer Drawer - Sliding Top Tray: Yes
· Fridge - Quick Cooling Function: No · Fridge - Elevating Shelf: No
· Fridge - Two-Way Flexi Shelf: 1x · Fridge - Wide Chilled Case: 1x
· Fridge - Super Cool Chilling Case: 1x · Fridge - Small Item Case: No
· Fridge - Egg Tray: 1x · Fridge - Large Bottle Pocket: 1x
· Fridge - Small Bottle Pocket: 1x · Fridge - Adjustable Door Pocket: 4x
· Fridge - LED Compartment Light: Yes · Fridge - Multi Temperature Setting: Yes
· Ice Drawer - Automatic Ice Maker: Yes · Ice Drawer - Frost Free: Yes
· Ice Drawer - Rapid Ice Mode: Yes · Ice Drawer - Standard Ice Mode: Yes
· Ice Drawer - Water Supply V-LED Purifying: No · Ice Drawer - Removable Water tank: 1x
· Ice Drawer - Removable Easy Clean Components: Yes · Ice Drawer - Removable Easy Clean Ice Tray: Yes
· Ice Drawer - Ice Tray and Scoop: Yes · Ice Drawer - Soundproof Mat: Yes
· Vegetable Drawer - Light Emitting Vitamin Guard: Yes · Vegetable Drawer - Constant Humidity Care: Yes
· Vegetable Drawer - Keep Vegetables Moist: Yes · Vegetable Drawer - Quick Cooling Function: No
· Vegetable Drawer - Sliding Top tray: Yes · Vegetable Drawer - Multi Temperature Setting: Yes
· Versa Drawer - Soft Freeze Function: Yes · Versa Drawer - Rapid Cool Function: No
· Versa Drawer - Standard Freeze Function: Yes · Versa Drawer - Hot Freeze Function: Yes
· Versa Drawer - Supercool Function: Yes · Versa Drawer - Aluminium Tray: Yes
· Versa Drawer - Multi-Temperature Setting: Yes


Note: Dimension unit (mm). All dimensions include kickplate.





It is strongly recommended to use only lukewarm water and a soft cloth when cleaning. Cleaning agents can cause cracking to both interior and exterior plastic components of your refrigerator.

When removing the required Energy Rating Label off our Stainless Steel refrigerators we recommend using "Tea Tree Oil" or "Eucalyptus Oil" rather than an abrasive cleaner as this may scuff the stainless steel finish.


* Notes: Actual price may differ.
All images used are for illustrative purposes only.
Warranty: 24 months comprehensive parts and labour warranty and a 10 year compressor parts only.
