Designed for Mitsubishi Electric Ducted Heat Pump Systems
Create the perfect climate in every room, with intelligent Zone Control.
Next generation zone control
Introducing ZoneIQ
Comfort Made Simple
Creating a perfectly comfortable home shouldn’t be complicated. ZoneIQ, our next generation zone control system, is specifically designed to work with your Mitsubishi Electric Ducted System.
Maximise Efficiencies
Instead of contending with uneven temperatures or wasting energy heating or cooling* unoccupied rooms, ZoneIQ puts precision, efficiency, and effortless control at the centre of your home’s comfort.
Designed for the Way You Live
Every home is unique, its layout, the way sunlight moves throughout the day, how families use each space. That’s why ZoneIQ goes beyond simply switching zones on and off. It allows each space to be set and maintained at its own ideal temperature and intelligently adjusts airflow room by room.
The Perfect Climate in Every Room
The result is consistent comfort where you want it, when you want it, and all while maximising energy savings by only conditioning the rooms you’re actually using.
* Does not heat and cool simultaneously.

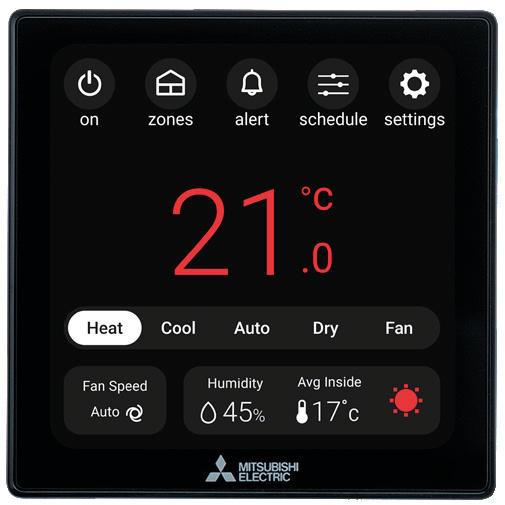

Note: Above example shows system in heating.
Understanding the issue

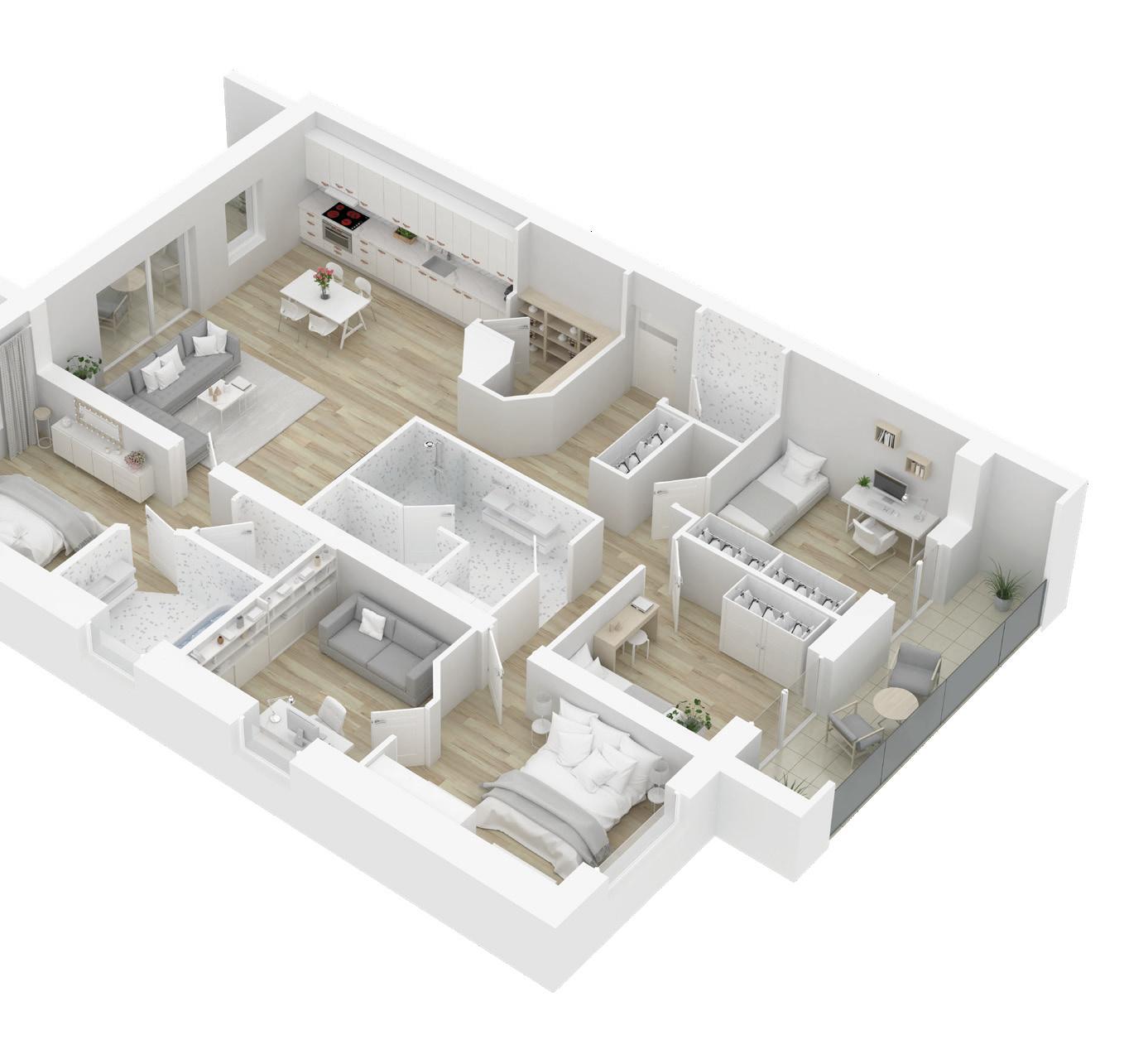

The Drawbacks with Traditional Ducted Systems
In a standard ducted air conditioning system, heating or cooling is delivered to all rooms at the same time, regardless of whether spaces are in use or have reached a comfortable temperature. The system operates from a single thermostat, meaning every room is treated the same.
This can lead to:
- Over-heating or over-cooling rooms that don’t need conditioning
- High energy use, as air is supplied to the entire home whenever the system runs
- Limited comfort control, with no ability to tailor temperatures to individual rooms
- Inefficient operation, especially in homes with varying room usage
What ZoneIQ delivers
Key Features of ZoneIQ
Personalise temperatures to suit individual comfort needs in every room.
By heating or cooling only the rooms that are in use, helping reduce running costs.

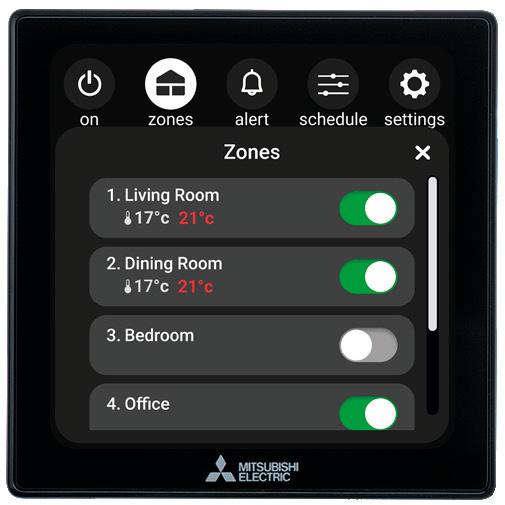

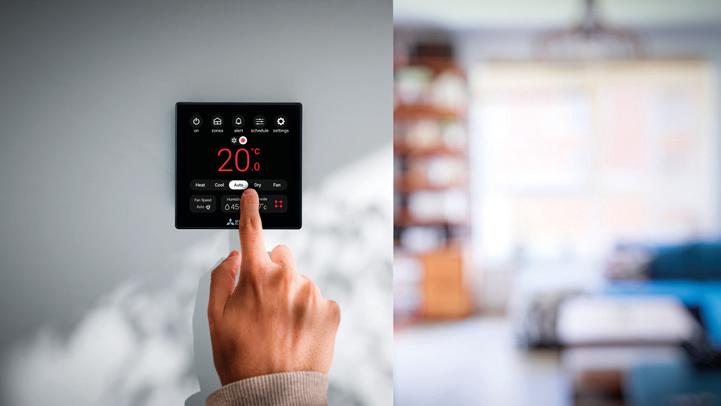

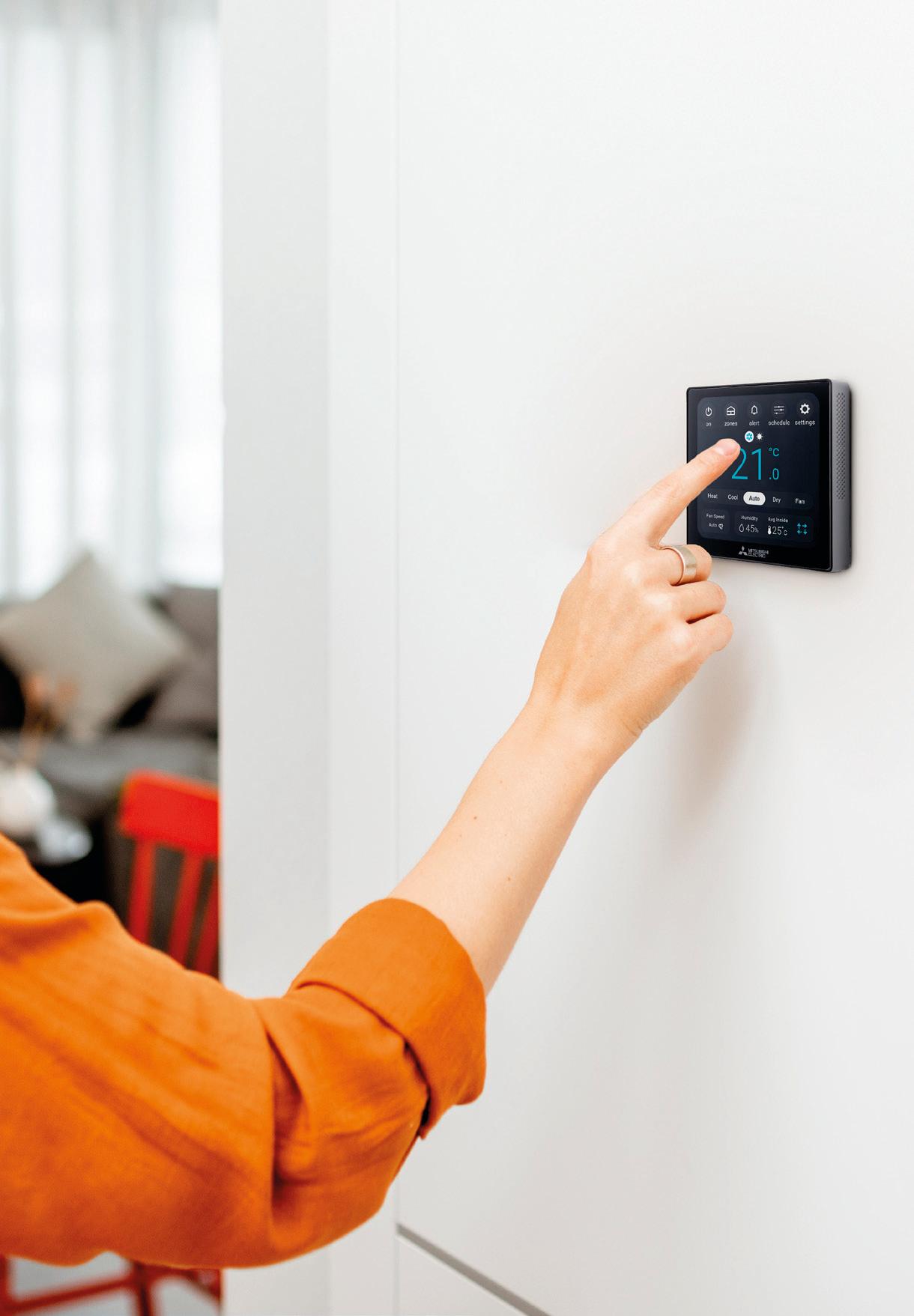

Simple, intuitive operation from a wall-mounted touchscreen.
Manage your system from anywhere at any time via the app.
* When compared to the same system without ZoneIQ.
Precision at your fingertips
Room by Room Temperature Control
Instead of relying on a single sensing point, ZoneIQ can use responsive sensors in every zone throughout your home. Each sensor monitors real-time conditions in each zone and sends temperature and humidity information to the ZoneIQ Main Controller for accurate room-by-room control.
What This Means For You
Personalised Comfort
- Set and maintain precise temperatures for individual zones, so every room feels just right.
- Temperature settings can be adjusted in ±0.5°C increments, allowing for truly personalised comfort.

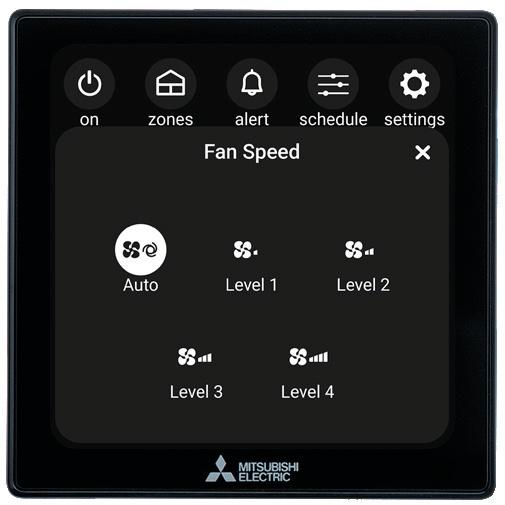

- Easy selection of heating, cooling, auto and fan speed modes.
Stop wasting energy
Maximise Your Energy Savings
Optimal Individual Room Temperature
ZoneIQ compares real-time conditions against each zone’s set temperature and intelligently identifies where comfort is needed. The system then precisely adjusts output to ensure every zone efficiently maintains its optimal target temperature.
No More Heating or Cooling Empty Rooms
Why waste money heating or cooling rooms that are not in use? ZoneIQ allows you to easily turn rooms off that are unoccupied.
Maximise Energy Efficiency
When a zone reaches its set temperature, airflow is automatically reduced to that room and conditioned air is prioritised to the zones that still need it. This prevents over-heating or cooling individual rooms unnecessarily. This targeted control minimises waste, and improves overall system efficiency.
ZoneIQ scheduling

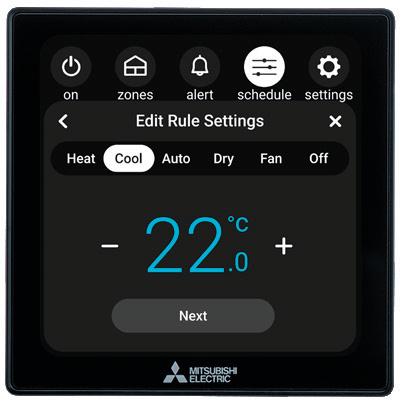

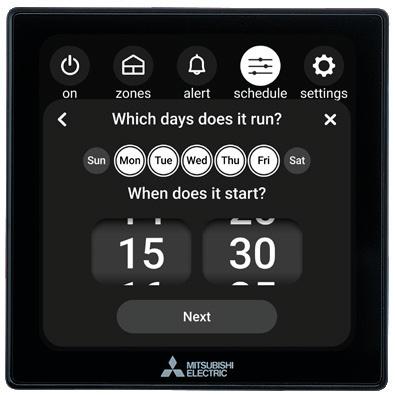

Create Schedules and Timers
ZoneIQ Weekly Scheduling allows your home to adapt seamlessly to how you live. Schedule up to 10 operating patterns across the entire week, set different temperatures for individual rooms,* and turn unused areas off, all while enjoying perfectly timed comfort that runs automatically in the background.
Wake up to a warm home in winter, cool bedrooms before bedtime in summer, and leave the house with confidence knowing your system adjusts itself. Comfort is always there, exactly when you need it.
* Does not heat and cool simultaneously.
Benefits of weekly scheduling
Maximise Comfort Whilst Minimising Waste
- Enhanced Comfort
Enjoy perfectly conditioned spaces when you wake up, return home, or go to bed - every day of the week. - Energy Efficiency
Only heat or cool the rooms you’re using with smart scheduling, helping to reduce wasted energy and lower your carbon footprint. - Lower Running Costs
Smarter operation helps reduce wasted energy and can contribute to lower power bills.* - Set-and-Forget Convenience
Once programmed, ZoneIQ operates automatically with no need for daily adjustments.
* When compared to the same system without ZoneIQ.
Smart airflow management
Airflow is Intuitively Adjusted
Not all rooms in your home are the same. Some rooms receive direct sunlight and warm up quickly, while others remain cooler due to shade or limited use.
ZoneIQ intelligently adjusts airflow to suit each room, ensuring the right amount of heating or cooling is delivered* exactly where it’s needed, and only when it’s needed.
For example, the system may increase airflow to busy or sun-exposed rooms and reduce it in quieter or cooler areas that are already at set temperature.

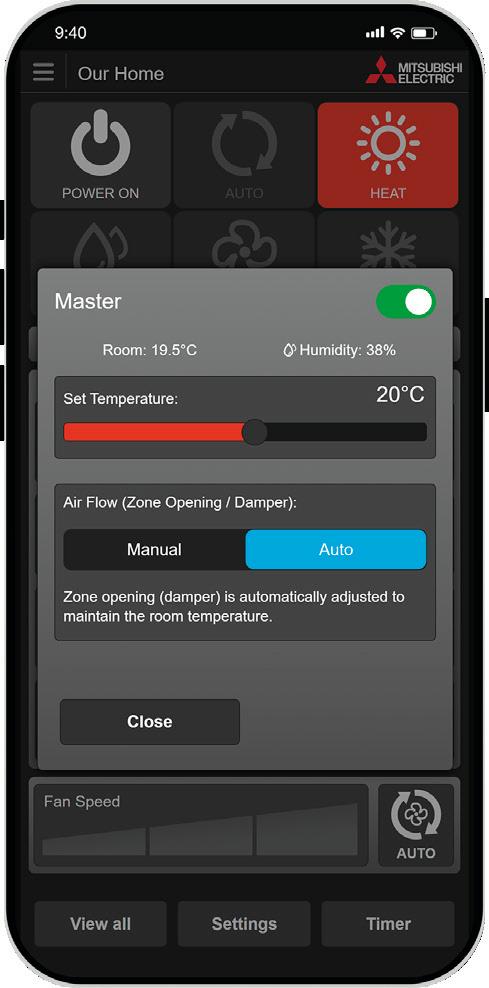

Intelligent Damper Control
ZoneIQ intuitively adjusts dampers in precise 5% increments, allowing airflow to be fine-tuned for each zone.
Users can also manually set how much airflow they want in individual rooms, giving greater control over comfort.
How damper control works* Does not heat and cool simultaneously.
Humidity management

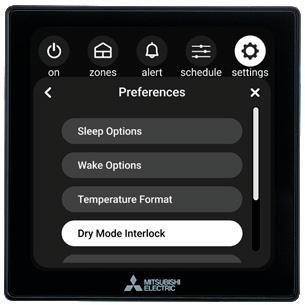

Dry Mode Interlock
ZoneIQ uses advanced sensors to monitor indoor humidity conditions throughout your home. When the unit is operating in Dry Mode it will work to reduce humidity in the air, targeting a user-defined value.*1
Target humidity can be set between 40% and 70%, with ZoneIQ responding to average readings across the home.*2

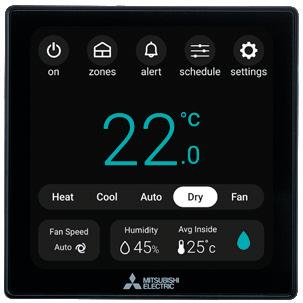

Dry mode
Enable interlock
Set target humidity
What This Means for You
- Dry Mode assists in reducing humidity and lessening the risk of mould and mildew growth.
- Supports a healthier, more comfortable environment helpful for allergy-sensitive occupants.
- Targets the desired average humidity in the home, preventing the house from becoming too dry.
- Perfect for warm, humid days or nights when the air can feel sticky.
- Supports a more balanced indoor feel upon returning home.
*1 Dry mode interlock does not increase humidity in the home.
*2 Humidity reduction may vary depending on ambient conditions. Results may differ or not always be immediately visible.
Control from anywhere

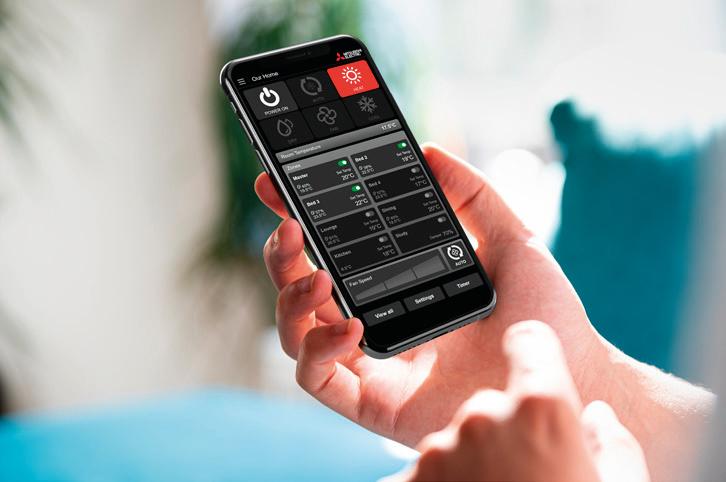

ZoneIQ Wi-Fi Control

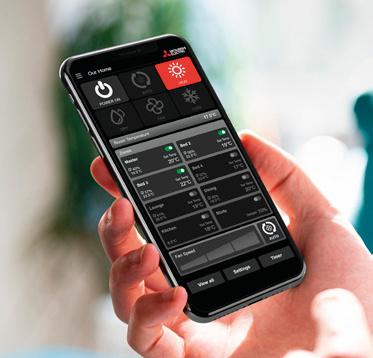

With the Wi-Fi Control App, there’s no need to manage your ducted system from the wall-mounted main controller. Whether you’re relaxing at home, working late or away on holiday, the intuitive app interface lets you manage your system room-by-room with confidence from wherever you are.

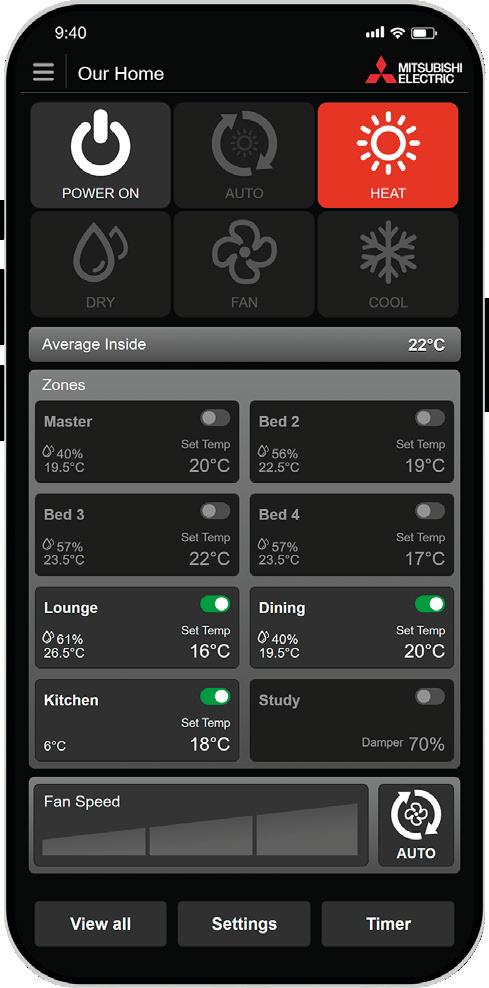

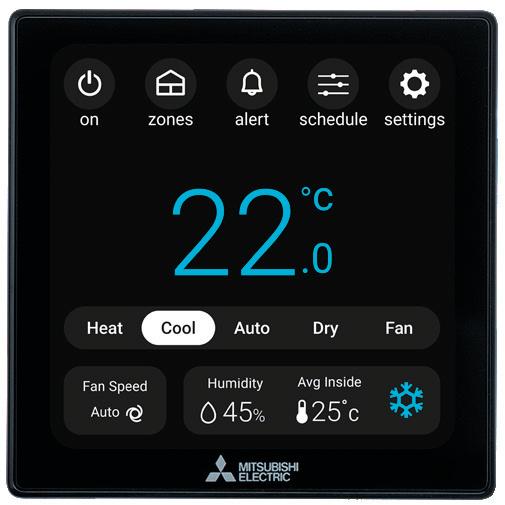

All zones are displayed on a single screen, making it easy to view temperatures and adjust settings across your entire home.
Complete Home Control at a Glance
- View and manage all zones from one simple screen. Instantly see which areas are on or off, check current temperatures, and make quick adjustments without moving from room to room.
Personalised Zoning Made Simple
- Customise your system to suit your lifestyle.
- Set and adjust temperatures for individual zones.
- Turn unused areas off to save energy.
- Create custom zone names.
Create Custom Zone Names
Beyond the home

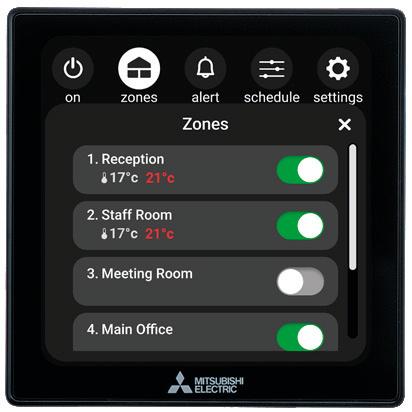

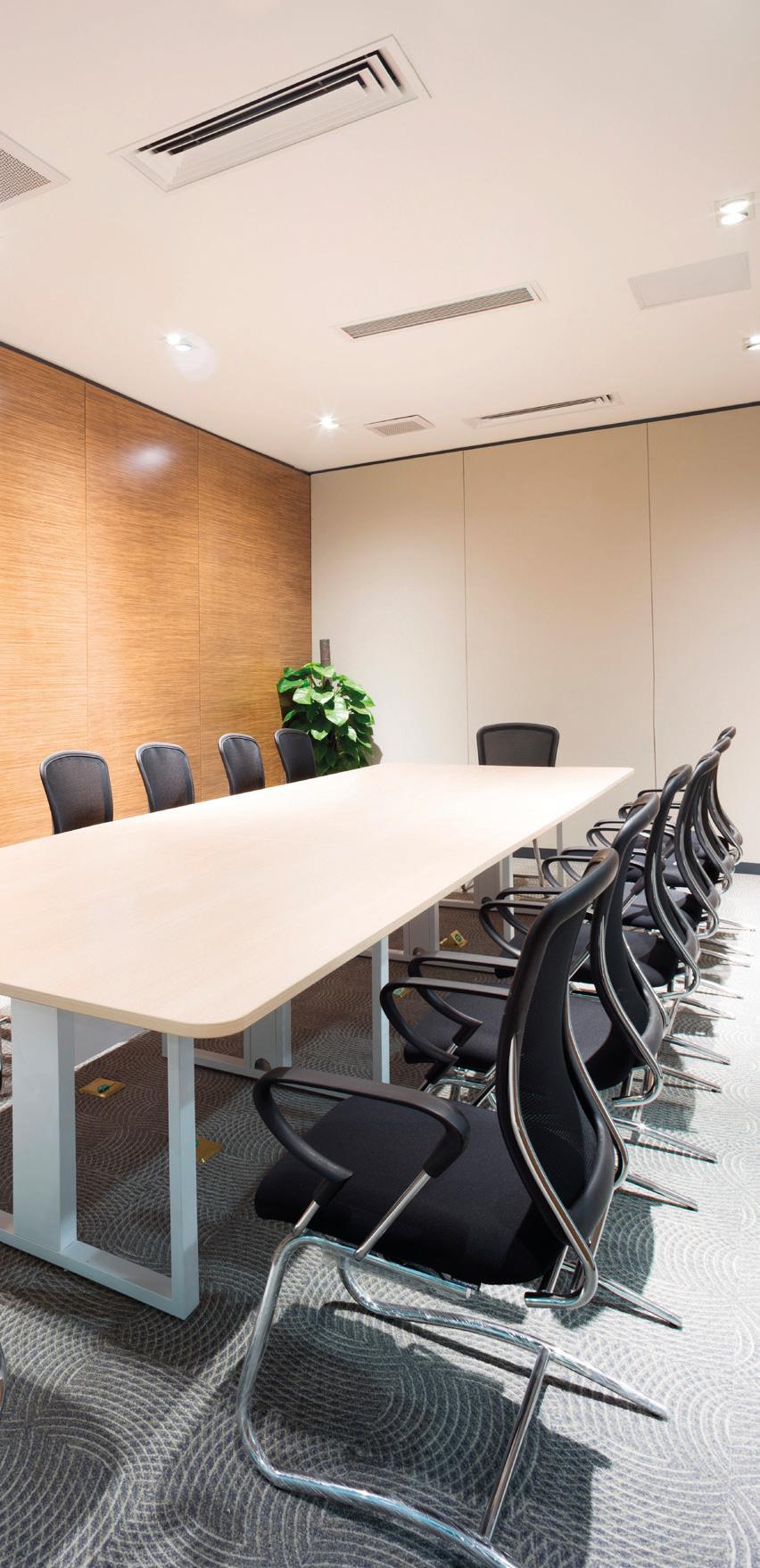

ZoneIQ Designed for Commercial Applications Too
ZoneIQ delivers intelligent climate control for commercial environments, recognising that different people prefer different temperatures. By eliminating the common “fight for the thermostat,” it creates a more comfortable and balanced workplace.
By dividing a building into independent zones, each area can be set to its own ideal conditions,* significantly improving overall comfort and workplace productivity. Spaces such as meeting rooms often used intermittently throughout the day can be switched off when unoccupied and activated only when needed, reducing unnecessary energy consumption.
Advanced scheduling allows each zone to operate according to actual usage patterns, ensuring heating or cooling* occur only where and when they are required. With support for up to 10 Zone Remote Controllers, businesses gain precise control over each zone. For larger or irregular spaces, multiple sensors can be installed within a single zone - the system averages these readings to deliver highly accurate and consistent temperature control.
* Does not heat and cool simultaneously.
The system
Key ZoneIQ Components

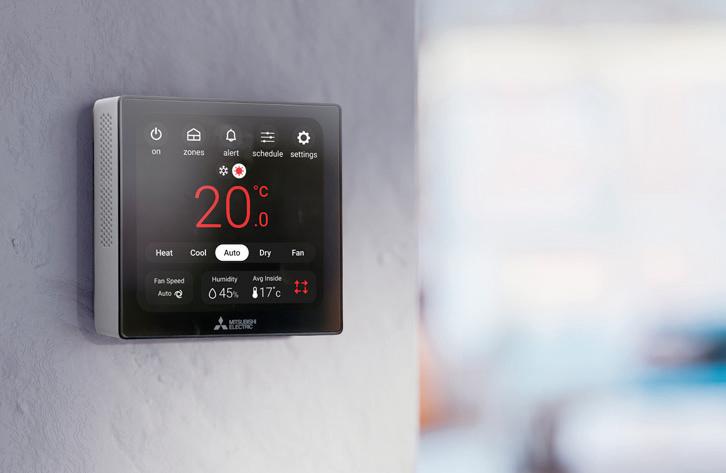

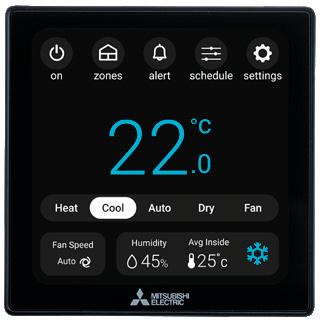

Main Controller with Room Sensors
The ZoneIQ Main Controller acts as the intelligent hub of your system, communicating with room sensors or additional room controllers in each space to monitor temperature and humidity throughout your home. By receiving real-time feedback from every zone, the Main Controller makes precise adjustments to deliver balanced comfort, improved efficiency,* and smarter overall system performance.
Additional Zone Remote Controllers
Enjoy convenient, in-room control with optional Zone Remote Controllers. Easily turn your zone on or off and adjust the temperature from within the room, with a simple, easy-to-use interface. Choose from black or white to complement your interior style, with flexible mounting options including wall-mounted or freestanding, all while working seamlessly with your main controller for personalised comfort every day.
Advanced Room Sensors
These discrete sensors monitor the temperature and humidity in individual rooms and send this information back to the Main Controller. Designed to be unobtrusive, they provide accurate temperature feedback without user interaction, ensuring each zone is conditioned correctly while maintaining a clean, minimalist look.
ZoneIQ Wi-Fi Control
Mitsubishi Electric Wi-Fi Control App puts complete control of your ducted system in the palm of your hand. Adjust temperatures, view and manage all zones at once, and easily update schedules from anywhere using your smartphone or tablet.
* When compared to the same system without ZoneIQ.
Technical details
Specifications
| Product | Model | Description | Connections | Dimensions HxWxD (mm) |
|---|---|---|---|---|
| Interface | PAC-ZC04L240C-A PAC-ZC10L240C-A |
Communicates between the ducted heat pump and peripheral controls, such as dampers and controllers, to operate the system | 1 per unit | 278 x 336 x 69 |
| Wireless Receiver | PAR-ZR01R-A | Used for wireless communication between sensors and interface | 1 | 80 x 100 x 30 |
| Main / Sub RC | PAR-ZM01A-A | Main Controller for total system and zone operation | 2 | 86 x 86 x 23.4 |
| Backing Plate | PAC-SL57RK-E | Backing plate to cover controller holes if doing a retrofit | 1 | 115 x 171 x 7 |
| Zone RC | PAR-ZR01AW-A PAR-ZR01AB-A |
Operation of a single zone, changes set temperature and airflow settings | Up to 10* | 86 x 86 x 20 |
| Wireless Sensor | PAR-ZR01S-A | Detects temperature and humidity and enables linear zone control | Up to 10* | 56 x 56 x 16 |
| Wired Sensor | PAC-SE42TS-E | Detects temperature and enables linear zone control | 4 | 120 x 70 x 15 |
| Wi-Fi Adapter | MAC-588IF-E | Allows control with Mitsubishi Electric Wi-Fi Control App | 1 | 74 x 42 x 20 |
* Maximum of 10 wireless sensors supported (zone remote controllers and simple room sensors combined).
Browse the Range
Explore Zone Control products designed for flexible, room-by-room comfort.
Zone Control Products
Compatible Models
ZoneIQ is compatible with the following Mitsubishi Electric ducted central heat pump systems.
View Central Ducted Series
Get started
Ready to take control of your home's comfort?
Talk to a ZoneIQ specialist about intelligent zone control for your ducted heat pump system.
Or call us on 0800 784 382
