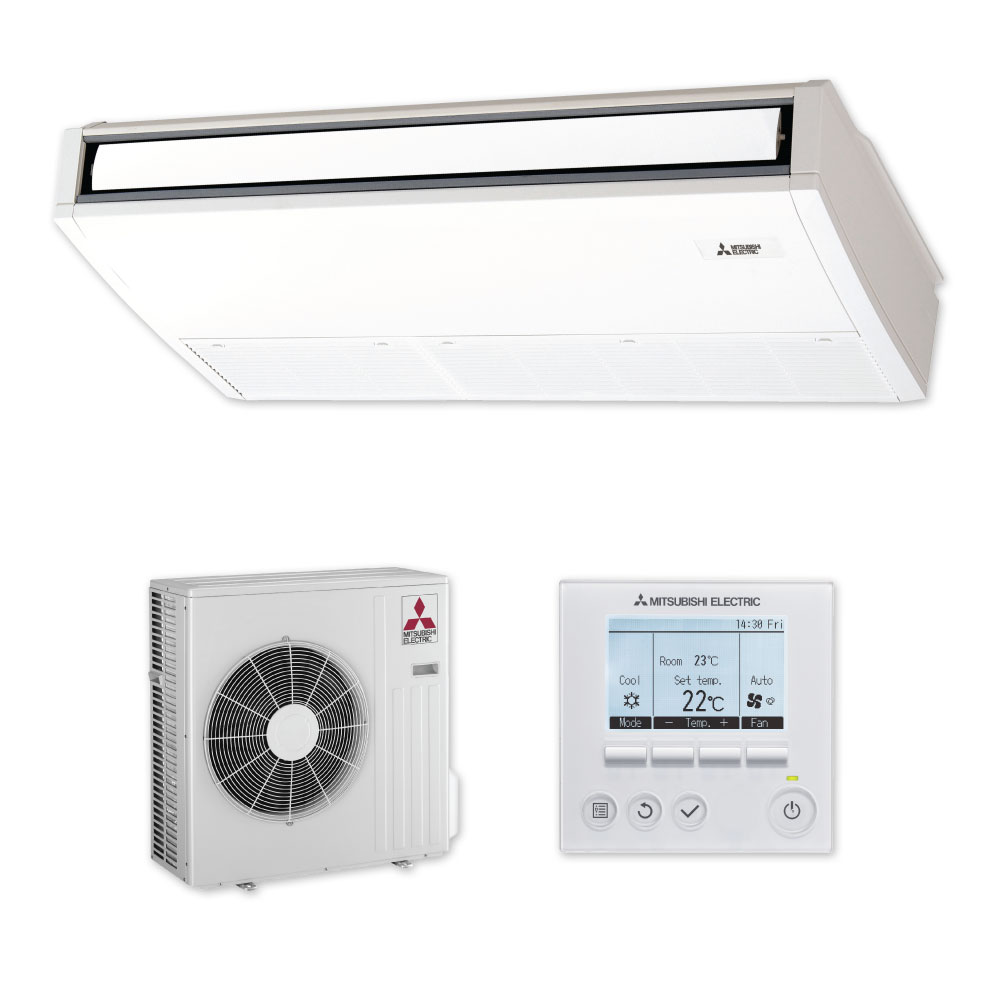

Suspended PCA50 Heat Pump

Medium Room System // PCA-RP50KAQ

Our Suspended PCA50 high performance heat pump is designed for style and efficiency. With four speed settings and auto air-speed adjustment it is ideal for mid-sized areas. Upgraded with a Deluxe PAR wired Controller, with backlit LCD display and user-friendly menus. With the PAR Controller you are able to precisely control power consumption and temperature, setting up to eight patterns per day.

Cooling Capacity4.9 kW
Heating Capacity5.5 kW
Select a Size - R32 Refrigerant
Select a Size - R410A Refrigerant
Select a Contoller


Stylish Design

Sharp, clean lines make this unit blend in more easily with your ceiling, providing low-profile heating or cooling.

Automatic Air Speed Adjustment

In addition to the conventional 4-speed setting, our suspended units are now equipped with an automatic air-speed adjustment mode. This setting automatically adjusts the air speed to match the room environment. At the start of heating or cooling operation, the airflow is set to high-speed to quickly heat or cool the room. When the room temperature reaches your desired setting, the airflow speed is decreased automatically for stable comfortable heating or cooling operation.

Fresh Air Intake Option

Units are equipped with an opening that enables the induction of fresh outside air.

Deluxe PAR Weekly Controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.

Click here to find out more


PCA-RP50KAQR2 - Power Inverter Ceiling Suspended

· Function: Cooling/Heating · Type: Single Split, Power Inverter
· Capacity - Cooling: 4.9 kW · Capacity - Heating: 5.5 kW
· Capacity - Cooling (min. - max.): 1.1 - 5.6 kW · Capacity - Heating (min. - max.): 0.9 - 6.6 kW
· Power input - Cooling: 1.49 kW · Power input - Heating: 1.68kW
· EER / COP: 3.48 / 3.49 · AEER / ACOP: 3.41 / 3.44
· Operation Range - Cooling: -15 / +43°C · Operation Range - Heating: -10 / +24°C
· Airflow (Lo-Mi1-Mi2-Hi, Litre/sec): 167-183-217-250 · Sound Level (Lo-Mi1-Mi2-Hi, dB(A)): 32-34-37-40
· Running Current: 0.37 · Power supply: 230V / Single Phase / 50 Hz
· Refrigerant: R410A · Liquid pipe size (OD, mm): 6.35
· Gas pipe size (OD, mm): 12.7 · Max. pipe length (m): 30
· Max. pipe height (m): 15 · Dimensions (WxDxH, mm): 960 x 680 x 230
· Weight: 25 kg

SUZ-KA50VAD2.TH-A - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -10 / +52°C · Operation Range - Heating: -15 / +24°C
· Sound Level - Cooling (dB(A)): 52 · Sound Level - Heating (dB(A)): 52
· Air volume - Cooling (Litre/sec): 796 · Air volume - Heating (Litre/sec): 771
· Power supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid pipe size (OD, mm): 6.35 · Gas pipe size (OD, mm): 12.7
· Max. pipe length (m): 30 · Max. pipe height (m): 30
· Dimensions (WxDxH, mm): 840 x 330 x 880 · Weight: 51 kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation




Optional Accessories

This air outlet guide is used to force air vertically out of the outdoor unit, can be used to prevent the outdoor unit from short cycling the exhaust air. It also enables the outdoor unit to be mounted closer to a wall or other outdoor units and enables them to operate at -15°C in cooling mode.
Ceiling Suspended
