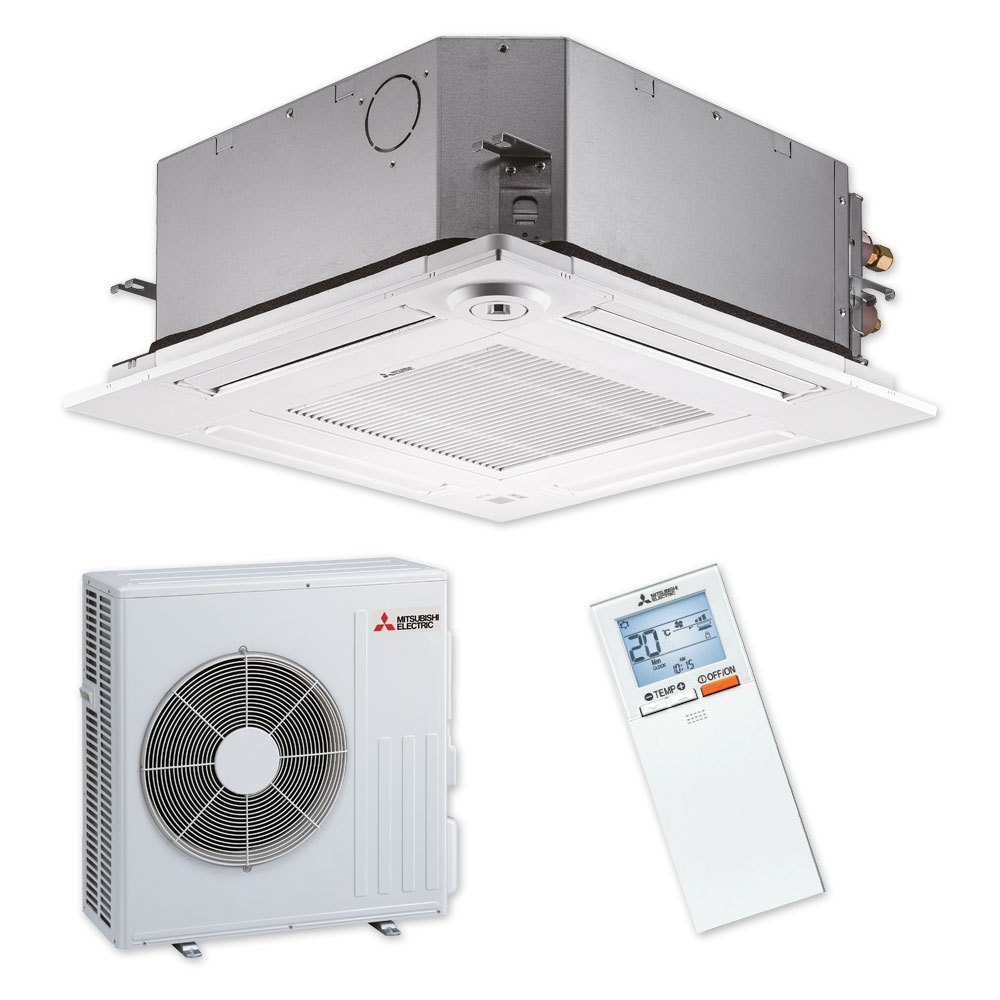

Classic SLZ50 Cassette Heat Pump

Medium Room System // SLZ-KF50VA3 (IR)

Our compact and ultra-quiet SLZ50 cassette fits neatly into your ceiling cavity leaving only the grille visible. Its low energy consumption, four way air distribution and versatile control make it ideal if you are looking to heat a moderately sized room or office space. Take control of air distribution and energy saving modes automatically by utilising the i-see sensor. This unit comes standard with a Deluxe Wireless 7-Day Programmable Controller.

Cooling Capacity5.0 kW
Heating Capacity5.0 kW

Features

3D i-See Sensor

The i-see Sensor detects the floor temperature and how many people are present in the room; automatically switching to the optimal operating mode. With eight sensors that rotate a full 360° in 3-minute intervals, the i-see Sensor detects people’s positions within the room to provide direct or indirect airflow, as preferred.

Compact Design

Our ceiling cassettes are New Zealand’s favourite. With the lightweight unit sitting in your ceiling space, only the grille is visible providing easy, discreet installation into your home or office.

Horizontal Airflow

Advanced horizontal airflow eliminates uncomfortable draughts and improves airflow control. Six different discharge angles provide a lateral airflow advantage; ensuring air is evenly distributed across your entire room.

Quiet Operation

Starting from a hushed 25dBA, our Classic Cassette Series is the perfect solution for quiet comfort; allowing you to feel the warmth, not hear it.

Air Cleaning Filtration

A built in filter removes dust and contaminants keeping air purified and deodorised. The washable, long-life filter can be used for up to 2,500 hours with simple maintenance.

Deluxe Wireless 7-Day Controller

The Deluxe Wireless Weekly Controller allows you to program up to four settings for each day of the week, so you can come home to comfort without having to manually adjust the temperature. With the ability to independently control airflow direction for each of the four vanes, a backlit screen for easy viewing and 3D i-see control, the Deluxe Wireless Weekly Controller is a great way to regulate your energy usage without compromising on comfort.

Optional Wi-Fi Control Upgrade

With the addition of award-winning Mitsubishi Electric Wi-Fi Control, you can control and monitor your heat pump from absolutely anywhere via your smartphone, tablet or online account.

Read more and try a demonstration

Features:

Specifications

SLZ-KF50VA3 - DC Inverter Compact Cassette

· Function: Cooling/Heating · Type: Single Split, Inverter
· Capacity - Cooling: 5.0 kW · Capacity - Heating: 5.0 kW
· Capacity - Cooling (min. - max.): 2.3 - 5.2 kW · Capacity - Heating (min. - max.): 1.7 - 6.5 kW
· Power Input - Cooling: 1.53 kW · Power Input - Heating: 1.58 kW
· Star rating - Cooling: 2.0 · Star rating - Heating: 2.0
· EER / COP: 3.27 / 3.16 · Previous Star rating: 2.0 / 1.5
· AEER / ACOP: 3.21 / 3.11 · Sensible - Cooling: TBC
· Dry Mode (Moisture Removal, Litre/hr): TBC
· Operation Range - Cooling: -10 / +52°C · Operation Range - Heating: -15 / +24°C
· Sound Level - Cooling (Low - High, dB(A)): 27 / 34 / 39 · Sound Level - Heating (Low - High, dB(A)): 27 / 34 / 39
· Current - Cooling [in+outdoor] (Rated / Max.): 7.0 / 12.0 A · Current - Heating [in+outdoor] (Rated / Max.): 7.16 / 12.0 A
· Air Volume - Cooling (High, Litre/sec): 192 · Air Volume - Heating (High, Litre/sec): 192
· Refrigerant: R410A · Liquid Pipe Size (OD, mm): 6.35
· Gas Pipe Size (OD, mm): 12.7 · Max. Pipe Length (m): 30
· Max. Pipe Height (m): 30 · Power Supply: 230V +/- 10% / Single Phase / 50 Hz
· Panel Dimensions (WxDxH, mm): 625 x 625 x 10 · Panel Weight: 3 kg
· Dimensions (WxDxH, mm): 570 x 570 x 245 · Weight: 15 kg

SUZ-KA50VAD2.TH-A - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -10 / +52°C · Operation Range - Heating: -15 / +24°C
· Sound Level - Cooling (dB(A)): 52 · Sound Level - Heating (dB(A)): 52
· Air Volume - Cooling (Litre/sec): 796 · Air Volume - Heating (Litre/sec): 771
· Power Supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid Pipe Size (OD, mm): 6.35 · Gas Pipe Size (OD, mm): 12.7
· Max. Pipe Length (m): 30 · Max. Pipe Height (m): 30
· Dimensions (WxDxH, mm): 840 x 330 x 880 · Weight: 51 kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]

Downloads

Support

Optional

Optional Accessories

MAC-568IF-E :: Wi-Fi Interface
The award-winning MAC-568IF-E Wi-Fi Interface connects discreetly to your heat pump’s control board and should only be installed by an authorised installer. The MAC-568IF-E Wi-Fi Interface is available on Mitsubishi Electric High Wall, Floor Mounted, and Ducted Heat Pumps, and can either be purchased as an optional upgrade at time of purchase, or retrofitted to an existing Mitsubishi Electric model.
