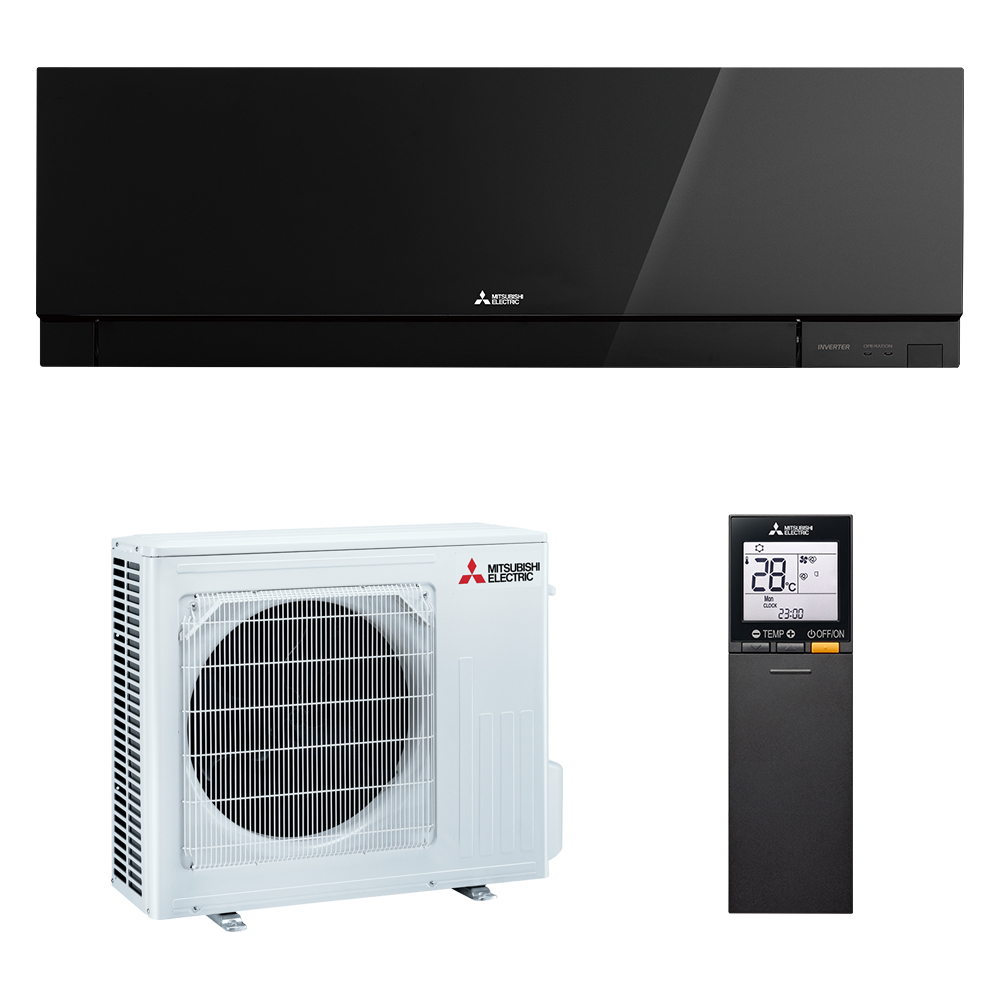

EF50 Designer Smart High Wall - Rich Black Diamond

Medium Room System // MSZ-EF50VGKDB

The EF50 Designer Smart Series features exceptional energy efficiency and Built-in Wi-Fi Control Energy Monitoring for total control over your power use. Elegant and slimline in design, if you are looking to make a bold statement, the Rich Diamond Black will feel right at home on feature walls in soft blacks, dark grey and charcoal shades.

Cooling Capacity5.0 kW
Heating Capacity5.8 kW
Select a Size
Select a Colour
Select a Controller

Features

Smart Energy Monitoring

Mitsubishi Electric Wi-Fi Heat Pump Energy Monitoring truly puts the power in your hands and gives you the visibility to make more energy efficient choices when heating and cooling your home.

Using your smartphone, tablet or desktop, you can see at a glance on a monthly, daily and even hourly basis what the indicative energy consumption (kWh) and the indicative energy costs of running your heat pump looks like in dollars ($).

Learn more

Built-In Wi-Fi Control

For the ultimate in aesthetics and heat pump control no matter where you are, this unit comes equipped with a Wi-Fi Interface inside a hidden pocket in the indoor unit.

Next Generation R32 EcoCore Technology

R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants

Super Quiet Operation

With an advanced “Silent Mode” fan setting, the range starts from a super quiet 19dBA*. Allowing you to enjoy quiet, yet powerful performance.
*EF 25 indoor on lowest fan speed in cooling mode.

Blue Fin Condenser

The heat exchanger of the outdoor has been treated with Blue Fin anti-corrosion treatment slowing the corrosion process caused by salt and sulphur in the air especially in coastal and high sulphur areas.

Nano Platinum Filter

The extra-large, washable 3D filter surface incorporates nanometre-sized platinum-ceramic particles designed to effectively collect fine dust particles, deodorise the air and eliminate bacteria at the same time. This level of advanced filtration is better at the collection of dust in comparison to conventional filters.

Reddot Design Award

The Designer Series with its distinctive contemporary, slim-line profile has been awarded the Prestigious Reddot Design Award 2015 in recognition for outstanding design quality.
The international jury only confers this sought-after seal of quality to products that set themselves apart significantly from comparable products thanks to their excellent design.

Features:

Specifications

MSZ-EF50VGKDB // EF50 Designer Smart High Wall - Rich Black Diamond System

· Function: Cooling/Heating · Type: Single Split, Inverter
Rated
· Capacity - Cooling: 5.0 kW · Capacity - Heating: 5.8 kW
· Capacity - Cooling (min. - max.): 1.4 - 5.4 kW · Capacity - Heating (min. - max.): 1.4 -7.5 kW
· Power input - Cooling: 1.55 kW · Power input - Heating: 1.56 kW
· Current - Cooling [In+Outdoor] (Rated): 6.90 A · Current - Heating [In+Outdoor] (Rated): 7.10 A
Energy Rating Residential
· ZERL - Cooling (Cold/Mixed/Hot): 3.0 / 3.0 / 3.0 · ZERL - Heating (Cold/Mixed/Hot): 2.0 / 2.5 / 2.5
· TCSPF (Cold/Mixed/Hot): 4.84 / 4.55 / 4.77 · HSPF (Cold/Mixed/Hot): 3.60 / 4.02 / 4.44
· EER / COP: 3.23 / 3.72 · AEER / ACOP: 3.22 / 3.71
Energy Rating Commercial
· TCSPF (Cold/Mixed/Hot): 5.77 / 5.33 / 5.12 · HSPF (Cold/Mixed/Hot): 3.82 / 4.18 / 4.44
Performance
· Operation Range - Cooling: -10 / +46 degC · Operation Range - Heating: -15 / +24 degC

MSZ-EF50VGKDB-A1 - Designer EF50 High Wall - Rich Black Diamond

· Function: Cooling/Heating · Type: Single Split, Inverter
Nominal Capacity
· Capacity - Cooling: 5.0 kW · Capacity - Heating: 5.8 kW
· Sound Level - Cooling (Silent - Super High, dB(A)): 30 / 33 / 36 / 40 / 43 · Sound Level - Heating (Silent - Super High, dB(A)): 30 / 33 / 37 / 43 / 49
· Air Volume - Cooling (Super High, Litre/sec): 188 · Air Volume - Heating (Super High, Litre/sec): 243
· Refrigerant: R32 · Liquid pipe size (OD, mm): 6.35
· Gas Pipe Size (OD, mm): 9.52 · Max. pipe length (m): 30
· Max. Pipe Height (m): 15 · Power supply: 230V / Single Phase / 50/60 Hz
· Dimensions (WxDxH, mm): 885 x 195 x 299 · Weight: 11.5 kg

MUZ-EF50VGD-A1 - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -10 / +46 degC · Operation Range - Heating: -15 / +24 degC
· Sound Level - Cooling (dB(A)): 52 · Sound Level - Heating (dB(A)): 52
· Air Volume - Cooling (Litre/sec): 670 · Air Volume - Heating (Litre/sec): 670
· Power Supply: Single phase, 230 V, 50/60Hz · Refrigerant: R32
· Liquid pipe size (OD, mm): 6.35 · Gas pipe size (OD, mm): 9.52
· Max. pipe length (m): 30 · Max. pipe height (m): 15
· Dimensions (WxDxH, mm): 800 x 285 x 714 · Weight: 40kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]
