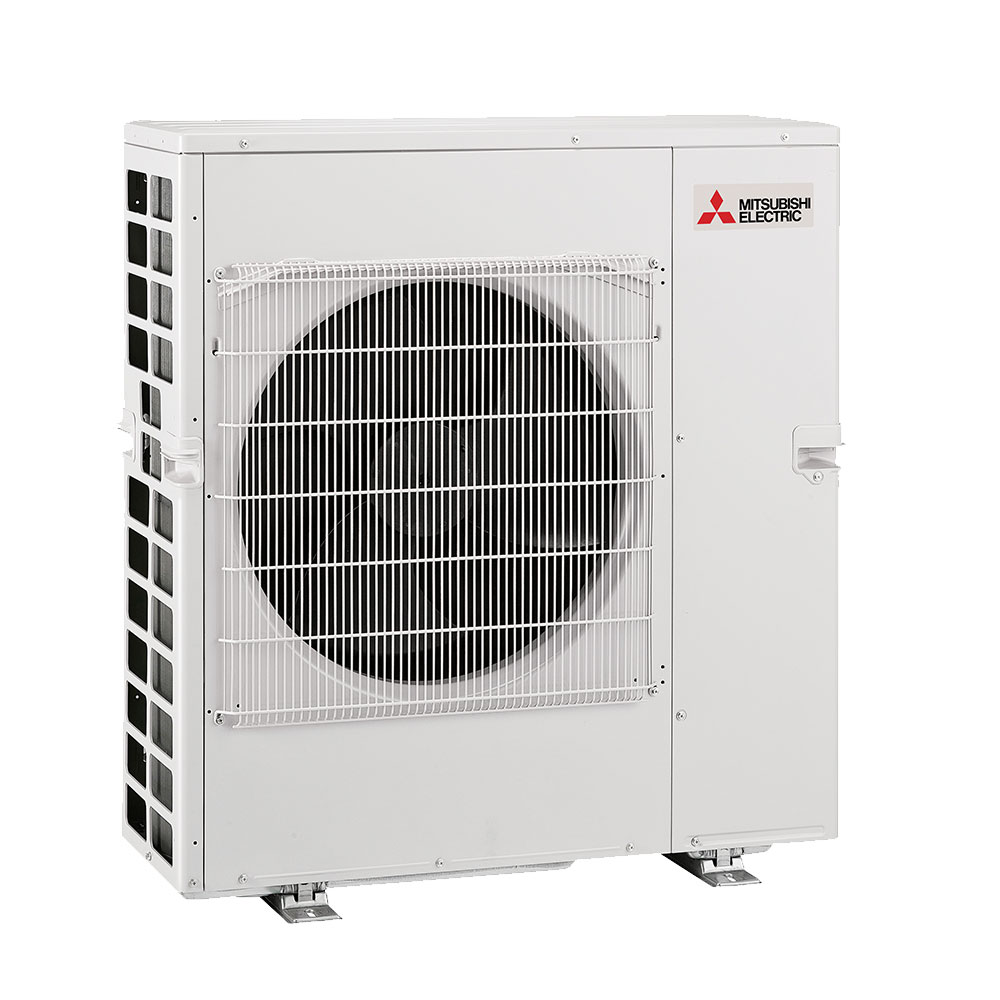

Six Port 12kW OmniCore Classic Multi Outdoor Unit

6 Port System // MXZ-6F120VGD-A1

The Six Port OmniCore Classic Multi outdoor unit allows you to connect 2-6 indoor units, up to a Class 80, with a maximum total Class of 180. Choose the indoor unit best suited to each room’s style and size, and keep your home’s exterior looking neat with only one OmniCore Multi Room outdoor unit.

Cooling Capacity12.0 kW
Heating Capacity13.2 kW
Select a Size - R32 Refrigerant
Select a Size - R410A Refrigerant

Features

Style for Each and Every Room

With our OmniCore Multi Room Systems, you have the flexibility to choose the perfect indoor unit for each room. You may want a super quiet, low capacity unit for a smaller bedroom and a stylish, higher capacity unit for the larger living room. With an OmniCore Multi Room System, you are able to connect these to just one OmniCore outdoor unit, rather than requiring one for each indoor – saving outdoor space and maintaining your home’s exterior aesthetics.

Next Generation R32 EcoCore Technology

R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants

Energy Savings

Mitsubishi Electric Inverter control distributes tempered air in the shortest period of time and ensures that the system operates at ideal capacity, minimising energy wastage.

Personalised, Individual Control

Our OmniCore Multi Room Systems allow individual control of every heat pump in your home; whether you want to increase the temperature in the kid’s bedroom before bedtime, or turn off the living room heat pump as you head out for dinner. With individual heat pump control, you can adjust the temperature to suit your comfort levels and ensure a heat pump is only operating when needed.

Quiet Operation for Peaceful Comfort

Our OmniCore Multi Room outdoor units are equipped with a Silent Mode; ensuring outdoor sound levels remain as low as possible during operation.

Come Home to Total Comfort with Wi-Fi Control

Whether you’re on your way home, running late, or even when you’re in a different country, Wi-Fi Control lets you control your OmniCore Multi Room System to suit your lifestyle. With the purchase of a Wi-Fi interface for each indoor unit, your OmniCore Multi Room System can be seamlessly controlled and monitored no matter where you are.

OmniCore Multi Room Heat Pump Systems

Specifications

· Function: Cooling/Heating · Type: Multi Split, Inverter
· Multi-Split System Compatible: Yes · Number of indoor units: 1, 2, 3, 4, 5 or 6
· Capacity - Cooling: 12.0 kW · Capacity - Heating: 13.2 kW
· Capacity - Cooling (min. - max.): 3.5 - 14.0 kW · Capacity - Heating (min. - max.): 3.5 - 16.5 kW
· Power Input - Cooling: 3.30 kW · Power Input - Heating: 3.00 kW
· EER / COP: 3.64 / 4.40 · AEER / ACOP: 3.61 / 4.37
· Operation Range - Cooling: -10 / +46 degC · Operation Range - Heating: -15 / +24 degC
· Sound Level - Cooling (dB(A)): 53 · Sound Level - Heating (dB(A)): 57
· Current - Cooling (Rated): 15.2 A · Current - Heating (Rated): 13.8 A
· Air Volume - Cooling (Litre/sec): 1050 · Air Volume - Heating (Litre/sec): 1283
· Refrigerant: R32 · Liquid Pipe Size (OD, mm): 6.35 x6
· Gas Pipe Size (OD, mm): 9.52 x5 + 12.7 x1 · Max. Pipe Length (m): 80 total / 25 each
· Max. Pipe Height (m): 15 · Power Supply: 220V, Single Phase, 60Hz / 230V, Single Phase, 50Hz
· Dimensions (WxDxH, mm): 950 x 330 x 1048 · Weight: 87 kg
  • Electrical data is for outdoor unit only.
  • Maximum length is inclusive of height differential.
  • Rating Conditions (AS/NZS 3823):
    COOLING Indoor: 27°C DB, 19°C WB.
    Outdoor: 35°C DB.
    HEATING Indoor: 20°C DB.
    Outdoor: 7°C DB, 6°C WB.
    Refrigerant piping length (one way): 5m
    Running Current and Power Input figures are for outdoor unit only.
  • Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
    EER = Energy Efficiency Ratio
    COP = Coefficient of Performance
    AEER# = Annual Energy Efficiency Ratio
    ACOP# = Annual Coefficient of Performance
    #These include standby power in the rating calculation
  • Please note:
    Final outdoor unit selection will be affected by several different factors. The combination of rooms and their location, as well as operating use, will determine which of the proposed models you require. In many cases, an outdoor unit with a lower heating capacity may be adequate where not all indoor units are required to operate in maximum heating mode simultaneously. Or, if you are considering adding more indoor units in the future, in the interests of future-proofing, you may be best to select an outdoor unit capable of providing more capacity than you currently require.

Connectable Indoors

Connect multiple indoor units to a single outdoor unit.

This system gives you the freedom to select the indoor model best suited to each and every room in your home. Multi-Split Systems are designed to allow multiple indoor units of varying capacity and type to be connected to just one outdoor unit, enhancing exterior aesthetics by reducing the number of outdoor units required.

If more than one room requires heating and cooling, a Multi-Split system may be right for you. This system allows the indoor units chosen to reflect the specific needs of each room. For example, a whisper-quiet high wall could be selected for a bedroom, while a floor console could be used to replace a fireplace in the living room. The indoor units selected will be powered by just one outdoor unit, lowering the overall capital cost and increasing the energy efficiencies achieved.

Connectable Indoor Unit Types.

Every home is different, and with so many options to choose from it is important to consider each individual room’s requirements as part of the overall OmniCore Multi Room system.

Use the following to learn more about the different indoor unit types available, as well as controller options. This information can then be used to base your preferred selection of indoor units and control systems that best suit your home.

The AP Series that features New Zealand’s quietest heat pump ever*, sets a new standard in whisper quiet, year-round comfort with advanced features such as Dual Barrier Coating that maximises energy efficient performance and options for either built-in*1 or optional Wi-Fi Control. And the AP15-20 New Zealand's smallest high walls ever*2 – perfect for above doorways and small home offices.

* AP25 indoor sound level on lowest fan setting in Heating Mode.
*1 AP15-20 Wi-Fi Control optional only.
*2 Indoor unit total volume size of 0.034m3.
The Designer Series combines exceptional energy efficiency with award-winning aesthetics. The elegant slimline design is available in Pure White, Matte Silver or Rich Black Diamond – so you can truly reflect your design personality.
The Black Diamond Series sets the new standard in personalised comfort and style. Available in three unique reflective colours; Red Diamond, White Diamond or Black Diamond. Packed with advanced features including Plasma Quad Plus Filtration, the 3D i-See Sensor for customised heating or cooling, and Dual Barrier Coating to maximise year-round energy efficient performance.
With a contemporary, slim-line design our RapidHeat Floor Consoles can be wall-recessed to dramatically reduced depth – the perfect solution for unobtrusive heating at floor level. Advanced sensors with Intuitive Control Logic Technology offer unparalleled low temperature heating performance in the shortest amount of time, all while maintaining maximum energy efficiency.
Compact, whisper quiet and highly efficient, our ceiling concealed SEZ Series units fit easily and discreetly into rooms with lowered ceilings. Optional fresh air intake provides all round refreshing comfort.
The unobtrusive PEAD Ducted Whole Home System is specifically designed for installations where ceiling space is minimal. The system is super energy efficient and whisper quiet. With only its grilles visible, it is the perfect hidden comfort solution for heating or cooling multiple rooms at the same time.
The MLZ Series with its streamlined design, airflow control features, and quiet operation from just 26dBA, is ideal for small installation spaces where one-way air distribution is needed.
Compact and ultra quiet, our range of ceiling cassette systems are equipped with four-way airflow and cutting edge control. They offer you the flexibility to keep your wall and floor space free without compromising on comfort.

OmniCore Multi Room Systems need to be specified by a Mitsubishi Electric Authorised Installer

Final selections should always be based on an in-home quote from a qualified Mitsubishi Electric Authorised Installer.
