Ducted PEA Central Heat Pumps

The PEA Series high static airflow allows air to be directed to different areas of your home or office with ease, ideal for heating or cooling a number of rooms at once. With an aesthetically pleasing ceiling installation and vast line-up of performance functions, the PEA series provides the ultimate in comfort.

Features of This Series


Heat or Cool your Whole Home with a Centralised Ducted Heat Pump

Mitsubishi Electric Ducted Heat Pump Systems are the ultimate solution for unobtrusive, whole home comfort. Designed for easy installation in ceiling or bulkhead spaces, ducted heat pumps are largely hidden from view, with only subtle grilles visible. Using concealed ducting to connect multiple rooms for heating or cooling, these systems are ideal for residential or commercial applications.

Combining with Optional Lossnay Fresh Air Ventilation

The Mitsubishi Electric Lossnay system is an energy recovery ventilation solution that can be integrated with the PEA Ducted Heat Pump. The two systems will work together to further increase energy savings while ventilating your home to remove stale air and control moisture. The Lossnay system will recover the energy from stale air to pre-heat or pre-cool incoming fresh air, reducing the amount of additional heating or cooling required. Both systems can be controlled from one central wall mounted controller for optimum ease of use. Why you need energy recovery ventilation and how it works with a ducted heat pump.

The Next Generation of R32 Mr Slim Commercial Range* is Here!

Our extended Mr Slim Range now offers a wide selection of market leading R32 Solutions in addition to a base range of R410a models. The new R32 range additions feature the latest in super-efficient and more environmentally friendly R32 refrigerant, enabling the integration of more cost savings into any HVAC design. Featuring a GWP of 675, R32 refrigerant is highly energy efficient and with a volumetric capacity that is around 20% higher compared to R410A, system refrigerant volumes are significantly lower. Furthermore the new R32 models blend a host of outstanding features with a premium quality, sophisticated design. Offering high efficiencies, advanced control options and extended pipe runs, the range is extremely flexible and cost effective.

Benefits of R32 compared to R410A

  • 66% lower GWP of 675
  • More environmentally friendly
  • 20% less refrigerant volume requirement
  • Overall higher systems efficiency
  • Easy to handle, reuse and recycle

*When connected to PUZ-ZM71 and PUZ-M/ZM100~140 R32 Outdoor units

Replace Technology has been Incorporated into the R32 Mr Slim P-Series*

Replacing an R22 or an R410a system with an R32 equivalent system while retaining the existing pipe work can be easily achieved while keeping the product warranty intact. HAB oil and scroll compressor technology improvements allows this unique feature to apply to this product.

*When connected to PUZ-ZM71 and PUZ-M/ZM100~140 R32 Outdoor units

Unobtrusive, Whole Home Heating

Our ducted systems are specifically designed for installation in ceiling spaces. Ideal for large residences or offices, ducted units are the ultimate hidden heating and cooling solution with only grilles visible.

Easy Installation

Versatile and easy installation is possible; for example, it is possible to adjust the distance between the air-intake and air-outlet vents to create the optimal airflow configuration.

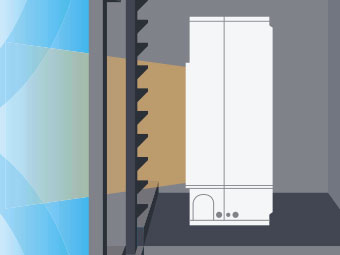

Ideal Airflow

The flexible duct design and high-pressure of our ducted systems increase variation in airflow options ensuring the system operates in a way that best suits virtually all room layouts.

Grille Options

Mitsubishi Electric Ducted Heat Pump Systems allow for a wide range of grille options to best suit your installation needs. From ceiling and wall installations, to under floor grille options, talk to your installer about what’s right for you.

Deluxe PAR Weekly Controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.

Click here to find out more

Wi-Fi Control Upgrade

With the addition of award-winning Mitsubishi Electric Wi-Fi Control, you can control and monitor your heat pump from absolutely anywhere via your smartphone, tablet or online account.

Read more and try a demonstration

Wi-Fi Zone Control Upgrade

Optional Wi-Fi Zone Control will further enhance your Mitsubishi Electric Ducted Central Heat Pump System by enabling you to program and control either up to 4 or up to 8 individual zones; providing heating or cooling only to the rooms that require it. Built in sensor functions monitor room temperature, brightness and occupancy, maximising energy efficient use of the whole system throughout the home or just where it is needed.

Click here to find out more

Ducted PEA Series
