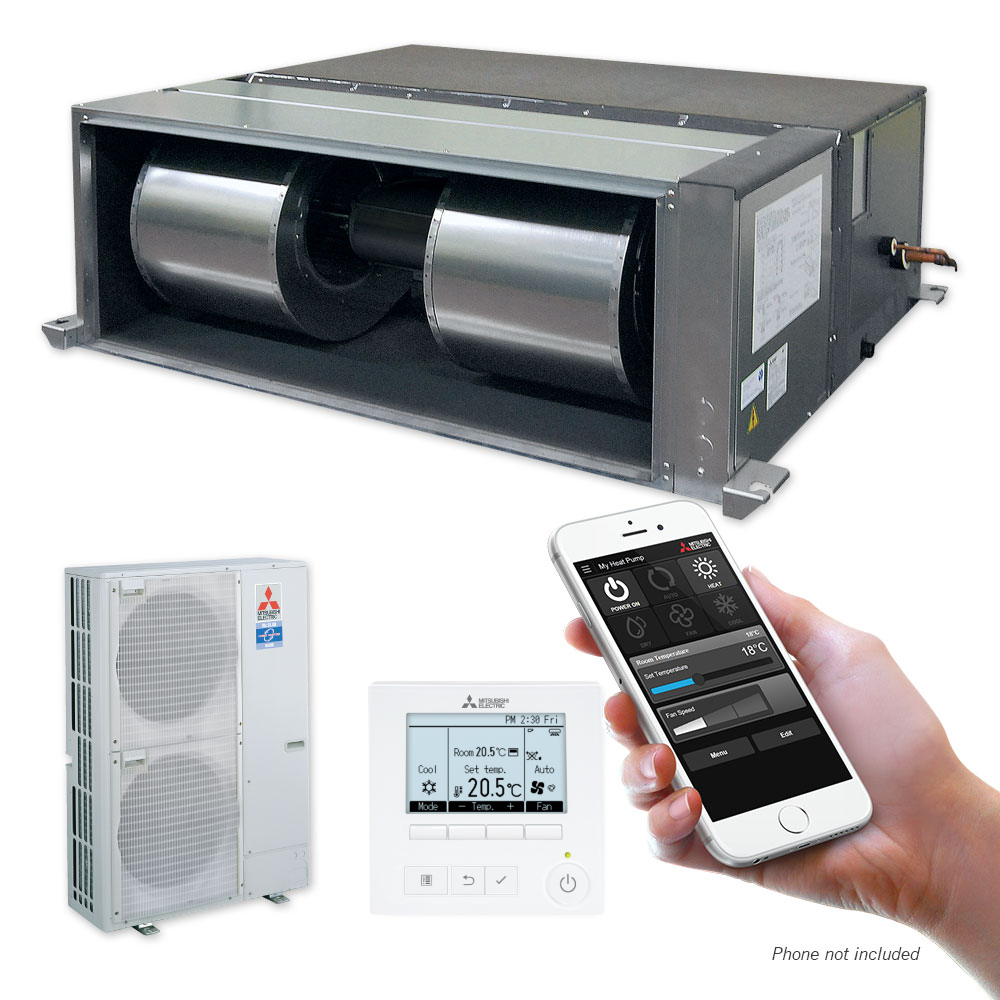

Ducted PEA200 Heat Pump with Wi-Fi

Large Room System // PEA-RP200WJA + MAC-568IF-E

The ducted PEA-RP200’s high static airflow allows air to be directed to different areas of your home or office with ease. This unit is ideal for heating or cooling a large number of rooms at once. Includes a Deluxe PAR wired Controller with backlit LCD display and user-friendly menus. The Wi-Fi range comes equipped with a Wi-Fi Control Interface (supplied separately) allows you to control and monitor your heat pump from anywhere via your smartphone, tablet or online account.

Cooling Capacity18.9 kW
Heating Capacity22.4 kW

Features

Unobtrusive, Whole Home Heating

Our ducted systems are specifically designed for installation in ceiling spaces. Ideal for large residences or offices, ducted units are the ultimate hidden heating and cooling solution with only grilles visible.

Easy Installation

Versatile and easy installation is possible; for example, it is possible to adjust the distance between the air-intake and air-outlet vents to create the optimal airflow configuration.

Ideal Airflow

The flexible duct design and high-pressure of our ducted systems increase variation in airflow options ensuring the system operates in a way that best suits virtually all room layouts.

Includes the Wi-Fi Control Interface

Locally developed to suit the busy lifestyles of New Zealanders, award-winning Wi-Fi Control unlocks the door to smarter heating. This innovative technology allows you to control or monitor your heat pump from anywhere via your smartphone, tablet or online account. Wi-Fi Control allows you to control your system remotely, develop operating rules, and set minimum and maximum room temperatures for healthy and comfortable living.

Read more and try a demonstration

Deluxe PAR Weekly Controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation.
You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.

Click here to find out more

Optional Zone Controller Upgrade

Transform your ducted system. With the ability to control up to 8 zones, expanded functionality and interaction, intuitive airflow control, and temperature, occupancy and brightness sensors – the PAC-ZC Zone Controller brings intuitive, yet simple control to a whole new level.

Click here for optional Zone Controllers

Specifications

PEA-RP200WJA - Power Inverter Ducted / Ceiling-Concealed

· Function: Cooling/Heating · Type: Single Split, Inverter
· Capacity - Cooling: 18.9 kW · Capacity - Heating: 22.4 kW
· Capacity - Cooling (min. - max.): 9.0 -22.4 kW · Capacity - Heating (min. - max.): 9.5 - 25.0 kW
· Power Input - Cooling: 5.66 kW · Power Input - Heating: 6.17 kW
· EER / COP: 3.28 / 3.59 · AEER / ACOP: 3.12 / 3.43
· Operation Range - Cooling: -5 (-15*) / +46 degC · Operation Range - Heating: -20 / +21 degC
· Airflow (Lo-Hi, Litre/sec): 833 / 1017 / 1200 · Sound Level (Lo-Hi, dB(A)): 38 - 41 - 44
· Current Indoor - Cooling (Running): 2.65 A · Current Indoor - Heating (Running): 2.65 A
· Power Supply: 230V / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid Pipe Size (OD, mm): 9.52 · Gas Pipe Size (OD, mm): 25.4
· Max. Pipe Length (m): 75 · Max. Pipe Height (m): 30
· Dimensions (WxDxH, mm): 1370 x 1120 x 470 · Weight: 108 kg
· External Static Pressure: 60-75-100-150Pa · Note: Capacity ratings are based on the deluxe outdoor unit PUHZ-RP200YKA2 only.

PUHZ-RP200YKA2R1-A - DC Deluxe Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Power Inverter
· Capacity - Cooling: 18.9kW · Capacity - Heating: 22.4kW
· Capacity - Cooling (min. - max.): 9.0 - 22.4kW · Capacity - Heating (min. - max.): 9.5 - 25.0kW
· Operation Range - Cooling: -5 (-15*) / +46°C · Operation Range - Heating: -20 / +21°C
· Sound Level - Cooling (dB(A)): 58 · Sound Level - Heating (dB(A)): 59
· Airflow (Litre/sec): 2330 · Current - Cooling Outdoor (Rated / Max.): TBA / 19 A
· Current - Heating Outdoor (Rated / Max.): TBA / 19 A · Power Supply: 400V /Three Phase / 50 Hz
· Refrigerant: R410A · Liquid Pipe Size (OD, mm): 9.52
· Gas Pipe Size (OD, mm): 25.4 · Max. Pipe Length (m): 75
· Max. Pipe Height (m): 30 · Dimensions (WxDxH, mm): 1050 x 330(+30) x 1338
· Weight: 136 kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]

Downloads

Support

Optional

Optional Accessories

The PAC-ZC40L-E Zone Controller brings to fruition expanded functionality and interaction to realise even greater energy savings. With the ability to control up to 4 zones, and equipped with Intuitve Airflow Control and three built in sensor functions (temperature, occupancy, brightness), the PAC-ZC40L-E Zone Controller brings intuitive, yet simple control to a whole new level. The PAC-ZC40L-E Zone Controller is compatible with 24V dampers only.
The PAC-ZC40H-E Zone Controller brings to fruition expanded functionality and interaction to realise even greater energy savings. With the ability to control up to 4 zones, and equipped with Intuitve Airflow Control and three built in sensor functions (temperature, occupancy, brightness), the PAC-ZC40H-E Zone Controller brings intuitive, yet simple control to a whole new level. The PAC-ZC40H-E Zone Controller is compatible with 240V dampers only.
The PAC-ZC80L-E Zone Controller brings to fruition expanded functionality and interaction to realise even greater energy savings. With the ability to control up to 8 zones, and equipped with Intuitve Airflow Control and three built in sensor functions (temperature, occupancy, brightness), the PAC-ZC80L-E Zone Controller brings intuitive, yet simple control to a whole new level. The PAC-ZC80L-E Zone Controller is compatible with 24V dampers only.
The PAC-ZC80H-E Zone Controller brings to fruition expanded functionality and interaction to realise even greater energy savings. With the ability to control up to 8 zones, and equipped with Intuitve Airflow Control and three built in sensor functions (temperature, occupancy, brightness), the PAC-ZC80H-E Zone Controller brings intuitive, yet simple control to a whole new level. The PAC-ZC80H-E Zone Controller is compatible with 240V dampers only.
